5. Unit installation
Installer reference guide / Mono tank integrated type 35

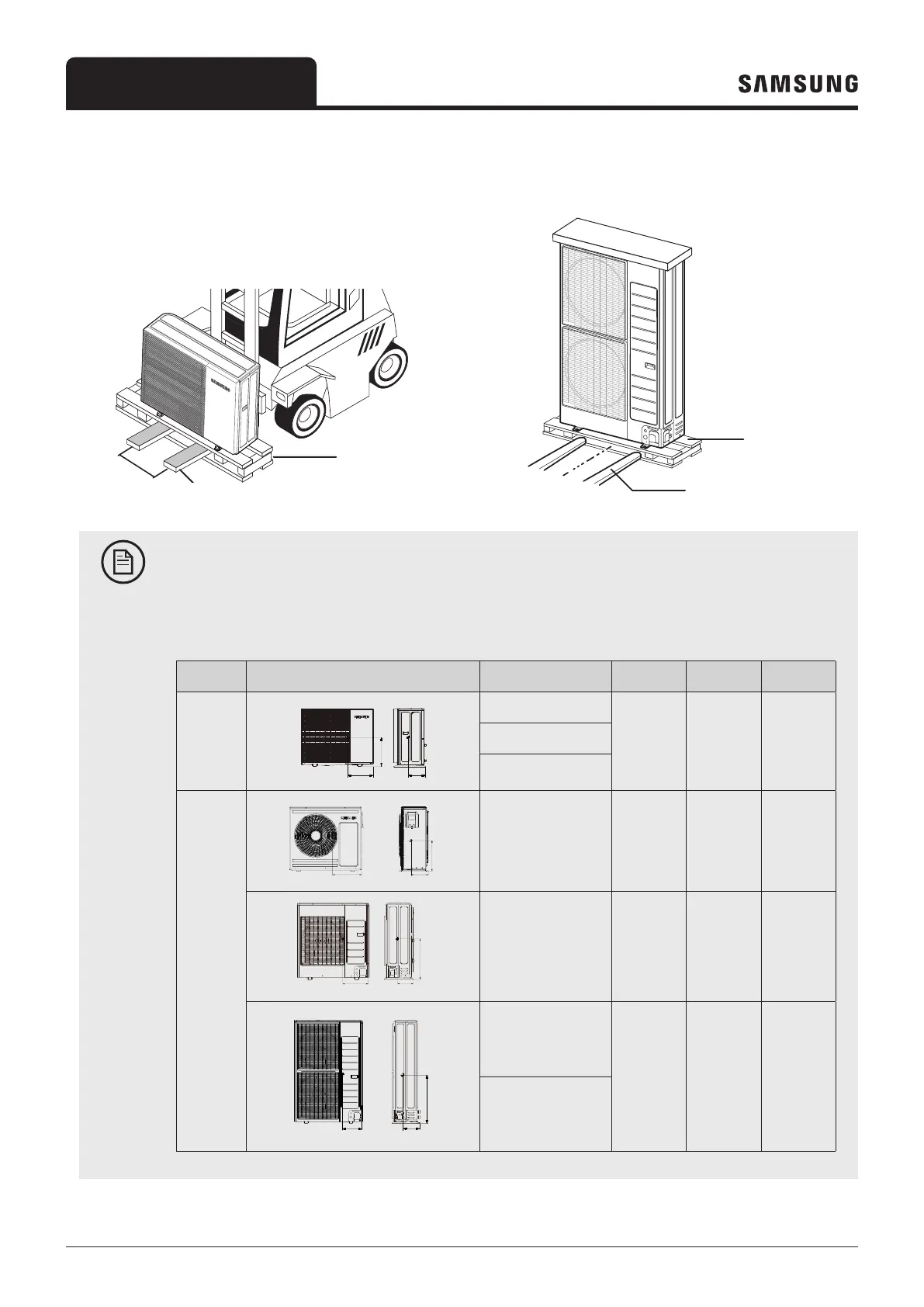

Moving the outdoor unit with a forklift
• Insert the fork into the wooden pallet at the bottom of the outdoor unit carefully. Be careful that the fork does
not damage the outdoor unit. Operating a forklift may require special certification or training according to local
regulations.
Wooden pallet
Forklift
1,050
Wooden pallet
Fork lift
NOTE
• When looking at the product from the front, there is a center of gravity right from the middle of the
product. Refer to the center of gravity mark attached to the product.
Units : mm
Unit Type Model A B C
Mono HT
Quiet
A C
B
AE080BXYD**
470 214 361
AE120BXYD**
AE140BXYD**
Mono
A C
B
A C
B
AE050RXYDEG 360 350 200
A C
B
AE080RXYD** 360 445 196
A C
B
AE120RXYD**
363 653 216
AE160RXYD**
