7. Electrical installation
Installer reference guide / Mono tank integrated type 117

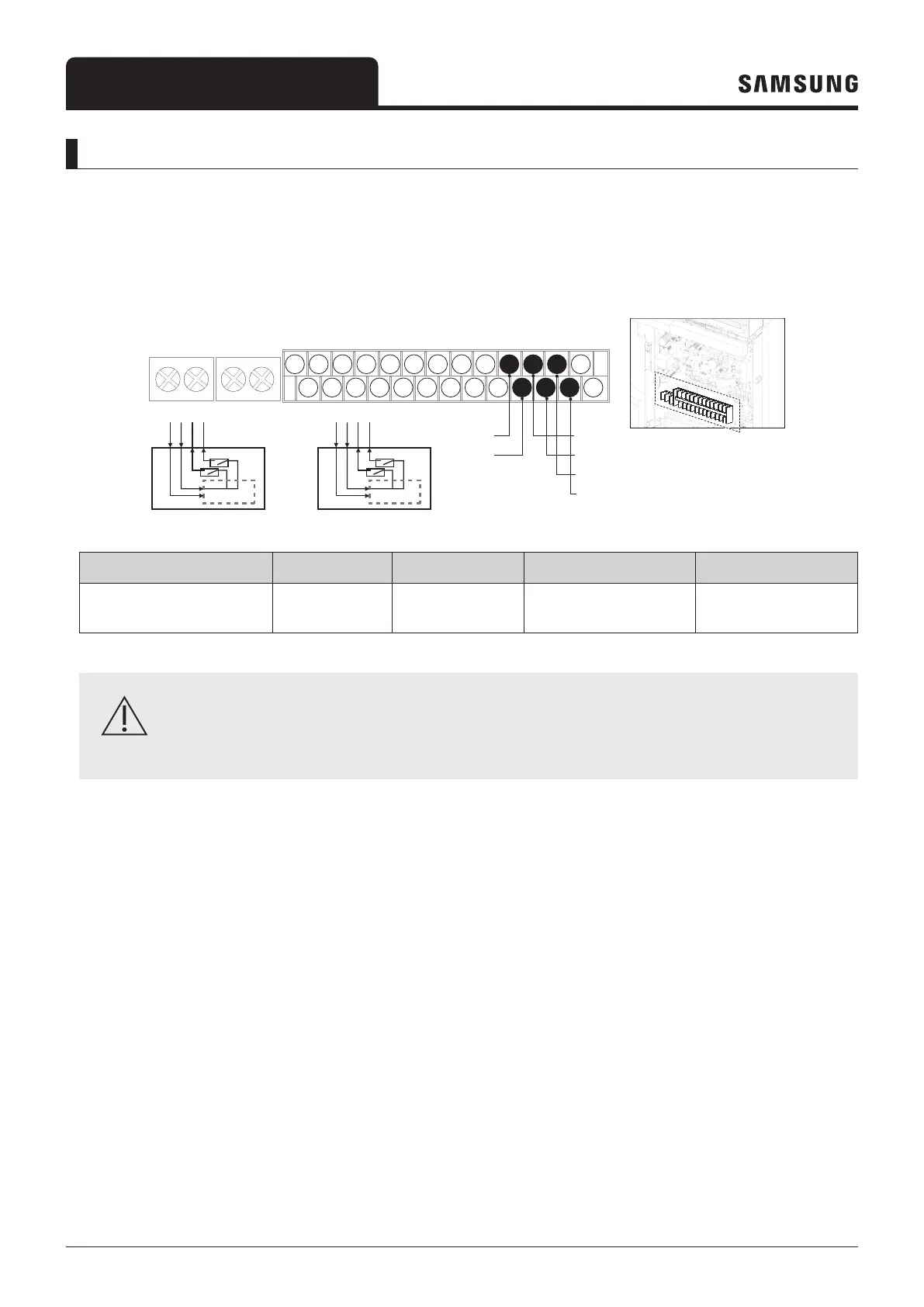

To connect external inputs for zone control via thermostats (B19/B20/B21/B22/B23/B24)
• Make sure to wire the thermostats for the zone control to the correct terminals (zone1/ zone2, cooling / heating).
• Make sure the external thermostat is rated for 220-240V~ input.
• The input signal is a switched Live (L). Zone2 has a priority over Zone1. The mode of operation (cooling or heating) will
be determined by Zone2 (when two signals are simultaneously applied).
B2 B6 B10 B14 B18 B22B4 B8 B12 B16 B20 B24 B26
B1 B5 B9 B13 B17 B21B3 B7 B11 B15 B19 B23 B25
THERMOSTAT01_COOLING (Z1)
THERMOSTAT01_HEATING (Z1)
THERMOSTAT02_COOLING (Z2)
THERMOSTAT02_HEATING (Z2)
Neutral (N)
Live (L)
N L
C1
H1
N L
C2
H2
THERMOSTAT 2THERMOSTAT 1
Description No. of wires Max. current Thickness Remark
Room Thermostat 4 22mA
>0.75mm², H05RN-F or
HO7RH-F
Field supply
(220-240V~, Input)
CAUTION
When both cooling and heating input signals are applied for a single zone, the product will not operate.
To Next Page
