6. Piping installation
Installer reference guide / Mono tank integrated type 66
NOTE
• To avoid damage to the surroundings due to water leakage, it is recommended to close the domestic cold
water inlet shut‑off valves during periods of absence.
• It is recommended to install shut‑off valves to domestic cold water in and DHW out connections. These
shut‑off valves are field supplied.

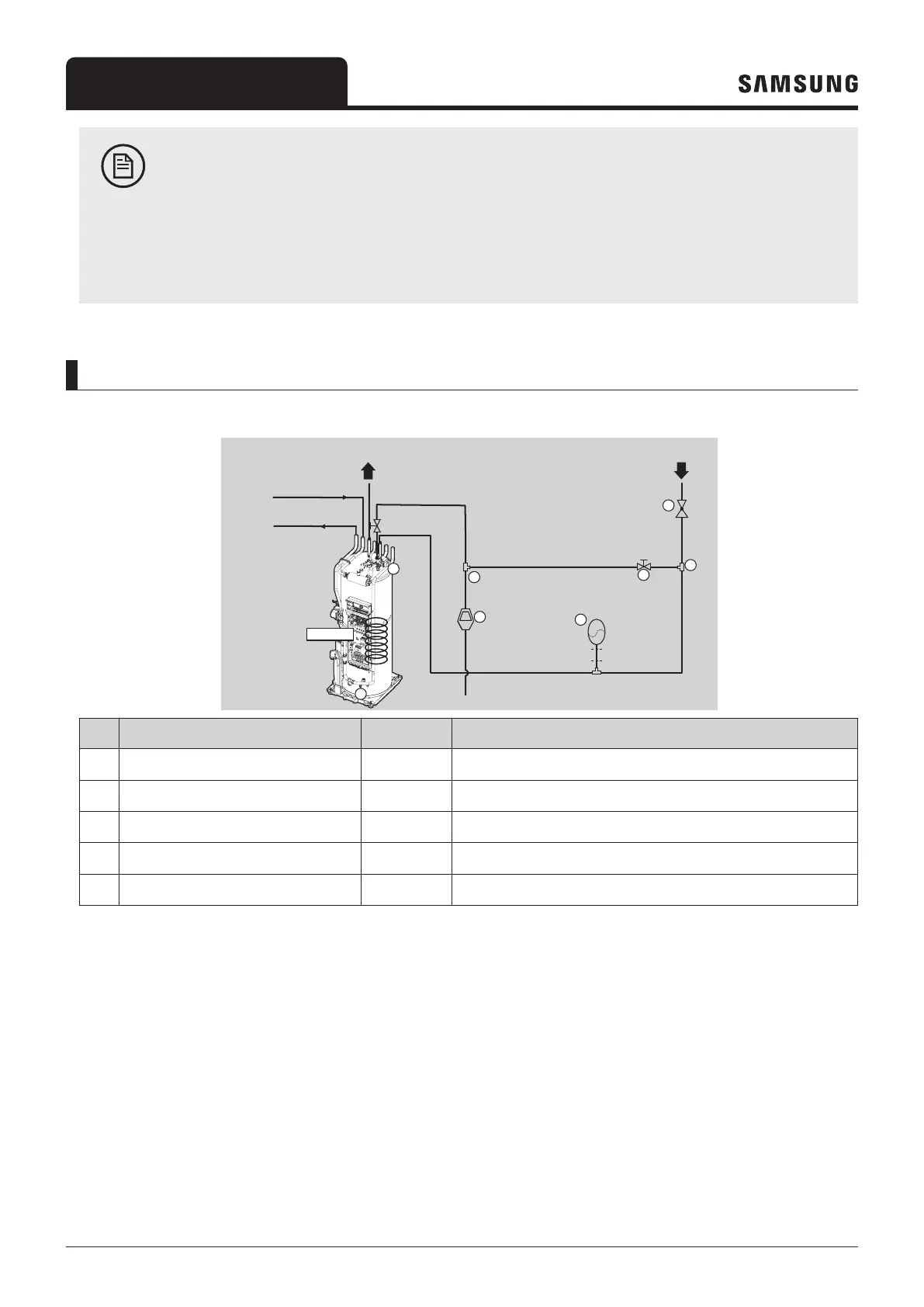

Piping diagram
(
*
)
(
*
)
(
*
)
(
*
)
6
8
5
7
4
1
3
3
2
Sanitary warm water Tank Diagram(Field Scope)
WATER MAIN INWATER MAIN OUT
TPRV
Tank Temp
Heat pump in
Heat pump out
[MONO]
No. Note No. Note
①
3 way diverting valve
⑥
T‑Joint
②
Drain Valve
⑦
Expansion relief Valve
③
T‑Joint
⑧
Pressure reducing valve with integrated check valve and strainer
④
Tundish Tank Temp Temperature sensor for DHW tank
⑤
Expansion vessel
※
The table above contains the different components of the functional diagrams.
For the reliable performance and durability, all parts as listed below ,including a relief valve, an expansion vessel, a drain
valve and pressure reducing valve , should be installed according to each national or regional standards. They are not
supplied by Samsung.
• Pressure relief valve
• Expansion vessel
• Drain valve
• Tundish
• Expansion relief valve
• Pressure reducing valve
