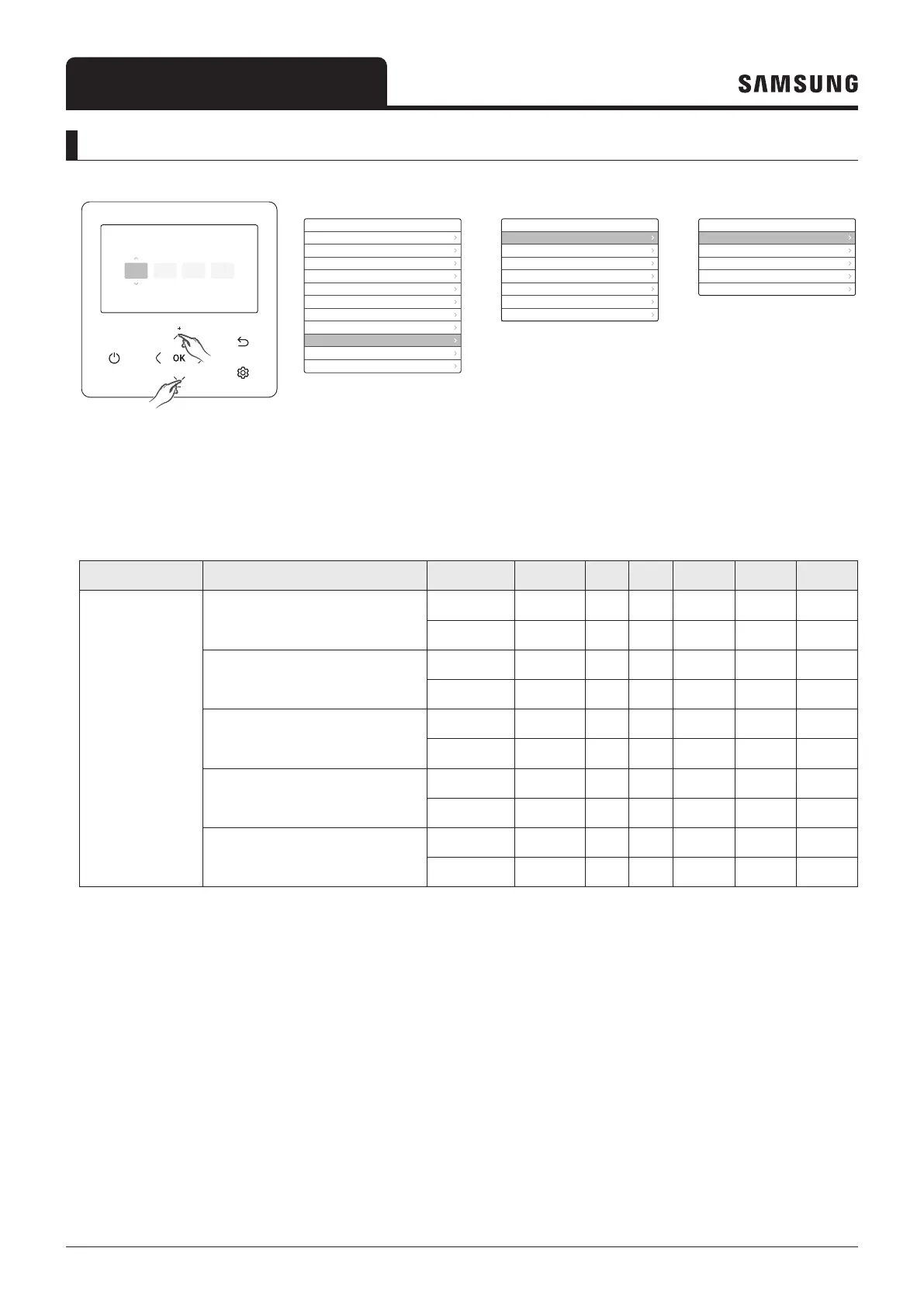

Installer reference guide / Mono tank integrated type 130
Menu 10** : Remote Controller
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
10** | Remote Controller
101* | Water Out Temp. for Cool
102* | Room Temp. for Cool
103* | Water Out Temp. for Heat
104* | Room Temp. for Heat
105* | DHW Tank Temp.
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
20** | Water Law
201* | Outdoor Temp. for Water Law
202* | Water Out Temp. for WL1 Heat
203* | Water Out Temp. for WL2 Heat
204* | Heating Water Law for Auto Mode
205* | Outdoor Temp. for Water Law
206* | Water Out Temp. for WL1 Cool
207* | Water Out Temp. for WL2 Cool
0
Please enter your PASSWORD
Service Mode
Energy Generation Energy Consumption
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
30** | DHW
301* | Domestic Hot Water Tank
302* | Heat Pump
303* | Booster Heat
304* | Disinfection
305* | Forced DHW Operation
306* | Solar Panel/DHW Thermostat
307* | Direction of 3Way Valve
308* | Energy Metering
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
50** | Others
501* | Outing
502* | DHW Saving
503* | TDM Variable (TDM Product only)
504* | Power Peak Control
505* | Frequency Ratio Control
506* | Heat/DHW Capa. Ratio
508* | PV Control
509* | Smart Grid Control
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
40** | Heat
401* | Heat Pump
402* | Backup Heater
403* | Backup Boiler
404* | Mixing Valve
405* | Inverter Pump
406* | Zone Control
2019
Generation 1000hr
60
Hr
40
20
0
2019
Usage 500kWh | Target 500kWh
60
kWh
40
20
0
Jan. Feb. Mar. A pr. May. Jun. Jul. Aug. Sep. Oct. Nov. (month)Jan. Feb. Ma r. Apr. May. Jun. Jul. Aug. Sep. Oct. Nov. (month)
It is possible to change the upper and lower temperature limits for each operation mode of heating (Water Outlet, Room),
cooling (Water Outlet, Room) and DHW (Tank), of the wired remote controller.
• The remote controller setting range and default settings:
Main Menu(FSV) Sub Menu Function Description FSV Step Unit Default Min. Max.
Remote Controller
Setting Range
FSV 10**
Water Out Temp. for Cooling
Max 1011 1 25 18 25
Min 1012 1 16 5 18
Room Temp. for Cooling
Max 1021 1 30 28 30
Min 1022 1 18 18 28
Water Out Temp. for Heating
Max 1031 1 70 37 70
Min 1032 1 25 15 37
Room Temp. for Heating
Max 1041 1 30 18 30
Min 1042 1 16 16 18
DHW tank Temp.
Max 1051 1 55 50 70
Min 1052 1 40 30 40
Space Cooling Setting (101* Water out Temp. for cooling or 102* Room Temp. for Cool)
•
–
for cooling.
•
–
for cooling.
Tip: setting a higher room set point for cooling may result in saving energy and reducing the energy costs.
