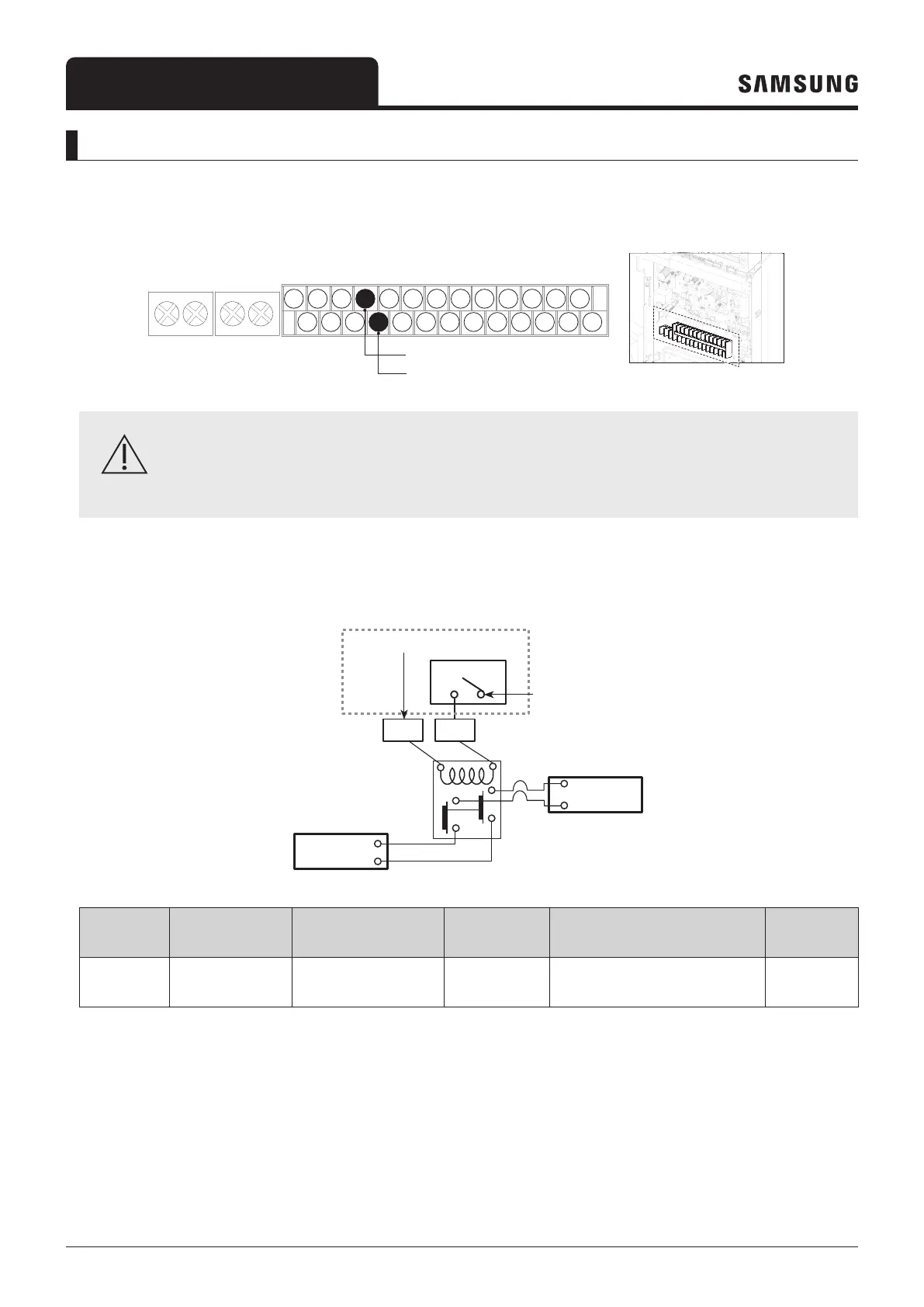

7. Electrical installation
Installer reference guide / Mono tank integrated type 114
Additional pump (B7/B8)
• When connecting the additional pump, a relays must be used, in order to prevent electrical damage to the PCB by over
current. This terminal is rated for 0.5A maximum allowable current only.
B2 B6 B10 B14 B18 B22B4 B8 B12 B16 B20 B24 B26
B1 B5 B9 B13 B17 B21B3 B7 B11 B15 B19 B23 B25
Neutral
Live
CAUTION
• The terminal of this product is for the additional pump and the max allowable current is 0.5A
• The maximum allowed quantity of additional pumps is one.
• Maximum allowed power consumption is 100W.
L
N
M/C
PCB
Terminal block
Neutral additional pump
Live additional pump
B7 B8
Pump
Power
Terminal No. Function Input/output
Min./Max.
current
Description Remark
B7/B8
Additional AC
Water Pump
AC 230V output -/100mA
Additional pump (for built-in pump
Option
