Installer reference guide / Mono tank integrated type 65
Tank
integrated
hydro unit
No. Name Size Connections
①
Outdoor outlet ø28, T1.2, Copper
Crimp pipe fitting or
welding
②
Outdoor inlet ø28, T1.2, Copper
③
Hot water outlet ø22, T1.0, Copper
④
Secondary return (option) ø22, T1.0, Copper
⑤
Cold water inlet ø22, T1.0, Copper
⑥
Space heating/cooling outlet ø28, T1.2, Copper
⑦
Space heating/cooling inlet ø28, T1.2, Copper

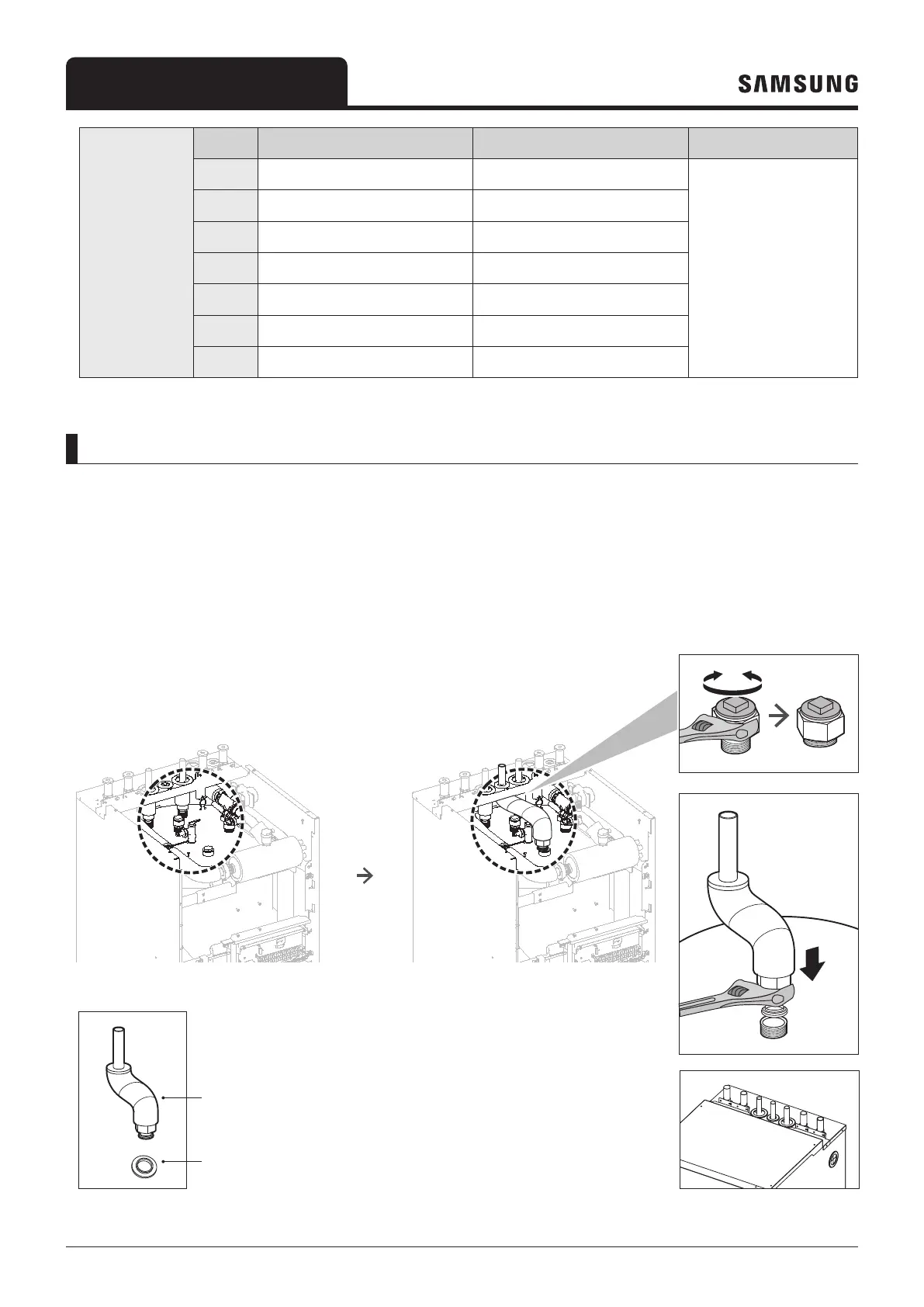

Connecting the secondary return piping (only 260l)
Prerequisite: Only required if you need recirculation in your system.
1 Remove the top panel from the unit.
2 Remove the stop by turning the screw on the top of the unit.
The recirculation connector is placed below the hole.
3
Route the recirculation piping through the grommet and connect it to the recirculation connector.
4 Reattach the top panel.
②
③
④
①
Tube secondary (1)
(only for 260 L Tank model)
Gasket (1)
(only for 260 L Tank model)
