12. Technical data
Installer reference guide / Mono tank integrated type 207

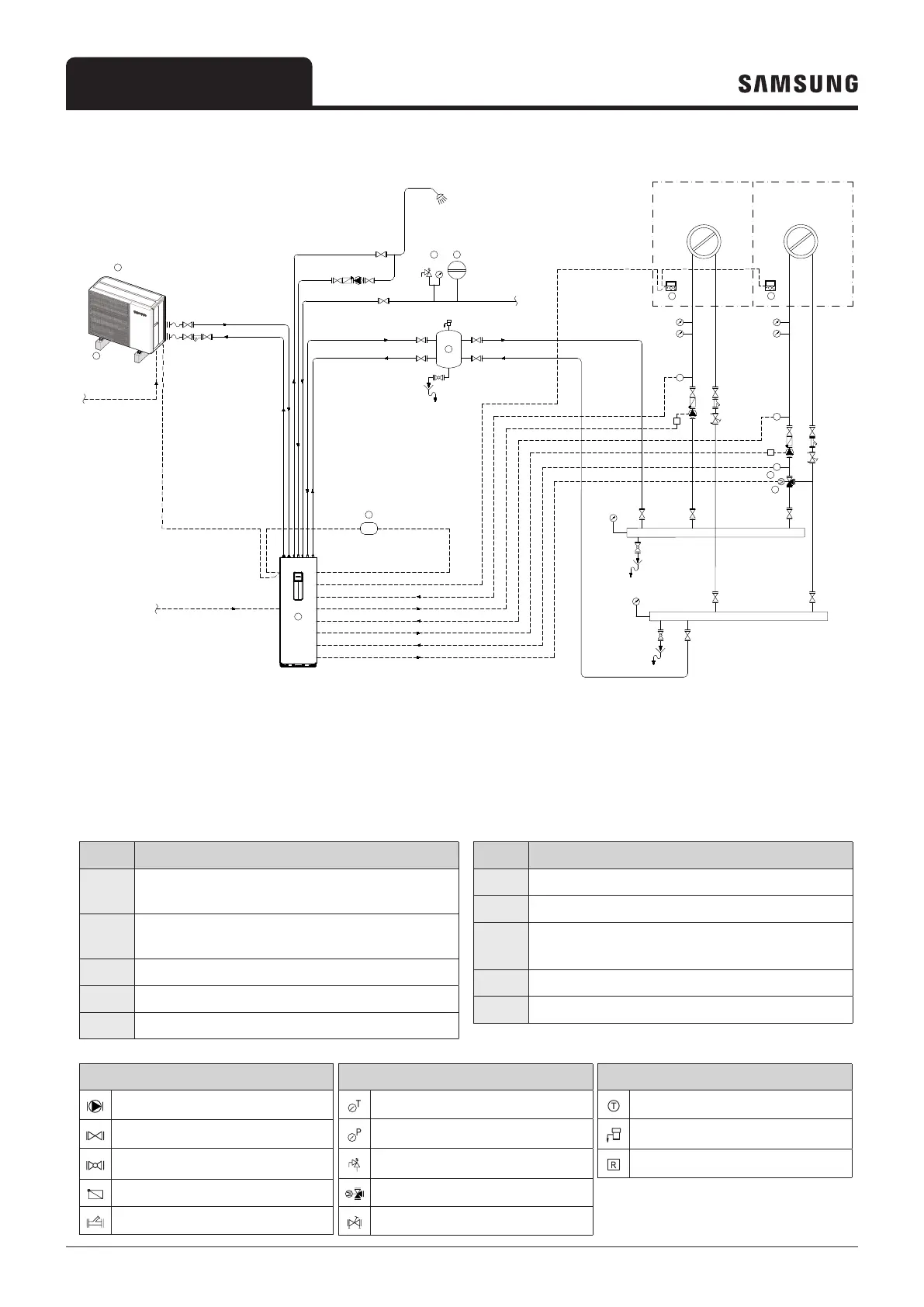

12.3 Piping & Wiring diagram
P
P
FCU / RADIATOR
HEATING
UNDERFLOOR
HEATING
5
ZONE 1
ZONE 2
c)
OK
+
-
OK
+
T
P
T
P
DHW
COLD WATER
CONNECTION
76
P
TB-A
Communication F1/F2
Ø 28 mm
Ø 28 mm
Ø 22 mm
Ø 22 mm
Wi-Fi
2
Ø 28 mm
Ø 28 mm
TB-C
Power Supply
a)
9
T
T
T
8
TB-C V1/V2 (12V Power)
TB-C Communication F3/F4
B2/B3/B5 (AC 230V, 22mA)
B10/B11
e)
(AC 230V, 22mA)
B14/B15
e)
(AC 230V, 22mA)
17/18
19/20
3
4
4
CNS045, BLU
b)
R
R
1
10
Power Supply
a)
(380~415 V, 50 Hz, Ф3)
(380~415 V, 50 Hz, Ф3)
-
b
a) Samsung EHS ClimateHub Mono is available in 1-phase and 3-phase version.
b) Mixing valve temperature sensor for floor heating comes with tank integrated hydro unit (15 m red cable, blue connector on PBA).
c)
When both zones are simultaneously Thermo On, the operation is performed based on Zone 2. Set the zone with the higher set temperature to Zone 2.
d) Air vent included in tank integrated hydro unit. In case that the water piping would be located in a higher position than the air vent of the tank
integrated hydro unit, it is necessary to add additional one at the highest position of water circuit.
e) Pumps for radiator and floor heating can be regulated (on/off) by tank integrated hydro unit (terminals B10/B11 and B14/B15) or their own regulators.
f) 200 L tank integrated hydro unit has six connection pipes (water inlet/outlet, space heating inlet/outlet and DHW inlet/outlet)
while 260 L model has additional pipe for DHW circulation.
No. Legend
➀
Samsung EHS ClimateHub Split outdoor unit
(AE160RXYDGG/EU)
➁
Samsung Mono Tank Integrated Hydro unit
(AE260RNWMGG/EU)
f)
➂
Samsung Wi-Fi Kit (MIM-H04EN)
➃
Samsung Wired Remote Controller (MWR-WW10N)
➄
Balancing vessel (Decoupler)
No. Legend
➅
Safety group (Safety valve, Manometer)
➆
Expansion vessel
➇
3way mixing valve for floor heating
(in case of combination with radiators)
➈
Mixing valve temperature sensor
b)
➉
Vibro-isolating mounting bases
Symbols
Circulation pump
Shut off valve
Ball valve
Check valve
Strainer
Symbols
Temperature gauge
Pressure gauge
Safety valve
3way mixing valve
Regulation valve
Symbols
Temperature sensor
Air vent (apply when necessary)
d)
Relay
