12.2 Indoor unit main components

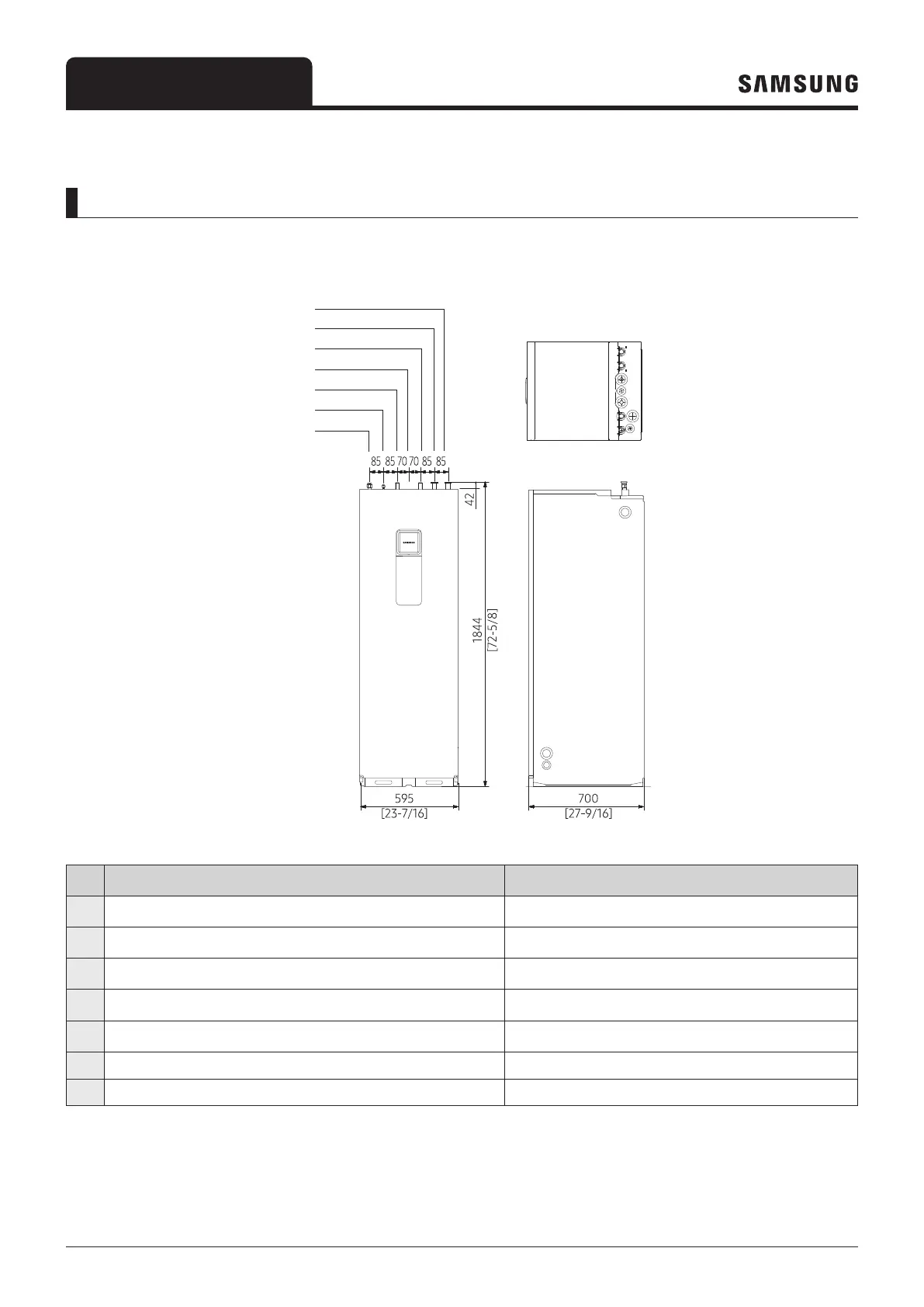

Dimensions
• Tank integrated hydro unit
➀
➃
➁
➄
➂
➅
➆
No. Part Description
➀
Mono outdoor outlet Ø28, T1.2
➁
Mono outdoor inlet Ø28, T1.2
➂
Hot water outlet Ø22, T1.0
➃
Secondary return (260L option) Ø22, T1.0
➄
Cold water inlet Ø22, T1.0
➅
Space heating outlet Ø28, T1.2
➆
Space heating inlet Ø28, T1.2
