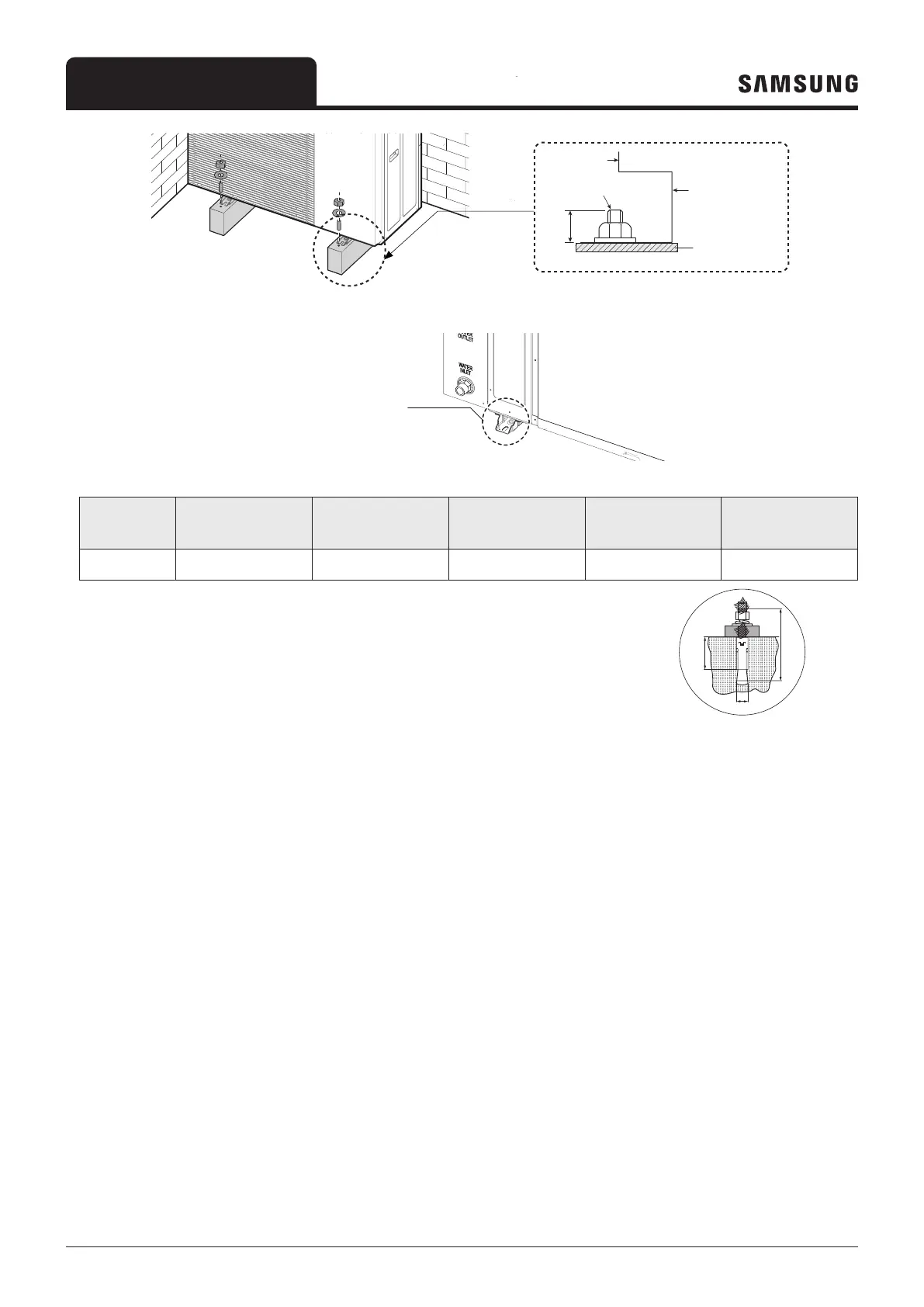

Installer reference guide / Mono tank integrated type 37
20 mm
Outdoor unit
Anchor bolt
Outdoor unit support
Base surface
M124
x
Designed to cut off residual
vibration from outdoor unit to rack.
(not supplied with product)
Size
Diameter
of drill bit (a)
Anchor
length (b)
Sleeve
length (c)
Insert
depth
Fastening
torque
Ø 10 14 mm 75 mm 40 mm 50 mm 30 N·m
※
Use the anchor bolts and nuts that is zinc plated or made of STS material.
Regular anchor bolts or nuts may get damaged by corrosion.
a
m
c
b
40mm 75mm
14mm
