7. Electrical installation
Installer reference guide / Mono tank integrated type 111

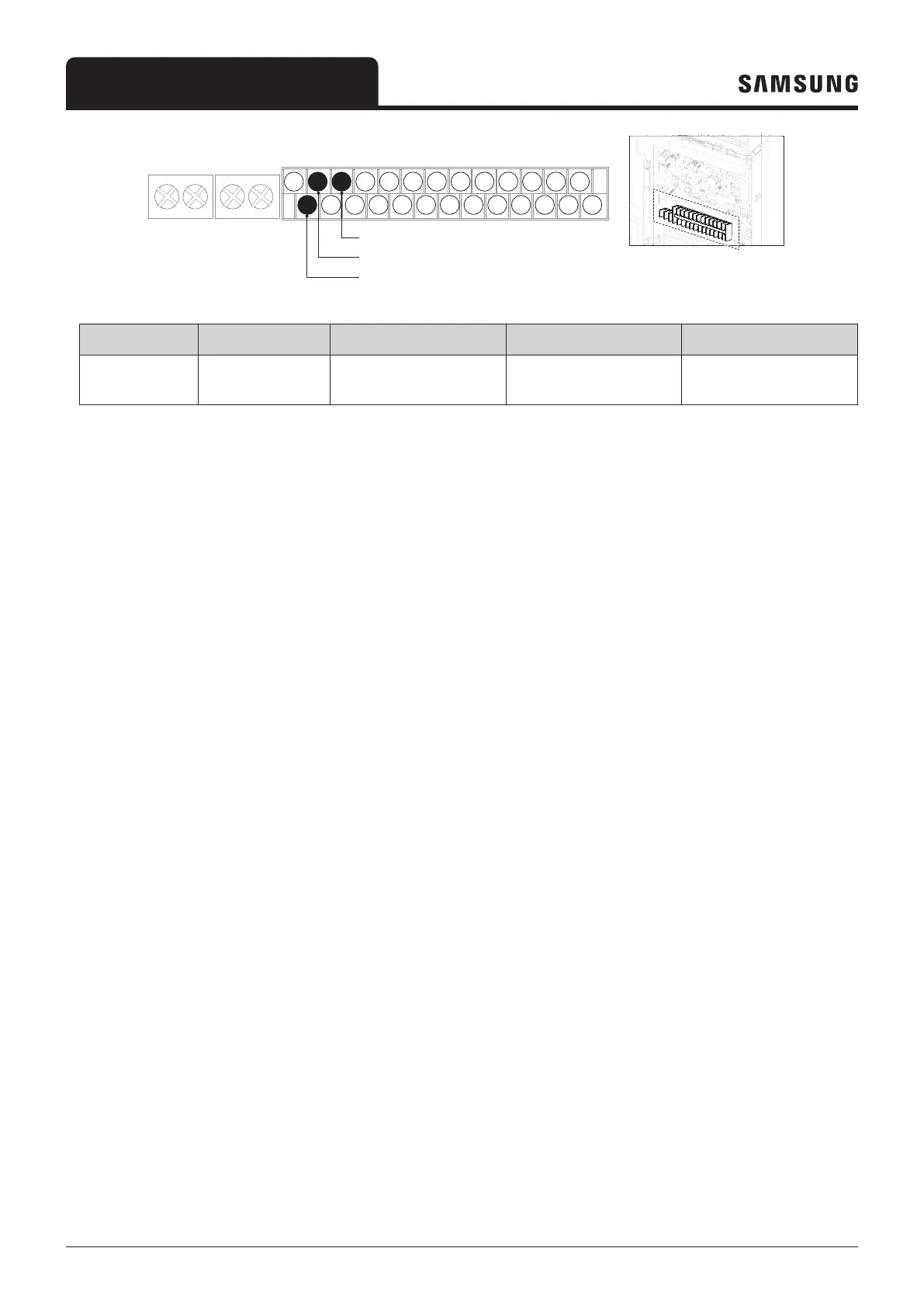

B2 B6 B10 B14 B18 B22B4 B8 B12 B16 B20 B24 B26
B1 B5 B9 B13 B17 B21B3 B7 B11 B15 B19 B23 B25
Neutral (N)
CCW (L2)
CW (L1)
Description No. of wires Max. A Thickness Remark
Mixing valve 4 22mA
>0.75mm², H05RN-F or
HO7RH-F
Field supply
(220-230V~, Input)
When to install a mixing valve
• Where radiators need high temperature supply, under floors need less hot supply to make walking on it comfortable.
A mixing valve is required in a two-zone configuration with different supply temperatures per zone.
The position of the mixing valve is at the water inlet of the lowest temperature zone.
