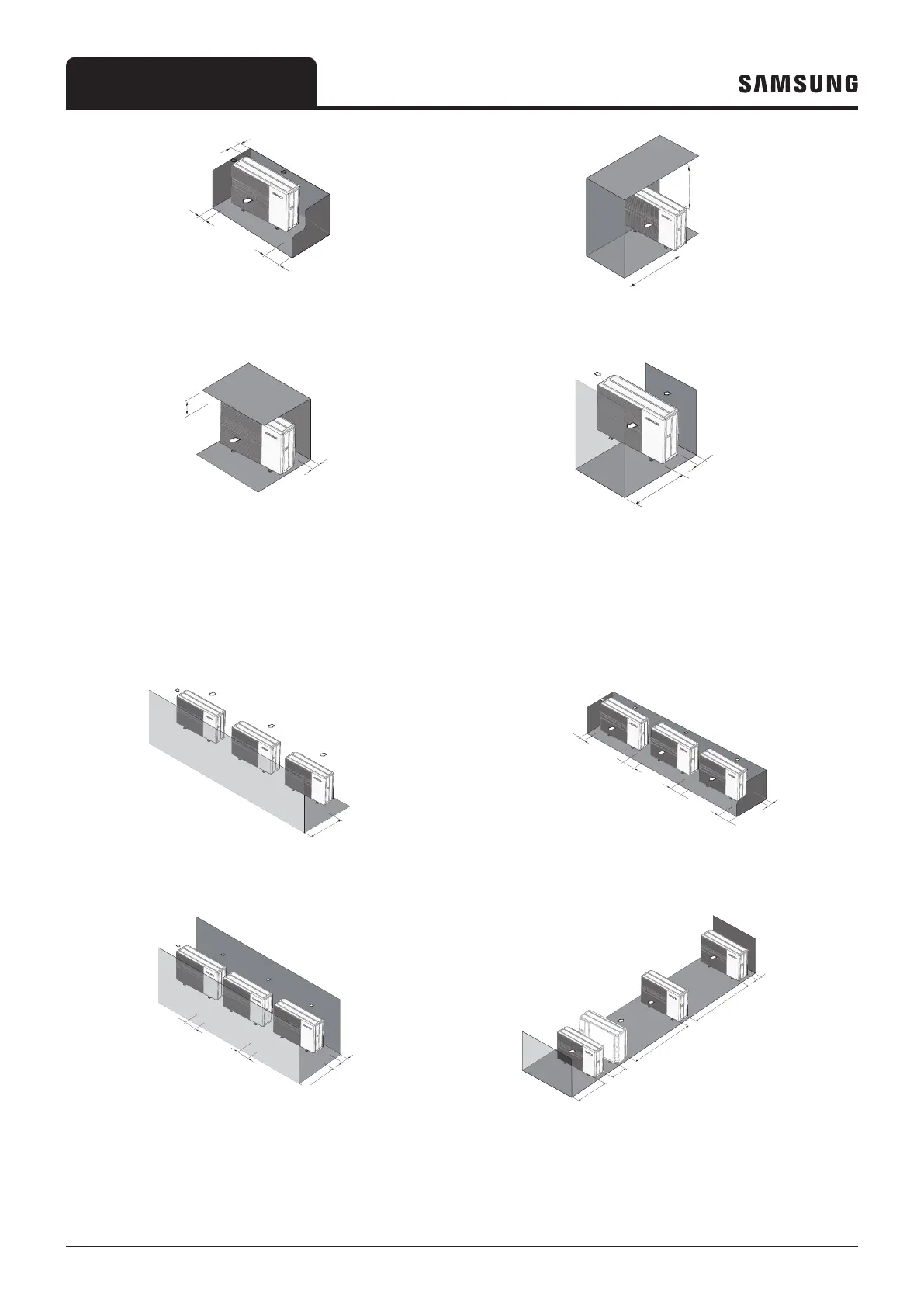

5. Unit installation
Installer reference guide / Mono tank integrated type 31
300 or more
300 or more
600 or
more
1,500 or more
2,000 or more
Suction-side obstacle (3 sides)
No top-side obstacle
Top-side obstacle
Discharge-side obstacle
Wall on discharge-side
600 or more
300 or more
1,500 or more
300 or more
Top-side obstacle
Wall on suction-side
Suction-side obstacle
Wall on discharge-side
When installing more than 1 outdoor unit
(Unit : mm)
1,500 or more
600 or more
600 or more
300 or more
600 or more
300 or more
Wall on discharge-side Suction-side obstacle (3 sides)
No top-side obstacle
600 or more
600 or more
1,500 or more
300 or more
300 or more
1,500 or more
600 or
more
3,000 or more
3,000 or more
Wall on suction-side
Wall on discharge-side
Wall on suction-side
Wall on discharge-side
