5. Unit installation
Installer reference guide / Mono tank integrated type 43

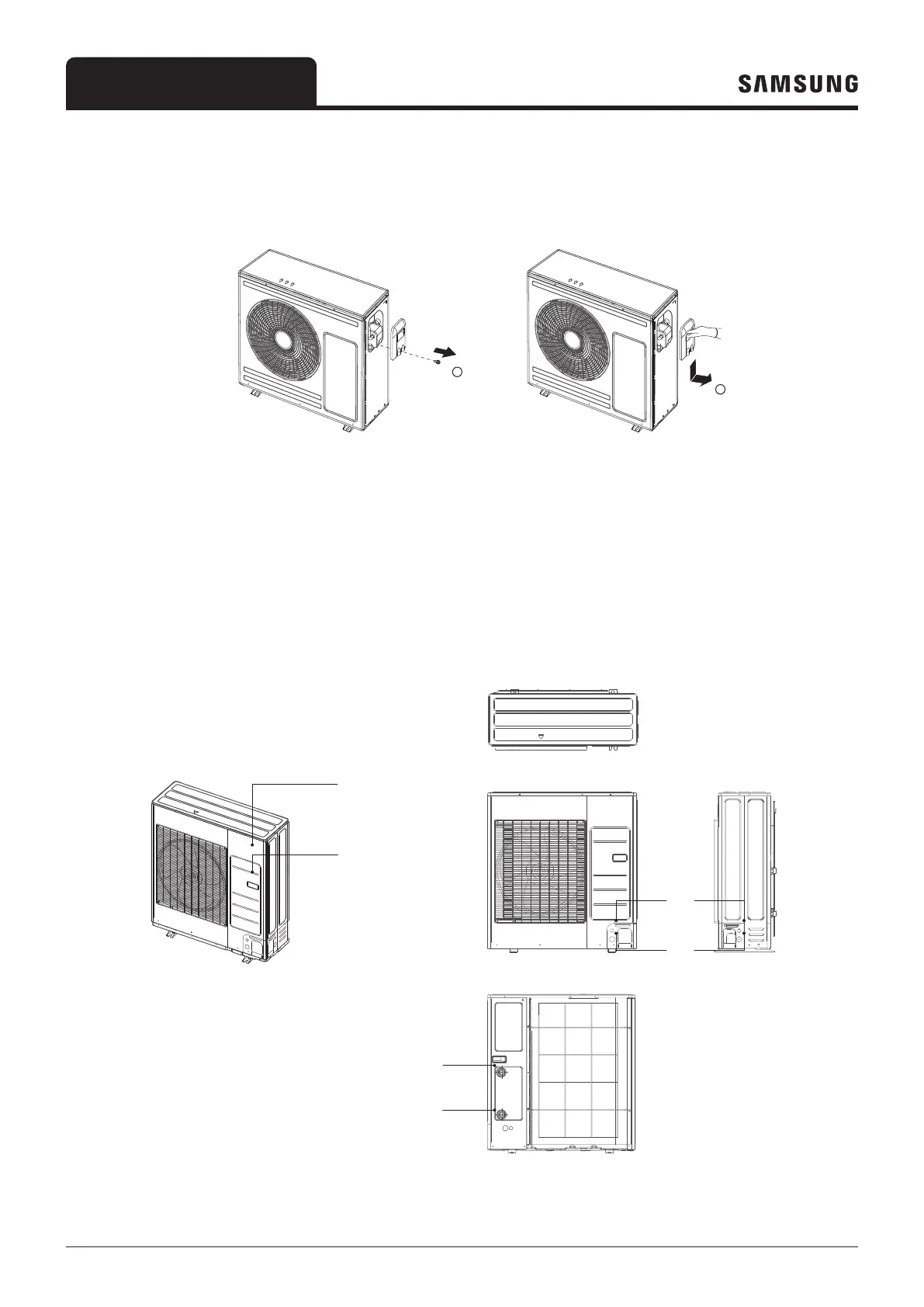

Open
1 Remove the 1 screws of the Assy cover control.
2 To remove Assy cover control, slide it down and pull it out.
12
11
To open the outdoor unit
Overview
※
AE080RXYD**
①
④
⑤
②
③
⑥
1. Front panel
2. Handle
3. Power wiring conduit hole
4. Communication wiring conduit hole
5. Water pipe (Out)
6. Water pipe (In)
