Outdoor unit
NOTE
Do not use excessive force when connecting the piping. Deformation of the piping can cause
malfunctioning of the unit.

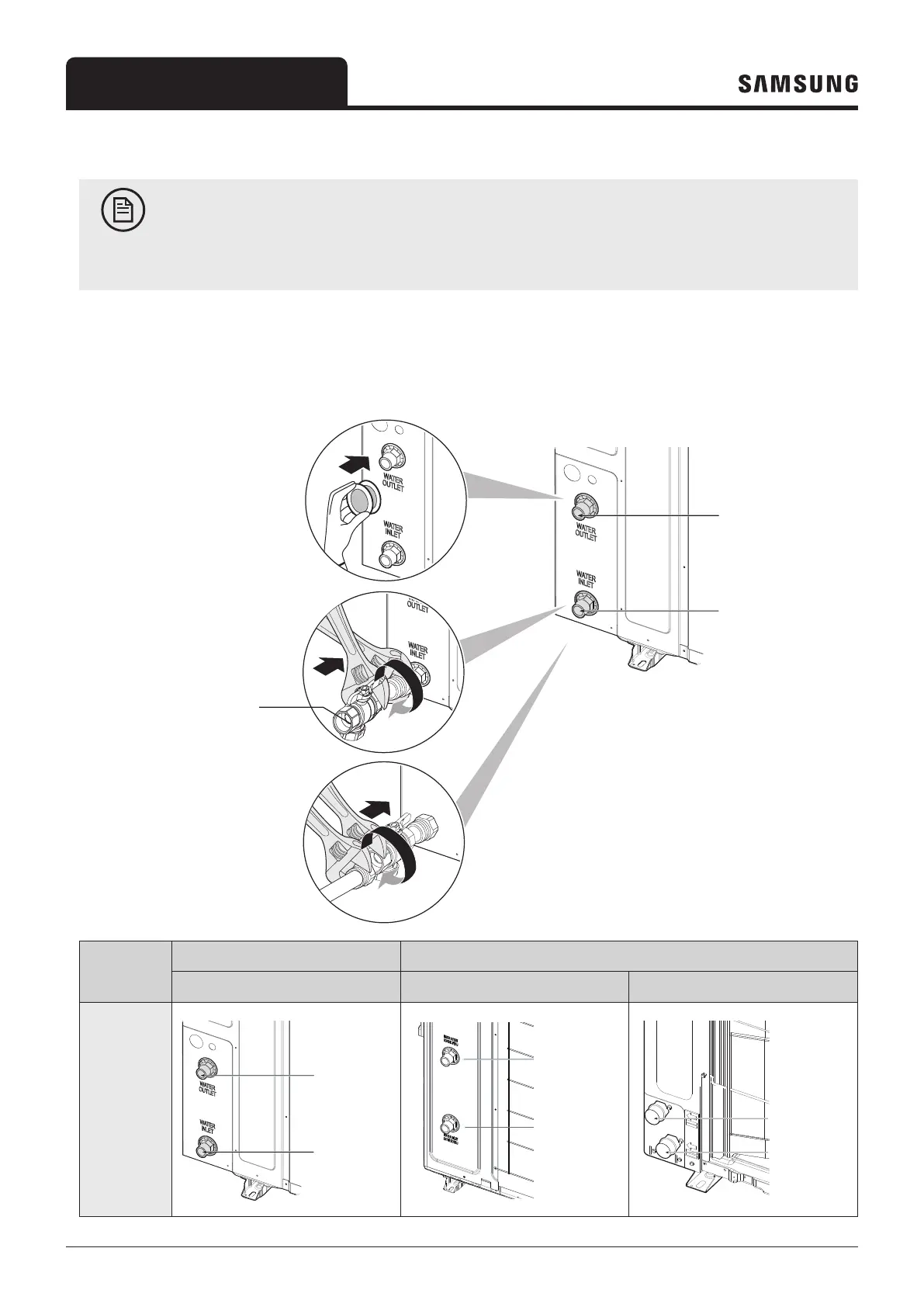

1 Connect the shut-off valve (with integrated filter) to the outdoor unit water inlet, using the thread sealant.
2 Connect the field piping to the shut-off valve.
3 Connect the shut-off valve to the outdoor unit water outlet, using the thread sealant.
Water Outlet
Water Inlet
Shut Off Valve (1) IN (inc. Filter) /
Shut Off Valve (1) OUT
①
②
③
Model
Mono HT Quiet Mono HT
AE080/120/140BXYD** AE050RXYDEG AE080/120/160RXYD**
Water Outlet
Water Inlet
Water Outlet
Water Inlet
Water Outlet
Water Inlet
