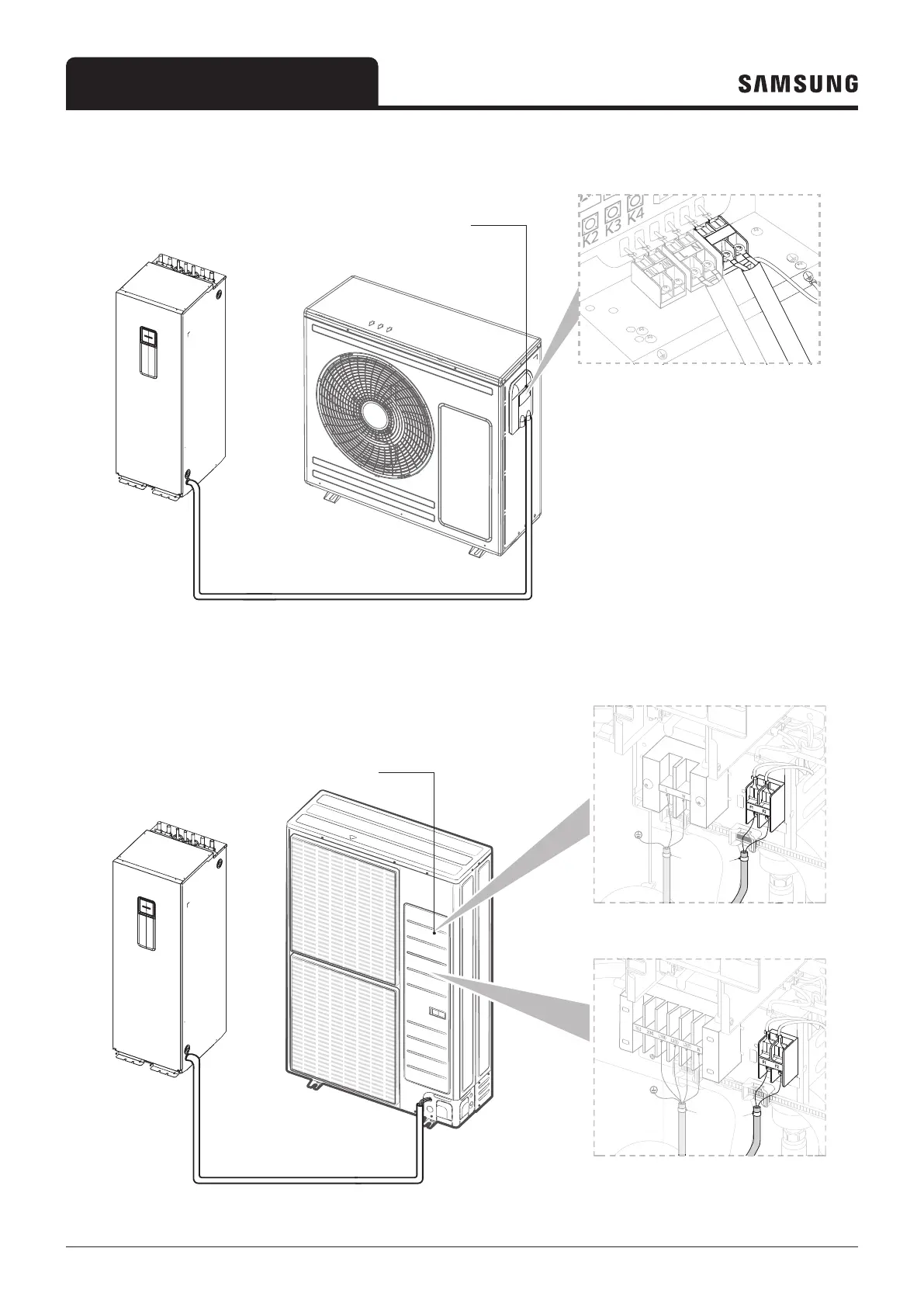

7. Electrical installation
Installer reference guide / Mono tank integrated type 90
AE050RXYDEG
F1
F2
L
N
1(L)
2(N)
• 1 phase
Communication cable
Electrical component box
AE080/120/160RXYD**
• 1 phase
• 3 phase
Cable
tie
Cable
tie
Communication cable
Communication cable
Electrical component box
