S&C TripSaver II Installation, Operation, And Configuration

76 S&C Instruction Sheet 461-509
Conguring the Communications Gateway
The purpose of the Diagnostics screen is to initiate the retrieval of the Diagnostic and
Event Log les. See Figure 73.

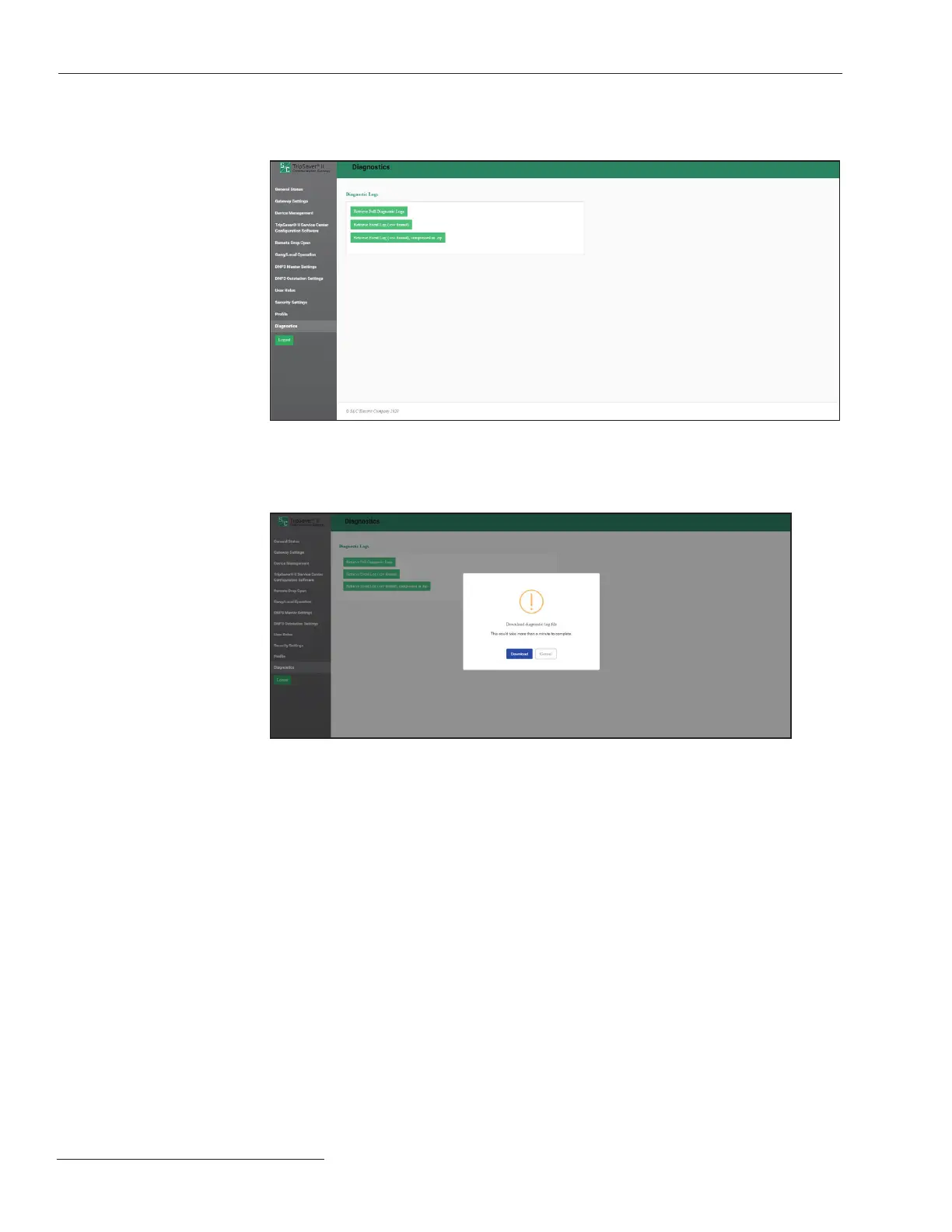

Figure 73. The Diagnostics screen retrieves files.
When the Retrieve button is selected, a dialogue box appears notifying the user of
the file-retrieval interval. See Figure 74.
Figure 74. The Diagnostic Log retrieval interval dialogue box.
Diagnostics
