Logging on to the Communications Gateway
The communications gateway is accessed via a Web browser interface. Connect a PC
with a CAT5 Ethernet cable to the communications gateway’s Ethernet Port 1. See
Figure 4 on page 12. The default con guration of the communications gateway’s IP
gateway is 192.168.1.1 with DHCP set as “On.” To join the communications gateway
network, set the PC’s network address to “Obtain an IP Address Automatically” and
“Obtain DNS Server Address Automatically” under the PC’s LAN address settings to
enable a network connection to the communications gateway. Alternately, a static IP
address within the 192.168.1.x network may be used. See Figure 9.
Note: To remove Windows routing con icts, S&C recommends turning the PC’s Wi-Fi
radio off.

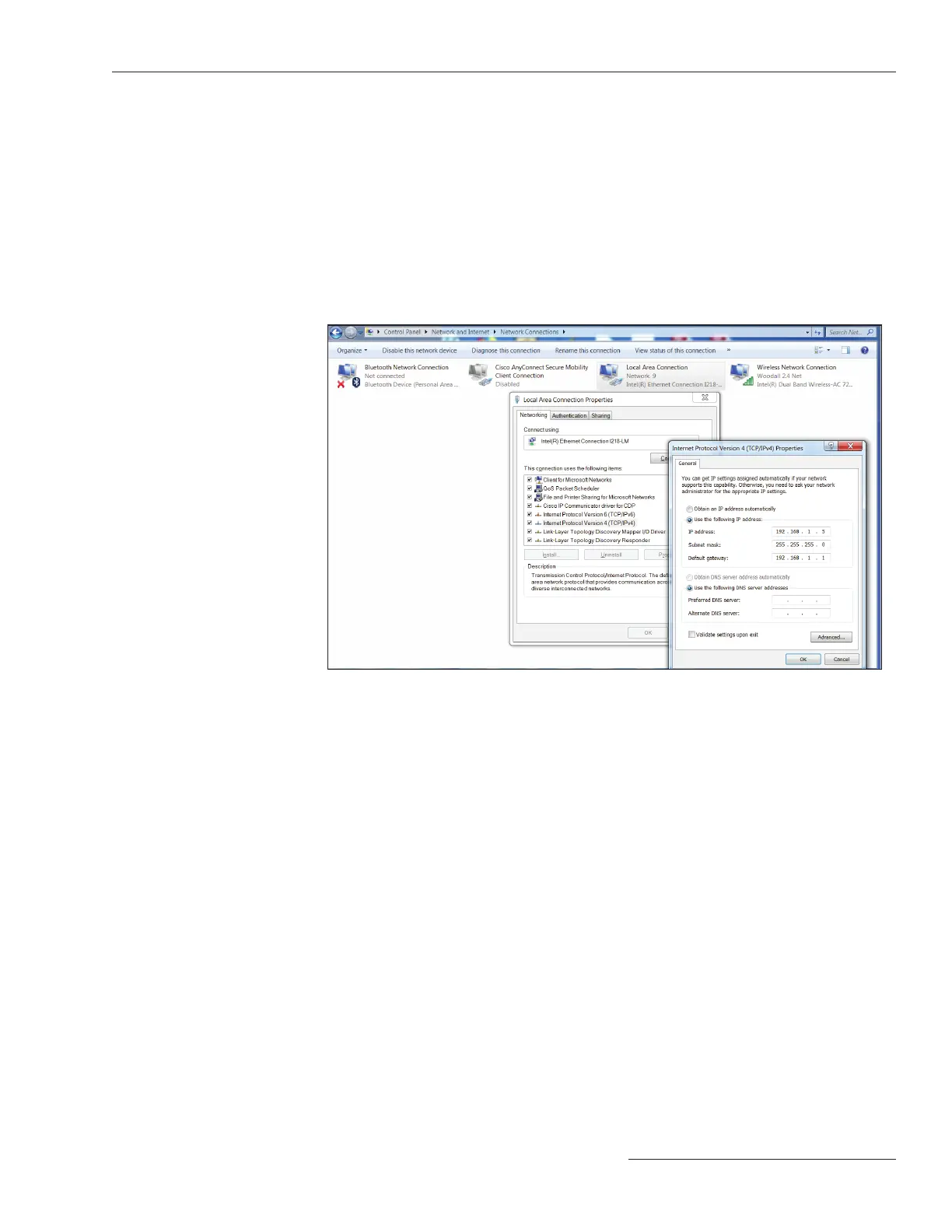

Figure 9. Setting a static IP address on the PC to connect to the communications gateway.
