Sanding STS-752RC - Page 52

51
After entering the coordinates, press OK
to confirm.
【Stake Out Input Data】
X/N
:
----.--- m
Y/E
:
----.--- m
H/Z
:
----.--- m
BACK
0SET
OK
Notice: [MANUAL]: Data that was input will not be saved in the job.
Soft keys:
DIST: Starts measurement and calculation of the stake-out elements.
RECORD: Saves the displayed values.
5.5.2 Polar Stake Out
1. Actual
2. Point to be staked out

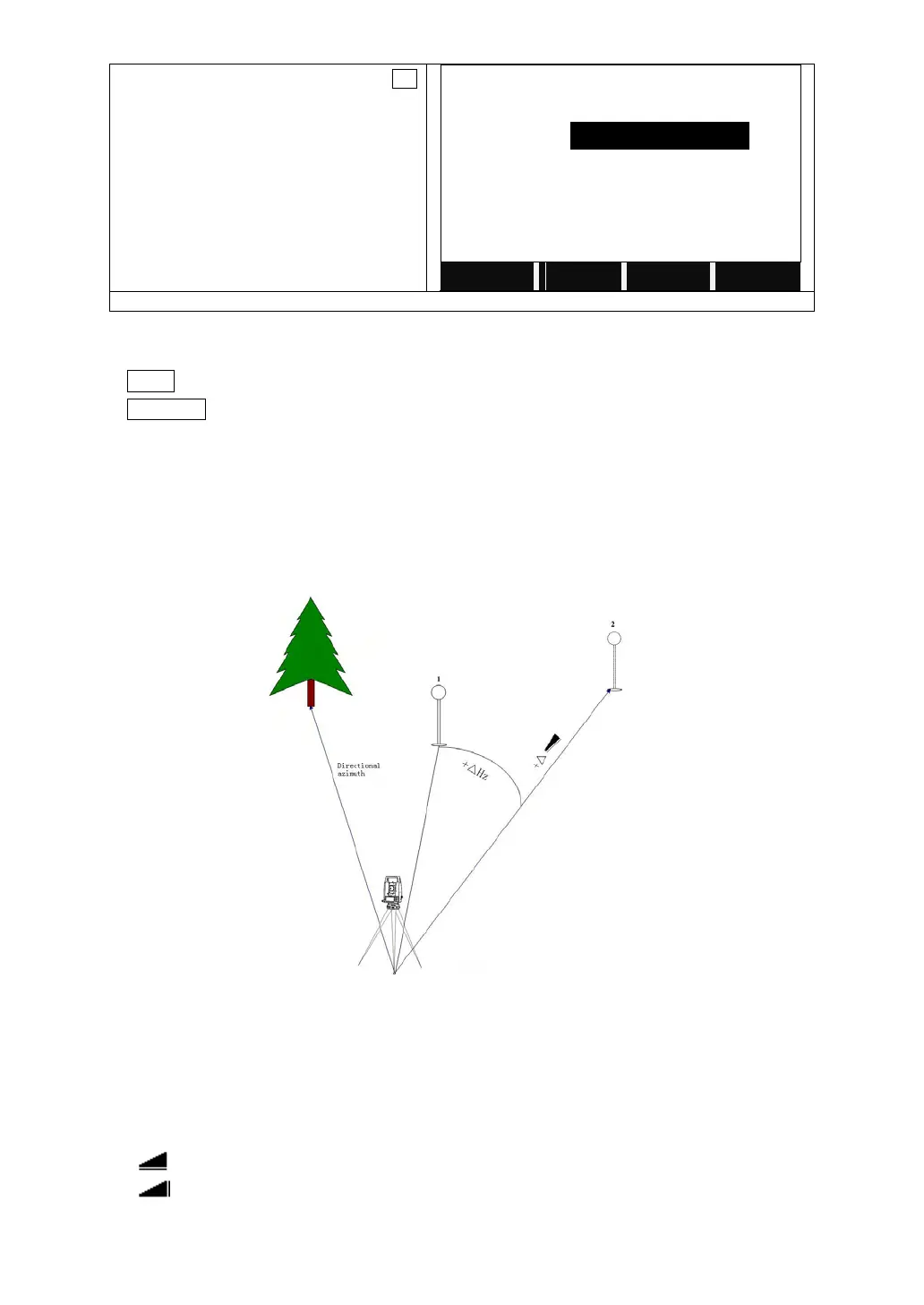

Normal indication of polar stake out offsets.
∆Hz: Angle offset. Positive if point to be staked out is to the right of the actual
direction.
∆ : Longitudinal offset. Positive if point to be staked out is further away.
∆ : Height offset. Positive if point to be staked out is higher than measured
point.
