53
When both △Hz and △ are 0, it
means the current position of the prism is
the point to stake out.
△ displays the offset to dig or fill.
: Distance to dig.
: Distance to fill.
【Stake Out】 1/3 ▼
Find
:
*
PtID
:
5
Type
:
Known
△Hz
:
0°00′00″
Ⅰ
△
:
0.000 m
Mem.
△
:
-1.119 m
All
DIST
RECORD
↓

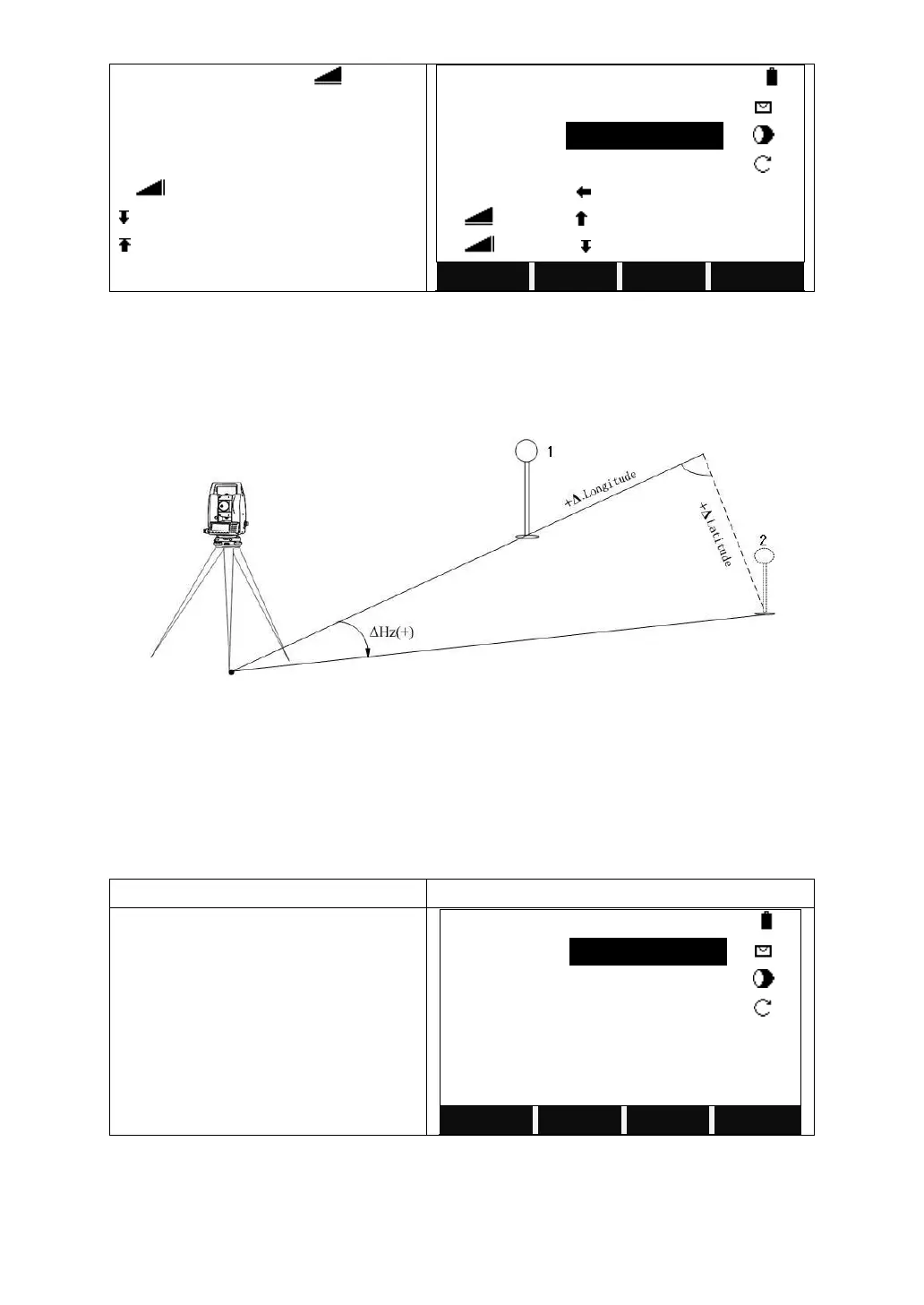

5.5.3 Orthogonal Stake Out
The position offset between measured point and stake-out point is indicated in a
longitudinal and transversal element.
1. Actual
2. Point to be staked out
∆LOff: Longitudinal offset. Positive if the stake-out point is further away.
∆TOff: Transversal offset. Perpendicular to line-of-sight: Positive if the stake-out
point is to the right of measured point.
STEPS
DISPLAY
Turn to Page 2/3 to start Orthogonal
Stake Out.
Select or input the point to stake out.
Enter the reflector height.
【Stake Out】 2/3 ▼
PtID
:
6
Type
:
Meas.
R.HT
:
1.800 m
△LOff
:
----.--- m
Ⅰ
△TOff
:
----.--- m
Mem.
△H
:
----.--- m
All
DIST
RECORD
↓
