54

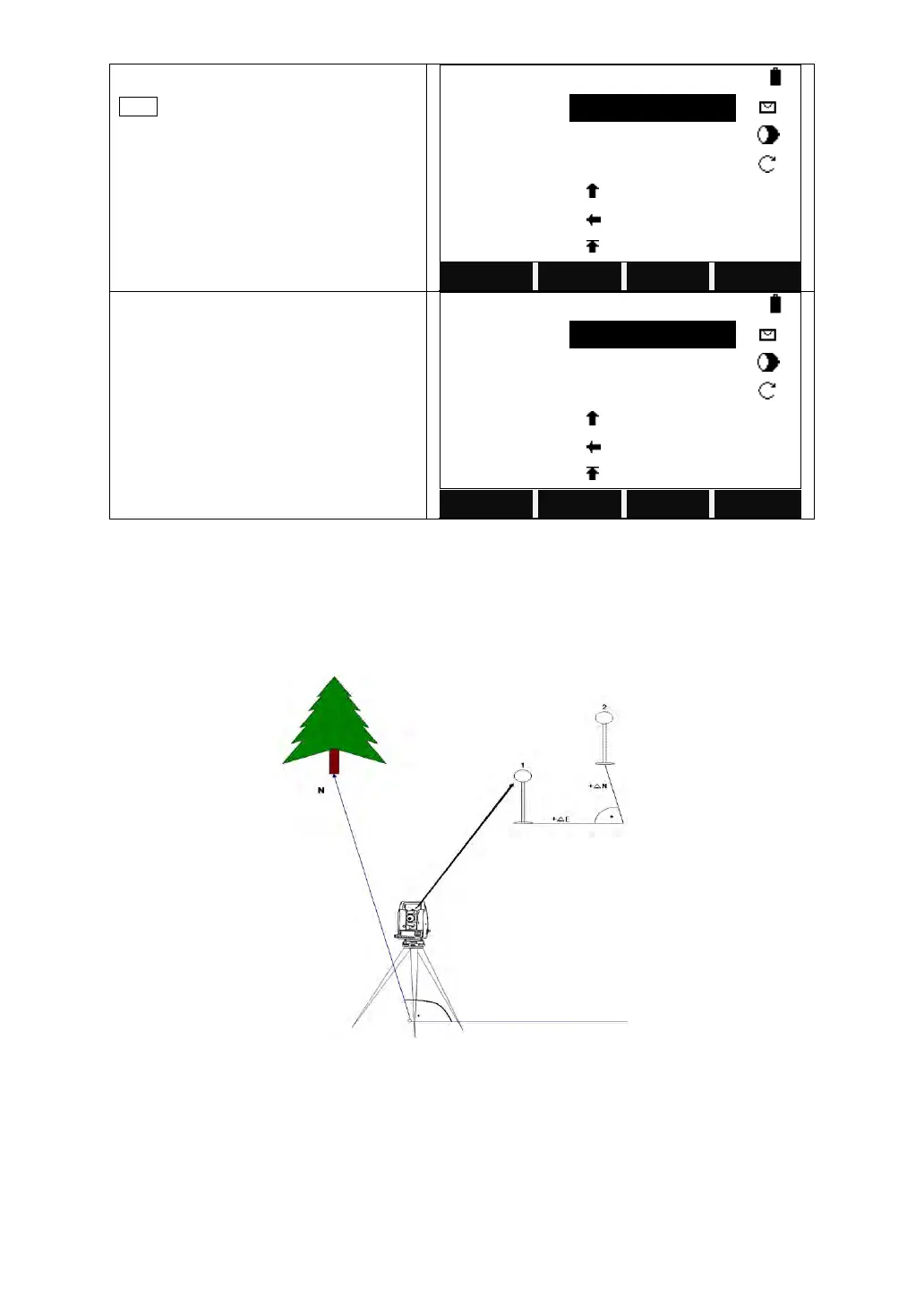

Collimate the current prism, and press
DIST to measure. The system calculates
and displays the offsets between the
measured point and the point to stake
out.
【Stake Out】 2/3 ▼
PtID
:
6
Type
:
Meas.
R.HT
:
1.800 m
△LOff
:
4.086 m
Ⅰ
△TOff
:
-2.361 m
Mem.
△H
:
1.302 m
All
DIST
RECORD
↓
Indicate the person who moves the prism
to move the prism according to the arrows
until the △LOff and △TOff are 0 m.
Then the current position of the prism is
the point to stake out. △H indicates the
distance to dig or fill.
【Stake Out】 2/3 ▼
PtID
:
6
Type
:
Meas.
R.HT
:
1.800 m
△LOff
:
0.000 m
Ⅰ
△TOff
:
0.000 m
Mem.
△H
:
0.822 m
All
DIST
RECORD
↓
5.5.4 Coordinates Offset Stake Out
Staking out is based on a coordinate system and the offset is divided into a north
and east element.
1. Actual prism position
2. Point to be staked out
Meaning of several offsets in process of coordinate stake-out.
△ X/ △ E: Offset of X coordinate between stake-out point and current
measurement point.
△ Y/ △ N: Offset of Y coordinate between stake-out point and current
