Operating Instructions Flexsafe
®
Pro Mixer Drive Unit 23
Operating Concept
4.4 User Guide
The user guide guides the user through the process step routine and provides support with entering values in entry
fields.
Access level: Admin
DD.MM.YYYY
HH:MM:SS
Manual mixing
Install Palletank
Install mixing bag into Palletank
Access level: Admin
DD.MM.YYYY
HH:MM:SS
Manual mixing
Lift up the motor by pressing the arrow up
button. Press the button until the motor is
positioned correctly
Couple motor
Access level: :Admin
DD.MM.YYYY
HH:MM:SS
Manual mixing
Access level: : Admin
DD.MM.YYYY
HH:MM:SS
Manual mixing
Actual speed [rpm]
Time [hh:mm:ss]
Set parameters
Speed
Duration
1
3
2
1
2

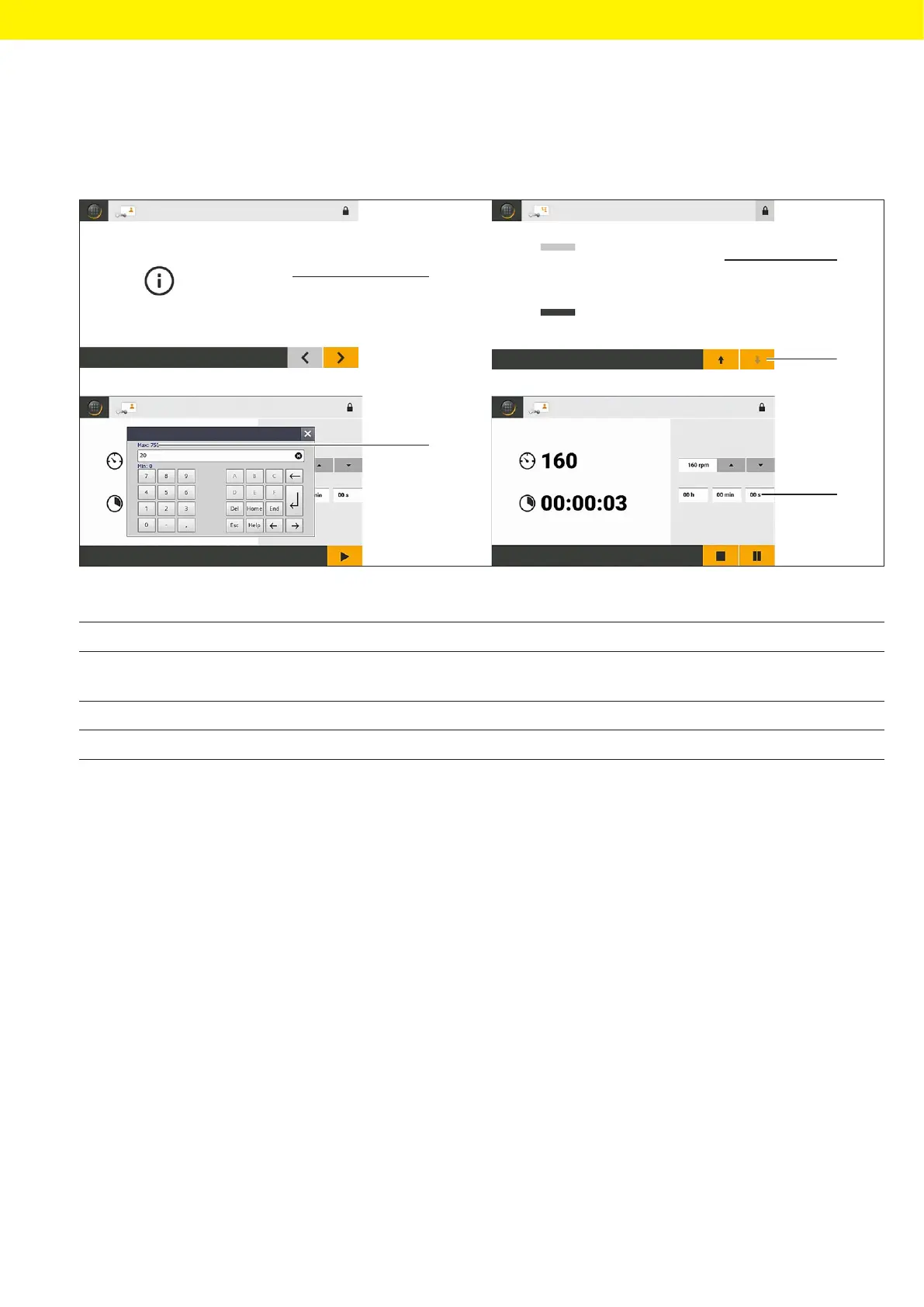

Fig. 8: User guide (example)
Pos. Designation Description
1 Work step Displays the current work step in a process step routine, e.g. for coupling the
motor.
2 Input assistance Functions that are not available are grayed out, e.g. buttons or entry fields.
3 Parameter limit value
