Operation of the moisture analyzer follows
a standardized “philosophy” which is
described below.
Keys
The moisture analyzer is operated either
using the keys on the display and
control unit or via a connected PC.
Operation using the keys is described
in the following.

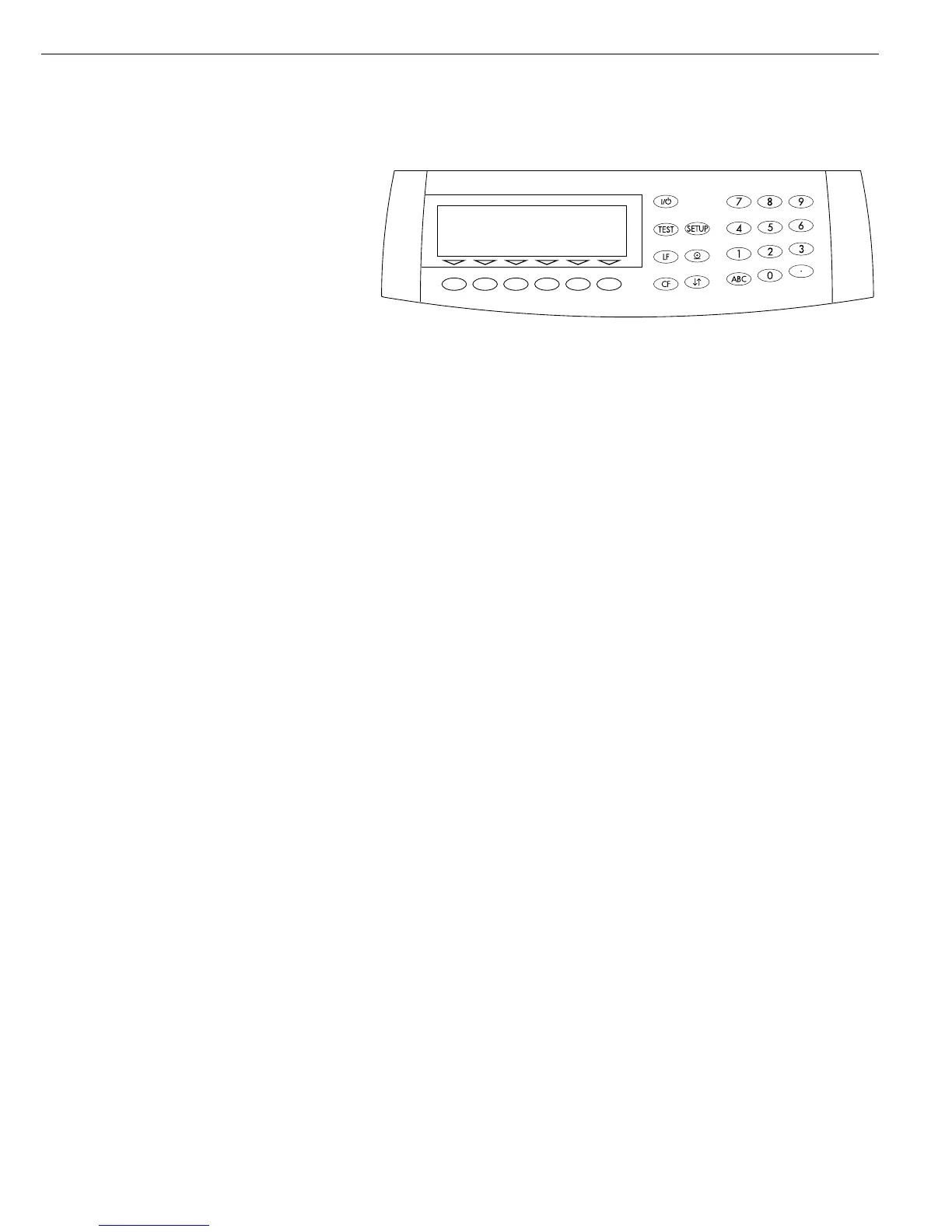

Labeled Keys
These keys always have the function
indicated, but are not available at all times.
Availability of these functions depends
on the current operating status of the
moisture analyzer and its menu settings.
9
Operating Design
The keys have the following
functions:
e On/off key
Turns the moisture analyzer
on/off. The moisture analyzer
remains in standby mode
T isoTEST
Calibration/adjustment of the
weighing system and hardware
tests can be carried out
s Configuring the moisture
analyzer
Access to the Setup menu; exit
Setup
l Line Feed
(Optional) printer advances the
paper by one line
p Data Output
Press this key to output displayed
data via the interface port or to
generate printouts using the
(optional) printer
c Clear Function
Deletes keypad input
Interrupts calibration/adjustment
routines
k Arrow Key
Opens or closes the sample
chamber
0 ... 9. Numeric Keys
see the section entitled “Text
Input”
a Alphabetic Keys
see the section entitled “Text
Input”
Numeric Input
To enter numbers: Press the
0 1 … 9 . keys
To store numbers entered: Press the
corresponding soft key
To interrupt/cancel numeric input
digit by digit: Press the c key
Text Input
● To enter numbers: See the section
entitled “Numeric Input”
● To enter letters or characters:
Press the a key
> Letters are displayed in the bottom line
for selection
● To select a different letter: Press the
corresponding soft key to change the
letter shown
● To select the letter/character shown:
Press the corresponding soft key
> The selected letter is shown on
the display
$ Enter the next letter/character, if
desired, as above
$ To exit the letter input mode (i.e. if the
last character entered is a letter):
Press the a key
● To store a word: Press the corresponding
soft key (e.g.,
ID)
● To delete an input or character:
Press c key
● To delete user data: Enter .
“decimal point” or a space “ “ and
confirm by pressing Enter
