SATO CL6NX - Page 195

195

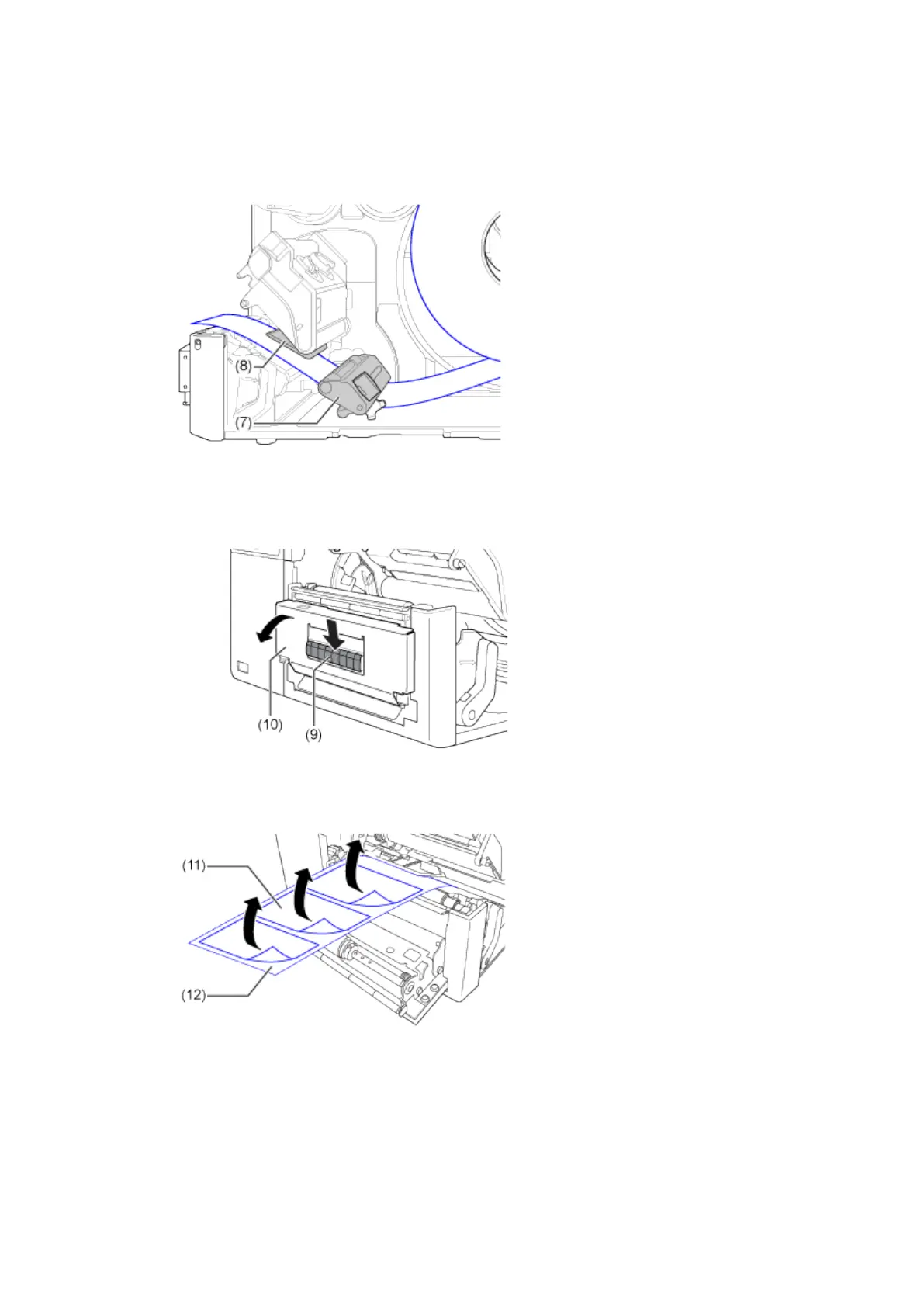

6. Pass the media below the media damper (7) and the media sensor guide (8) while
pushing the media to inside of the printer.
Make sure that the end of the media extends out the front of the printer.
7. Press the tab (9) at the front of the printer to open the dispenser unit (10).
8. Remove about 30 cm (11.8") of labels (11) from the liner (12).
