Loading the Media with the Optional Dispenser Unit and Liner Discharge Rewinder
198

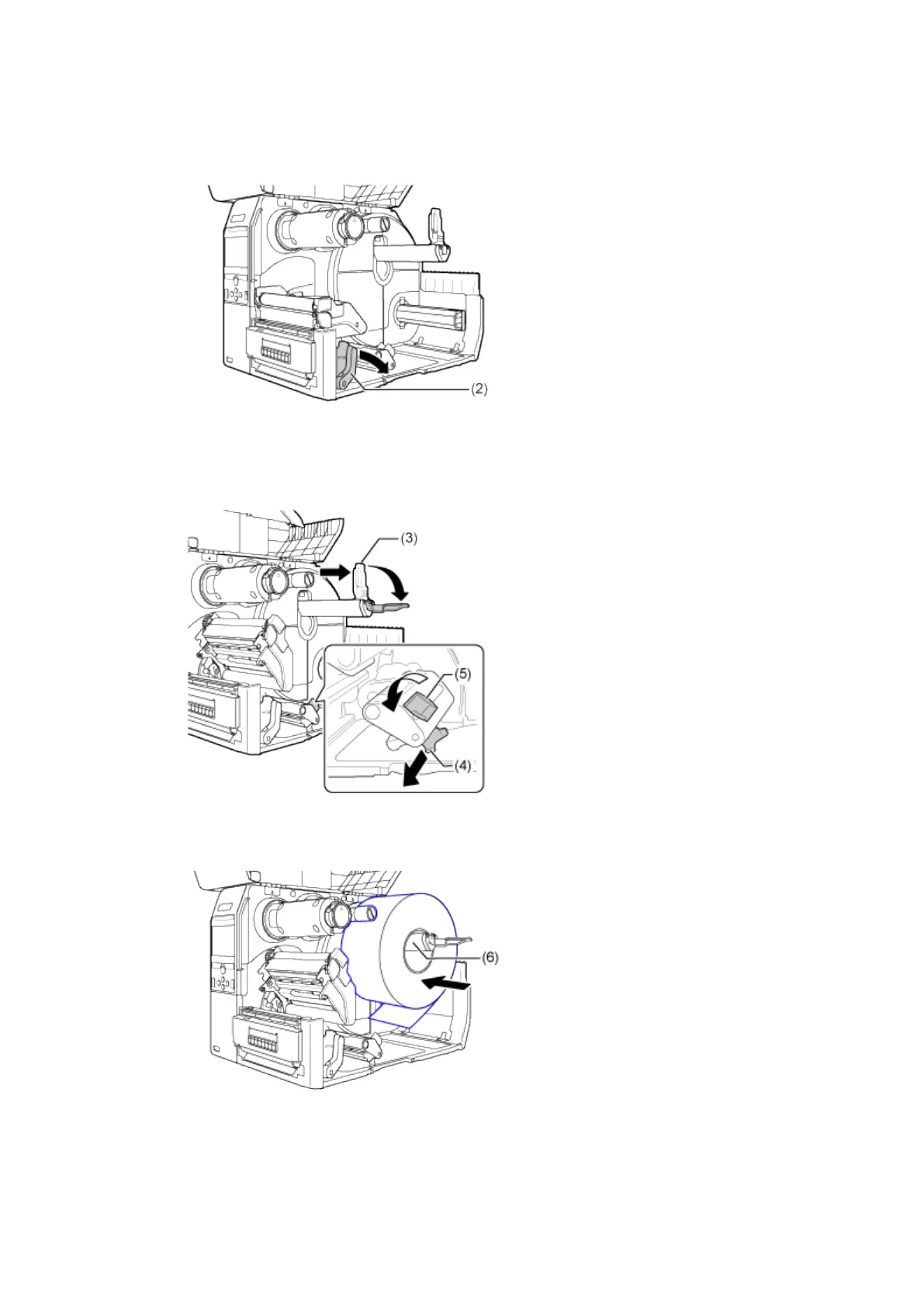

2. Push the head lock lever (2) towards the rear.
3. Pull the media holder guide (3) and media guide (4) away from the printer.
Turn the knob (5) counterclockwise to release the media guide.
4. Load the media in the media holder (6).
Make sure that the media roll is all the way in to inside of the printer.
