SATO CL6NX - Page 199

199

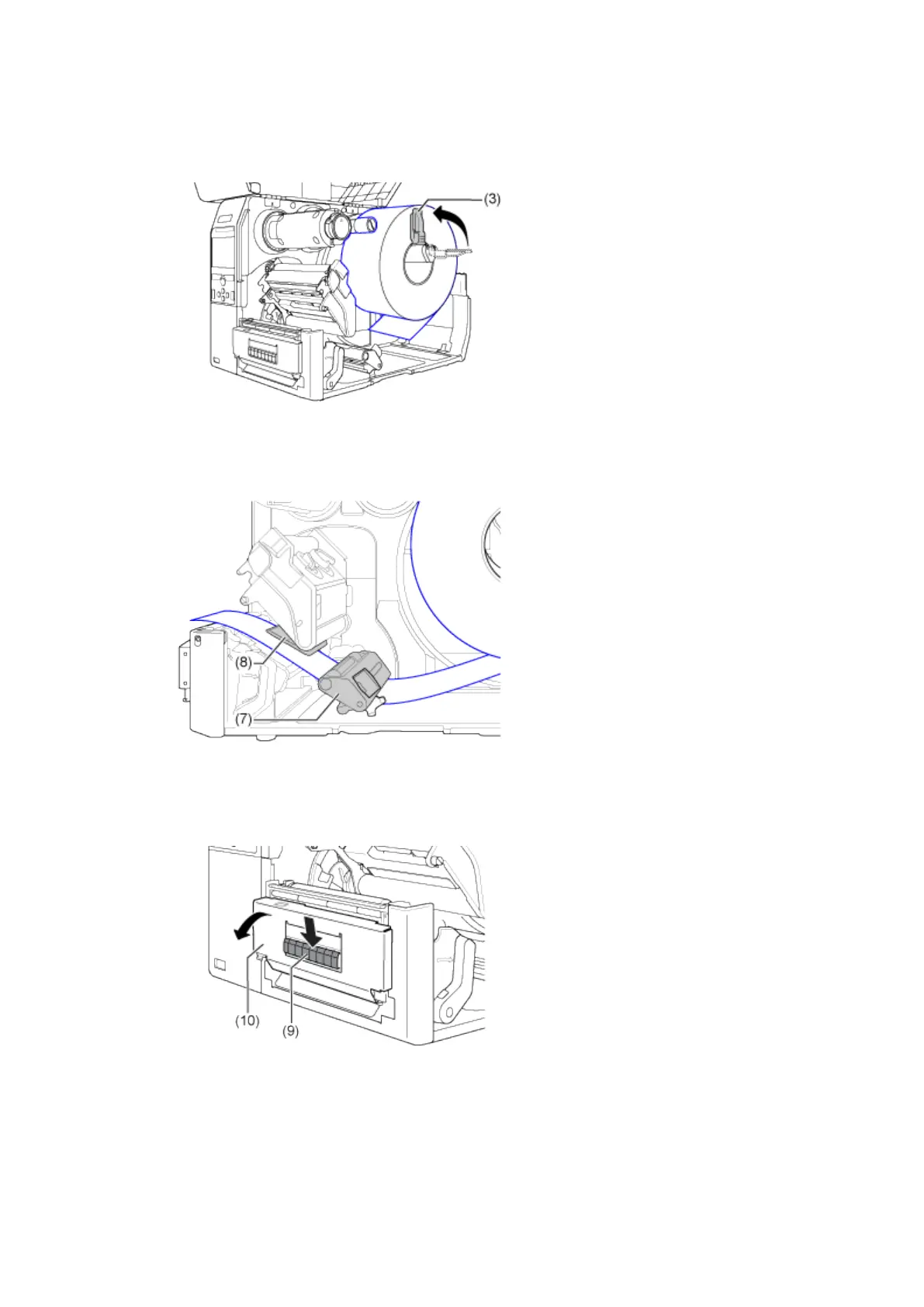

5. Push the media holder guide (3) lightly against the media roll.
6. Pass the media below the media damper (7) and the media sensor guide (8) while
pushing the media to inside of the printer.
Make sure that the end of the media extends out the front of the printer.
7. Press the tab (9) at the front of the printer to open the dispenser unit (10).
