Loading the Media with the Optional Dispenser Unit and Liner Discharge Rewinder
200

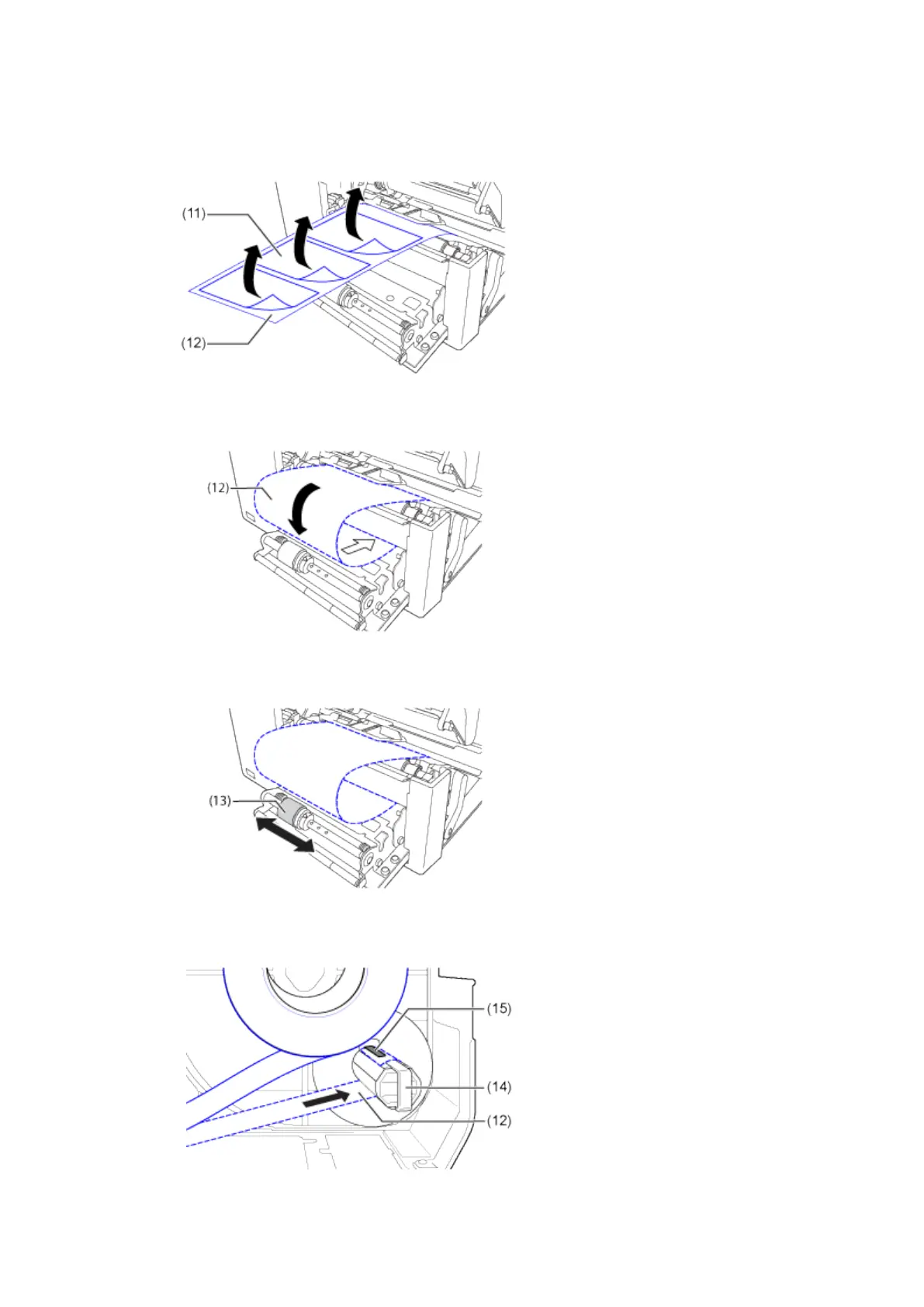

8. Remove about 80 cm (31.5") of labels (11) from the liner (12).
9. Pass the liner (12) through the gap of the dispenser unit to the inside of the printer.
10. Adjust the dispenser roller (13) to the center of the label.
11. Pass the liner (12) below the liner rewinder (14), and attach it with the clip (15).
To Next Page
