SATO CL6NX User Manual

[Barcode Checker]
480

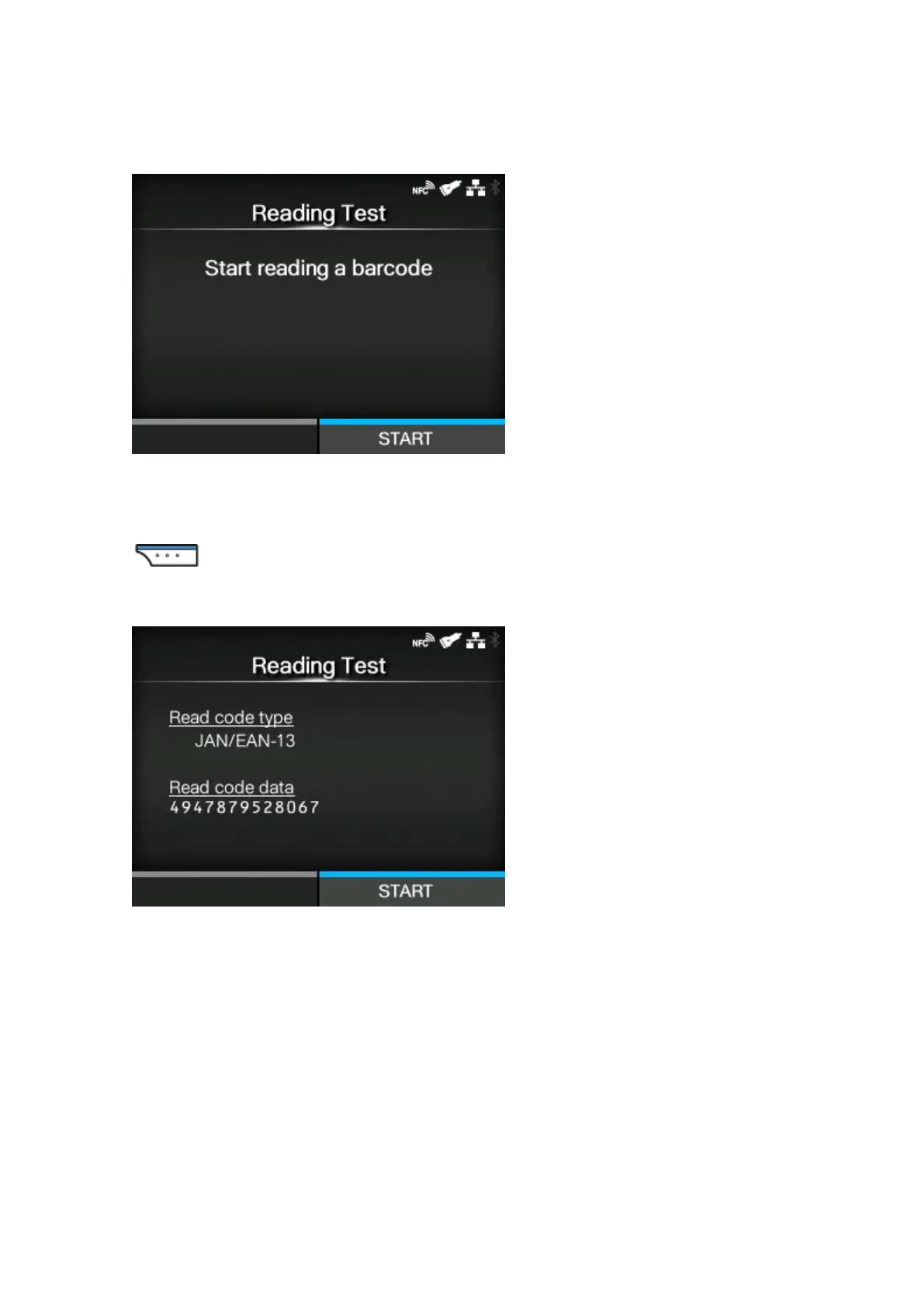

[Reading Test]
Perform a test read with the connected barcode checker.
Available only if you have connected the barcode checker.
Set a label with barcodes within the scanning range of the barcode checker, and then press the
button to start reading.
If reading is successful, the code type and read data are displayed. The data is displayed only up to 23
bytes from the beginning.
If the reading is unsuccessful, or if the displayed read result is not correct, adjust the position of the
barcode checker by operating the barcode checker stand. For details on how to use the barcode
checker stand, refer to the Barcode Checker Stand Kit Installation Manual that came with the barcode
checker stand kit.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
