Optional Features
Page 7-6 BASO-2 - 02.07 - V07

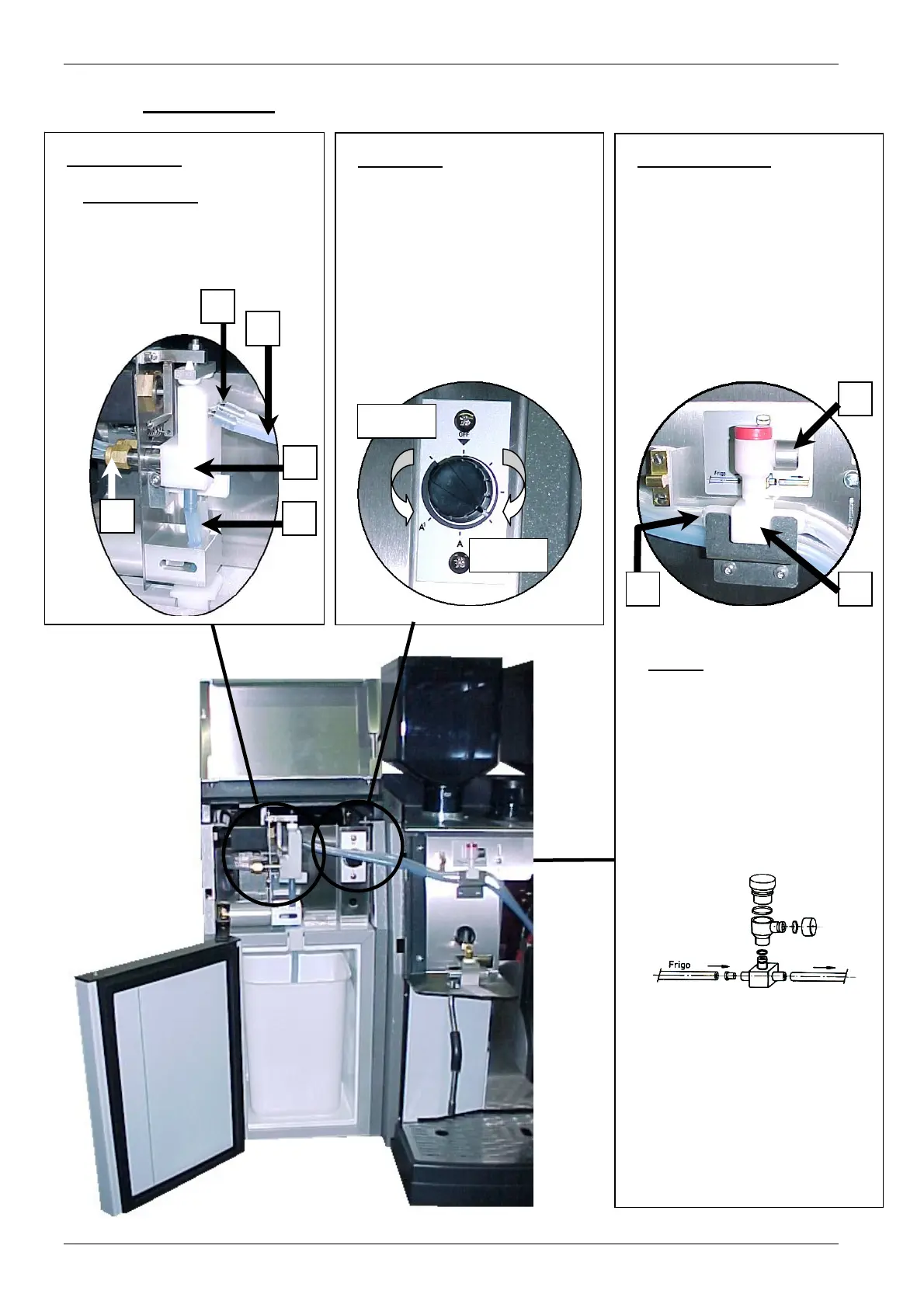

7.1.4 Refrigerator parts
Thermostat
Minus –
Turn in an anti-clockwise
direction (-) to raise the
temperature. To turn the
refrigerator off, turn the
thermostat as far as it will go.
Plus +
Turn in a clockwise direction to
lower the temperature.
( See section 7.1.5.2)
Minus
Plus
Ventilator valve
1. Ventilator valve
2. Milk foam hose (white)
3. Milk hose (blue)
4. Hoses in milk container
5. Automatic rinse pipes
5
4
1
2
3
Legend
1. Air baffle
2. Milk baffle
3. T block
Assemble the expander so the
milk baffle is on the left side.
Air supply system
ssembling information for
the expander
Note:
The mounting instruction
sticker must be kept clean. If
it is very dirty or no longer
legible, a new one must be
requested from the manufac-
turer and the old one re-
placed.
2
1
3
