2. DESCRIPTION
2.1. Coffee machine data

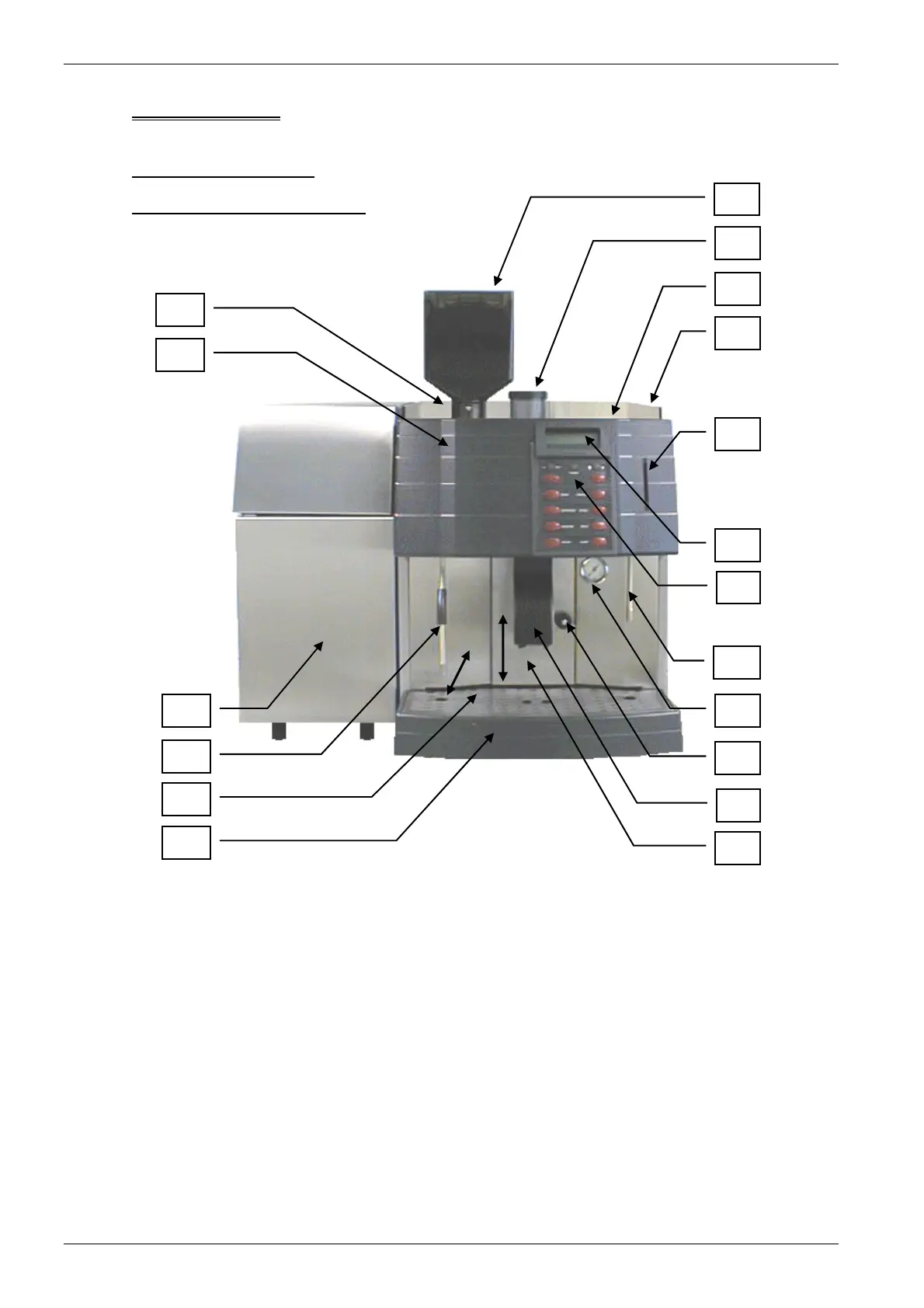

2.1.1. Overview of the coffee machine
1. Mill 1 coffee bean container (standard coffee mill)
2. Sliding hatch for bean container
3. Opening for decaffeinated coffee powder and cleaning tablets
4. Cup hotplate
5. Surround
6. Drainer
7. Drip tray with/without outlet
8. Height blocking button
9. Drawer for coffee grouts (push outlet up to top)
10. Adjustable coffee outlet Î min. Ø 80 mm, max. × 180 mm (dispenser unit)
11. Steam outlet (only with refrigerator option)
12. Hot water outlet
13. Infusion pressure indicator
14. 2-line illuminated display
15. User panel
16. Chip card slot
17. Service door
18. Refrigerator for milk (optional feature)
X Right-hand coffee bean container/mill (optional feature)
15
11
13
8
10
4
5
16
14
9
2
17
18
6
12
7
1
3
