Cleaning
Weekly cleaning coffee machine with fridge
BASO-2 - 01.05 - V07 Page 5-19

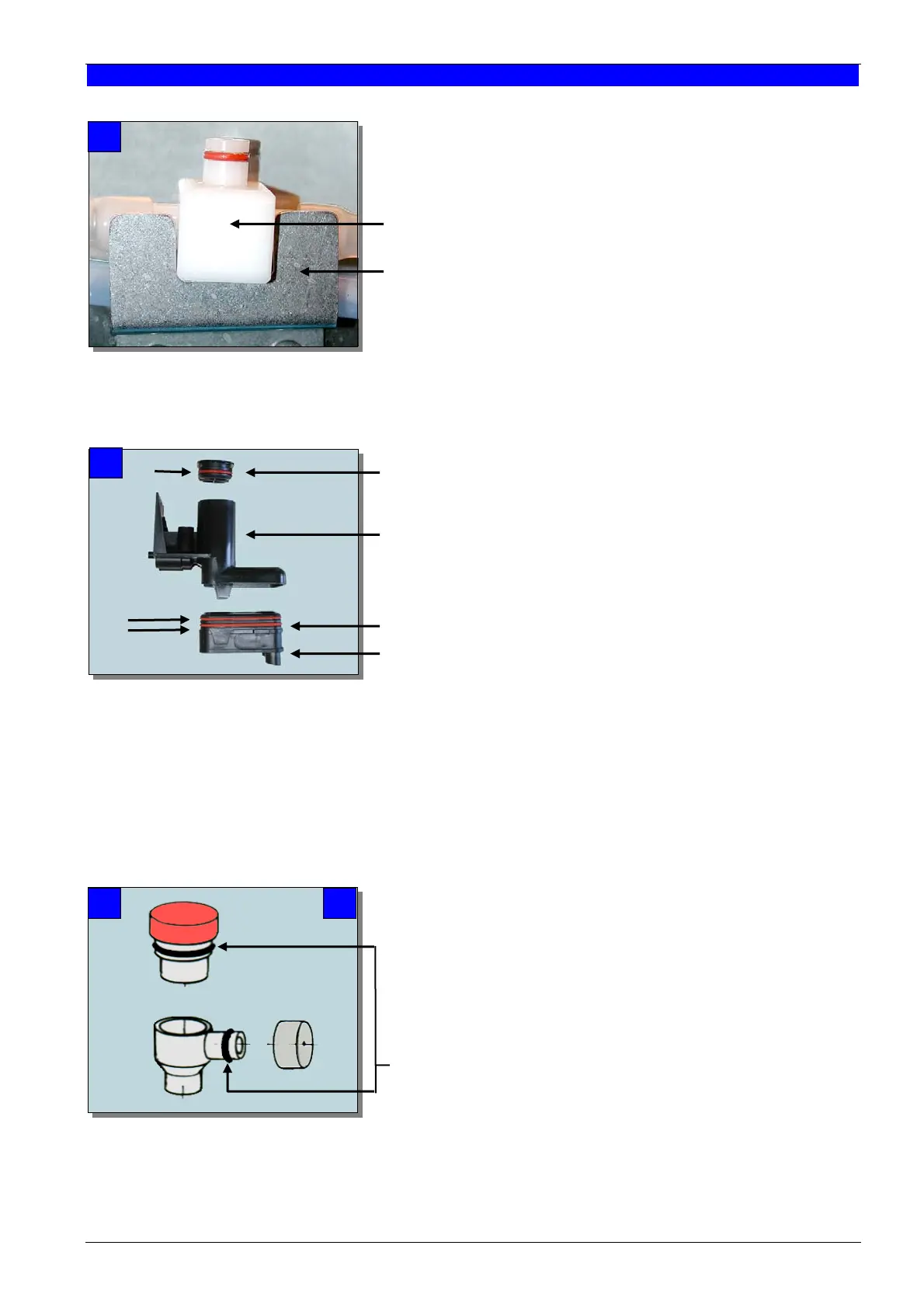

12.1 Lift the T-piece (a) upwards out of the
holder.
13.1 Dismantle the foamer head as shown in the
picture.
13.2 Clean the foamer head parts with a soft
brush under running water.
13.3 Check whether the packing rings (a and b)
are still intact.
Order number packing rings:
a: 063'499
b: 063'496
1 Foamer head cover
2 Foamer head’s middle part
3 Foamer head’s lower part
a Packing rings for foamer head’s cover
b Packing rings for foamer head’s lower part
c Outlet openings
14.1 Remove the expander cover (a) and the baf-
fle (b) from the expander (c).
14.2 Remove the milk residues under running
warm water with a soft brush.
14.3 Check if the packing rings (d) are intact.
Order number packing rings (set):
d: 065232
12
b
a
a
c
14
b
1.
d
13
a
b
1
2
3
c
ª
