Cleaning
Weekly cleaning coffee machine with fridge
Page 5-26 BASO-2 - 01.05 - V07
5.4.3 Table for reassembling the milk pipe system

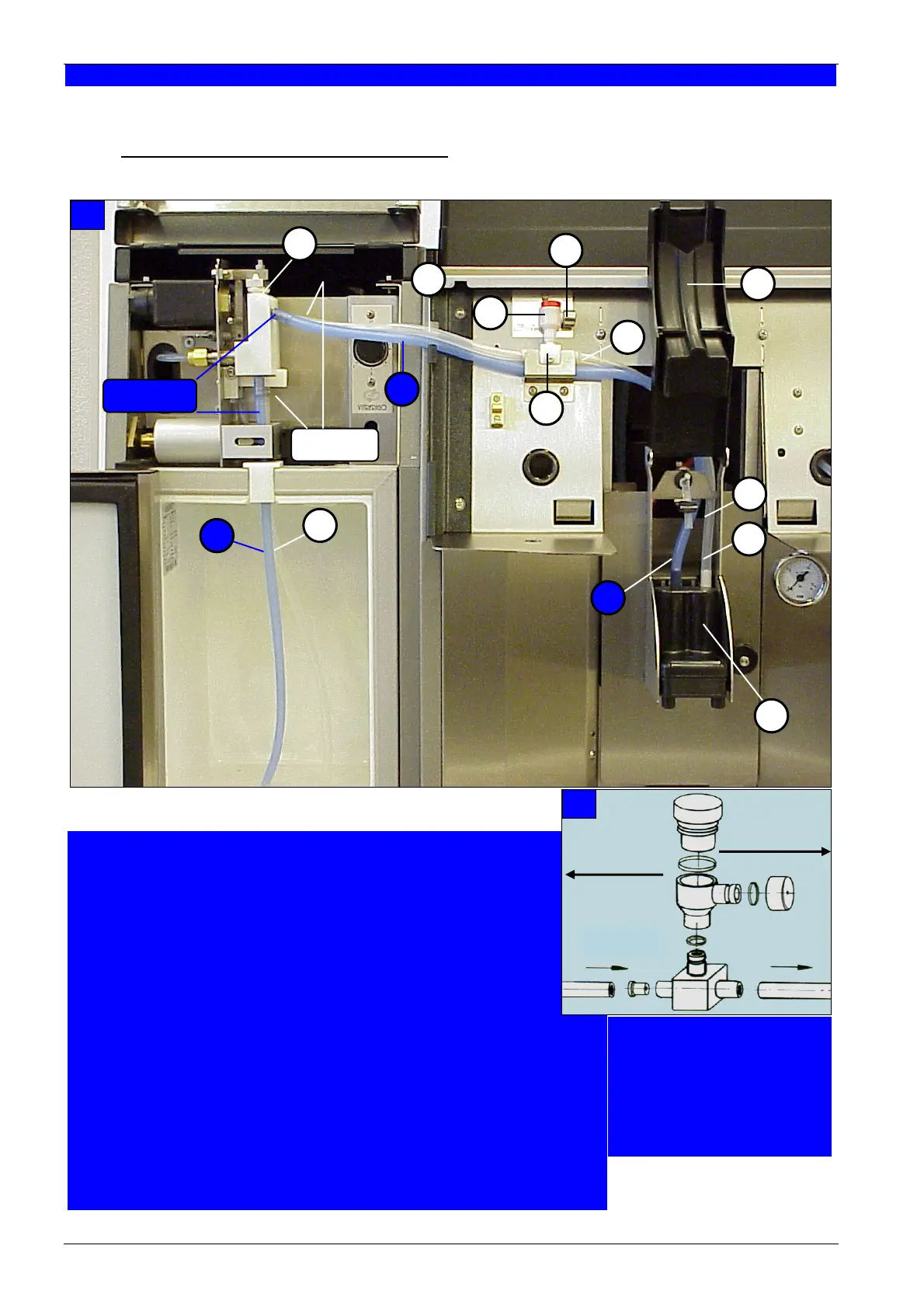

Legend picture A
1. Air valve
2. Baffle
3. Expander
4. T-piece
5. Coffee outlet cup
6. Tube blue
7. Tube white
8. Foamer head
z a) Tube connection from air valve to foamer head
z b) Tube connection from air valve to T-piece
z c) Tube connection from T- piece to foamer head
z d), e) Tube connection from air valve to fridge
Legend picture B
Assembly plan “T-piece
with expander and baffle“
6 front
7 rear
8
3
5
2
1
7
6
4
c
b
c
e
d
a
A
B
Milk
Frid
e
