Schiller BP-200 plus - Potential Equalisation; Switching on and off and Power Supply; Switching the Unit off; Power Supply and Backup Battery Operation

Page 23
Art. no.: 2.510701 rev.: c
Initial Preparation 3
User Guide Start-up and Initial Preparation 3.1
BP-200 plus
3.1.4 Potential Equalisation
The potential equalisation stud at the rear of the unit is used to equalise the ground
potential of the BP-200 plus to that of all mains powered equipment in the vicinity. It
is recommended that the BP-200 plus is connected to the hospital or building
common ground at all times. A yellow/green ground cable is supplied as an option
(Article number 2.310005).
3.1.5 Switching ON and OFF and Power Supply
3.1.6 Power Supply and Backup Battery Operation
The unit is operated from the mains supply via a 9 V transformer. When mains power
(9 V) is connected the mains indicator is lit.
The backup batteries can supply sufficient power for approximately 40-50
measurements dependent on blood pressure. When the mains is not connected and
the unit is running on backup power, the battery indicator is lit
To avoid possible interference from the ergometer when carrying out an exercise test,
it is strongly recommended that both the host system, the BP-200 plus, and the
ergometer are connected to the same common ground.

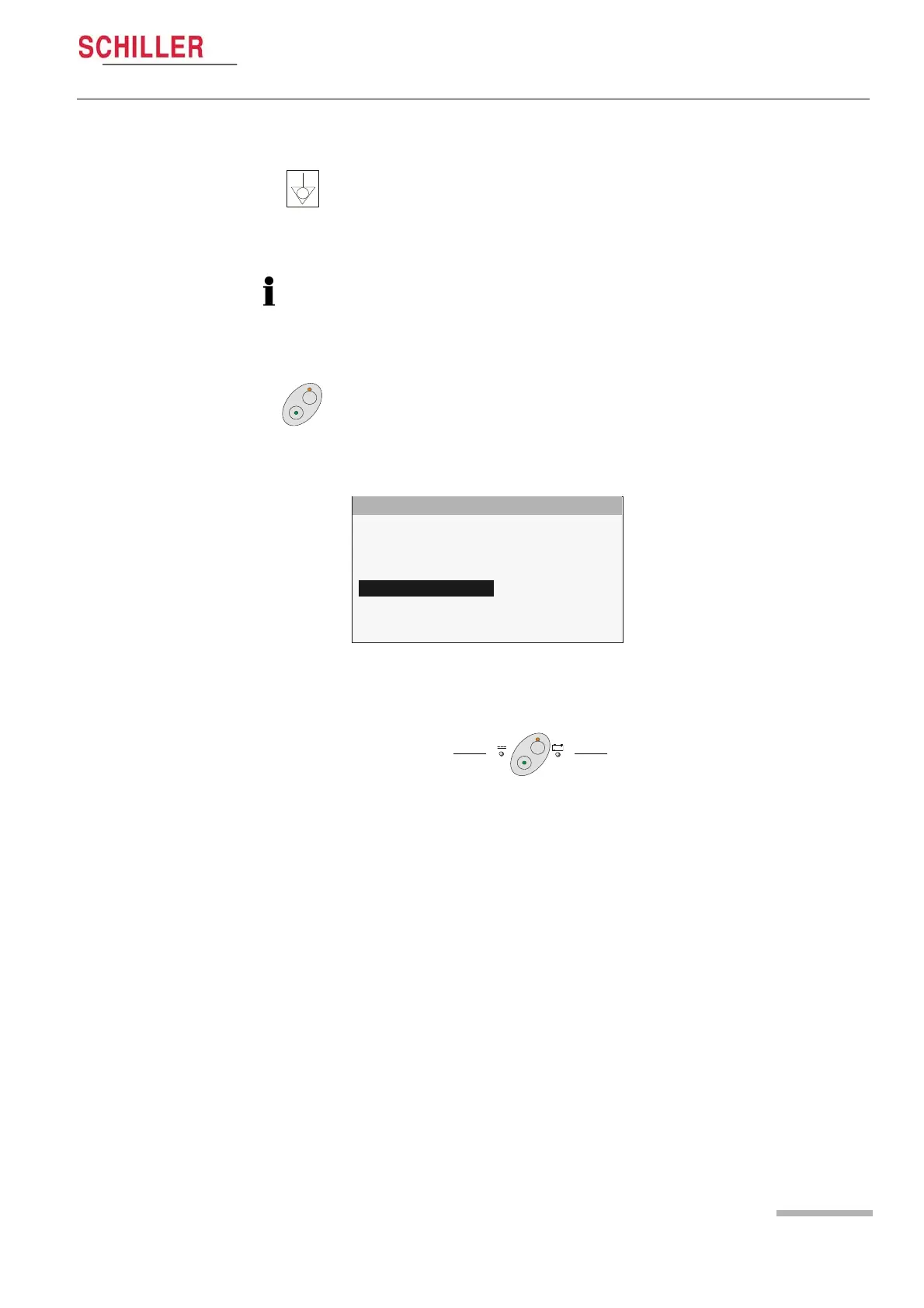

Switching the Unit ON
« Press the On / Off key.
Switching the Unit OFF
« Press the On / Off key - you are prompted to confirm:
EXIT
Do you want to exit
the BP-200 plus?
NO
YES
External 9 V
Supply connected
(via mains
transformer
Backup
battery
operation
