SWS020HM/021HM: Change integrated piston stroke control
Remove defective sensor assembly
Ø Place the SWA in the storage rack, secure and uncouple it.
Ø Disassemble the SWK from the robot and safely set the SWK
aside, Removing the product from the robot arm [
}
90].
Ø Lock and unlock the locking piston and check the signals of the
sensors.
Ø Check sensor cable for damage, replace if necessary.
Ø Switch off the power supply and ensure that there is no residual
energy in the system.

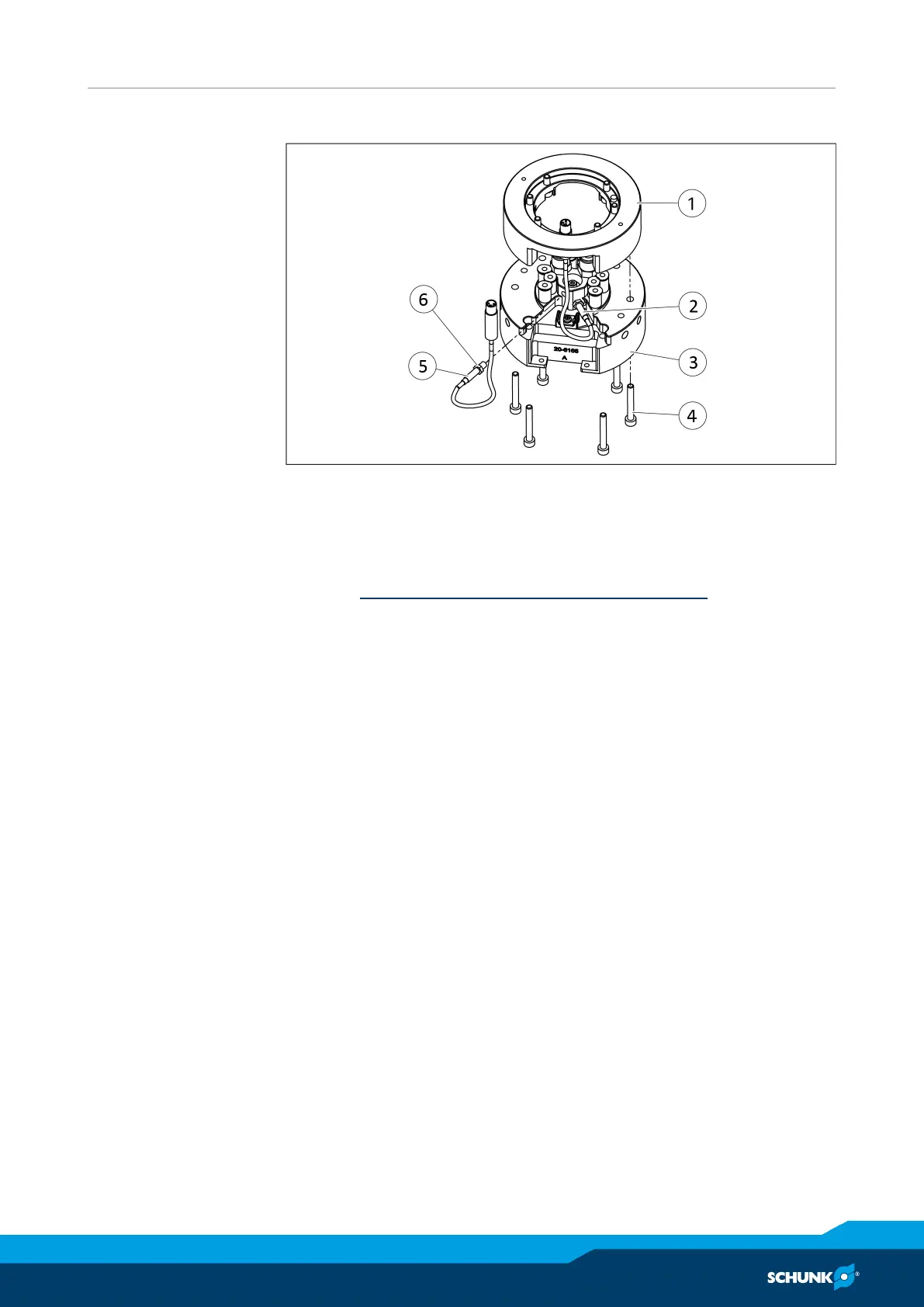

Ø Loosen screws(4) and remove adapter plate(1) from SWK(3).
IMPORTANT!Damage to the sensor cable possible! When
removing the adapter plate, make sure that the sensor cable
has sufficient play.
Ø Remove sensor cable and compressed air lines.
Ø Loosen hexagon nut(6) and remove damaged sensor(2) or(5).
