Maintenance
12.00 | SWS | Assembly and Operating Manual | en | 389456
115

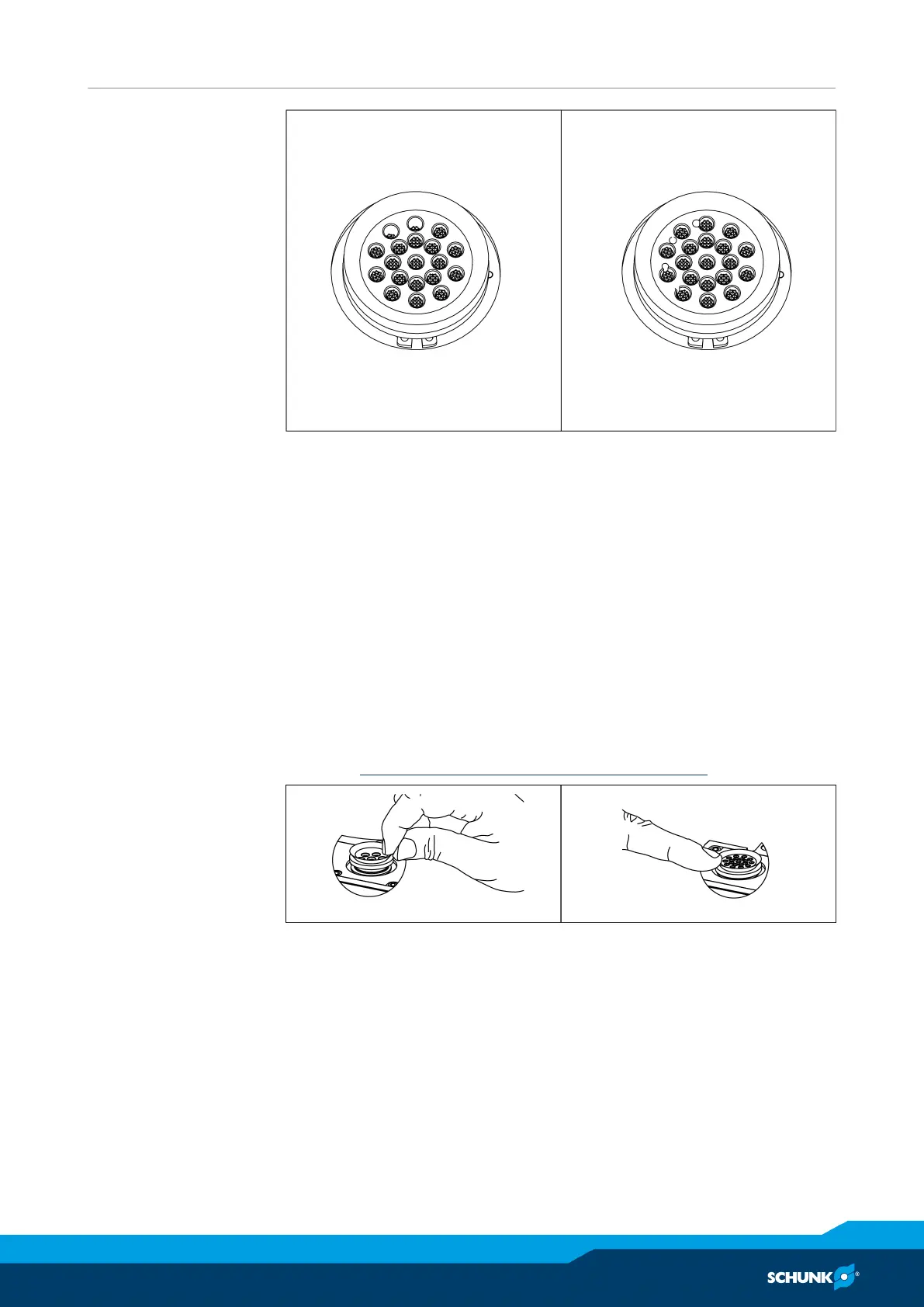

Example illustration for damage to the spring contacts
Ø Loosen wedged spring contacts carefully by applying light
pressure with a blunt tip.
Ø Contact SCHUNK if the pins are damaged. Either individual pins
can be exchanged or a new electric feed-through module is
required.
7.9.2 Replace V-ring seal on electric feed-through module
Ø Place the SWA in the storage rack, secure and uncouple it.
Ø Switch off the power supply and ensure that there is no residual
energy in the system.
Ø Remove the compressed air hose.
Ø Disassemble the SWK from the robot and safely set the SWK
aside, Removing the product from the robot arm [
}
90].
Remove and insert the seal of the electric feed-through module
Ø Pull off the seal from the pin block.
Ø Check seal for wear or damage.
Ø Carefully pull the new seal apart with your fingers and pull it
over the pin block.
Ø Press the seal into the slot of the pin block.
