7.8.3 Change sensor ready-to-lock
Change sensor ready-to-lock
Ø Place the SWA in the storage rack, secure and uncouple it.
Ø Disassemble the SWK from the robot and safely set the SWK
aside, Removing the product from the robot arm [
}
90].
Ø Hold the ferromagnetic object against the sensor surface and
test the presence monitoring LED.
Ø Switch off the power supply and ensure that there is no residual
energy in the system.
Ø Remove the compressed air hose.

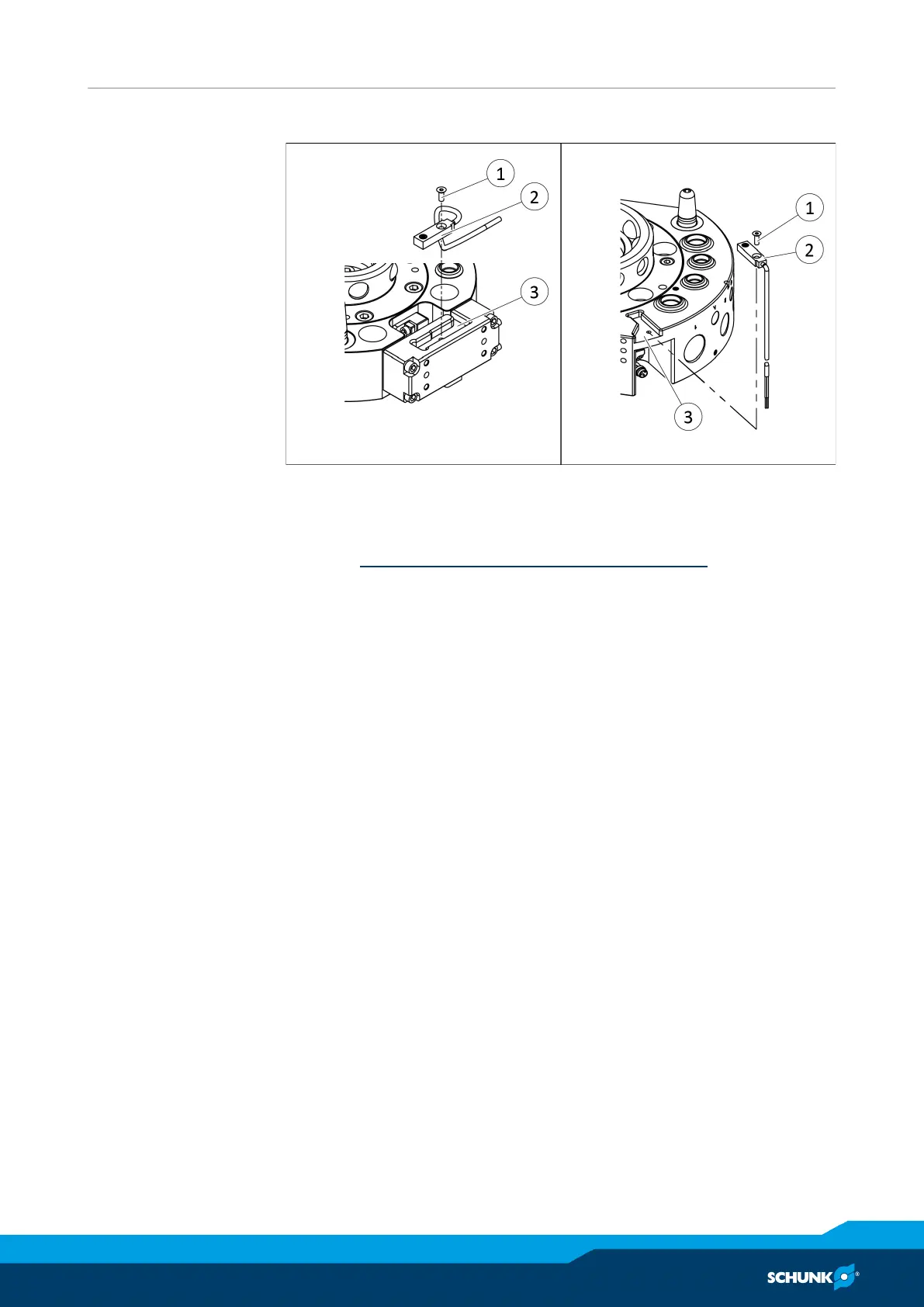

Ø Loosen screw (1).
Ø Remove sensor (2).
Ø Only for SWK076: Guide new sensor cable out from between
mounting kit and SWK.
Ø Apply screw lock to screw(1).
Ø Fasten sensor(2) with screw(1) in recess (3).
✓ Max. tightening torque: 0.4Nm
Ø Hold the ferromagnetic object against the sensor surface and
test the presence monitoring LED.
