Design and description
24
12.00 | SWS | Assembly and Operating Manual | en | 389456
4.2.3 SWS 007
SWK

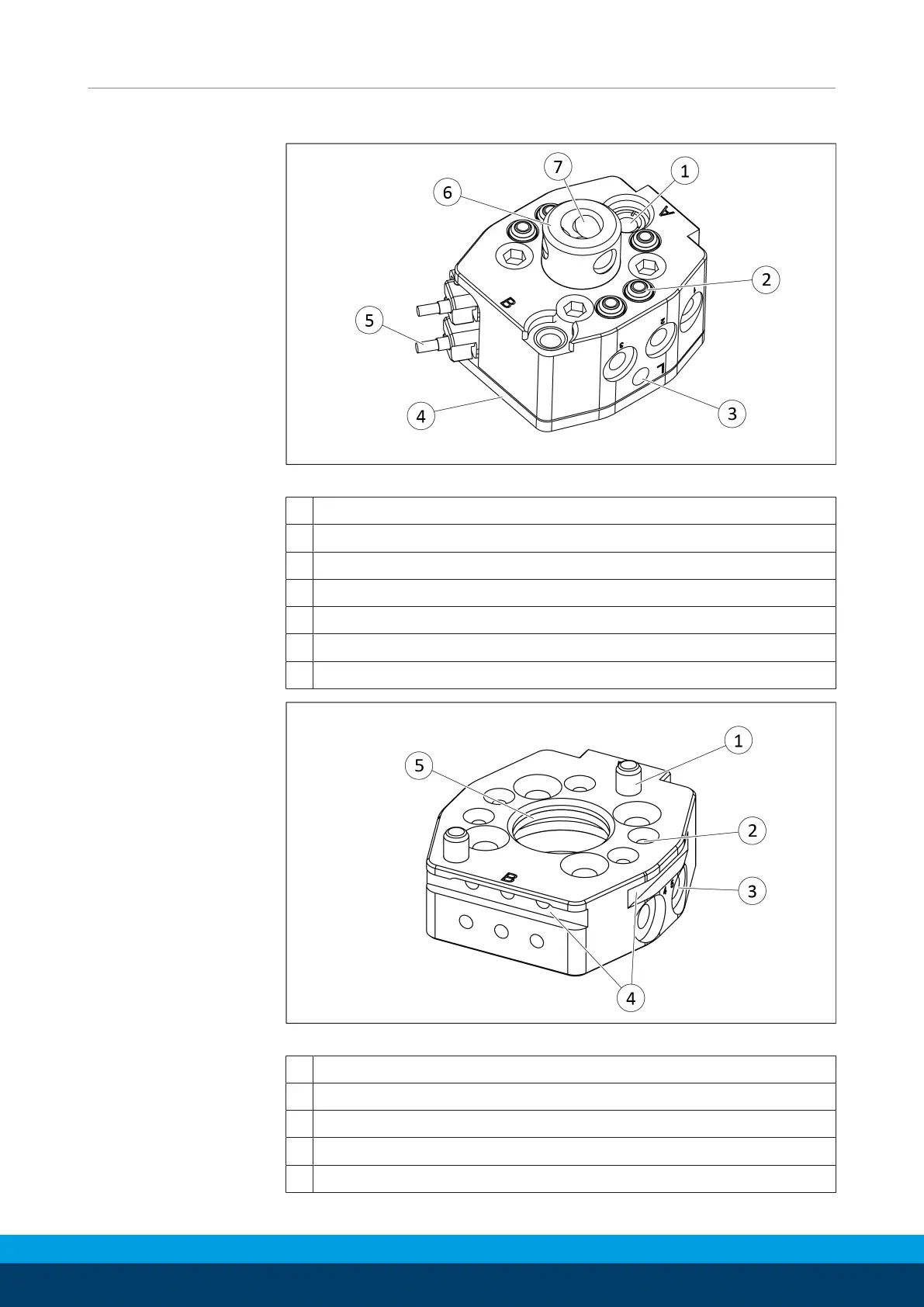

Design SWK 007
1 Alignment pin bushing
2 Pneumatic feed-through with rubber bushing
3 Air supply lock
4 Cover plate
5 Integrated piston stroke control
6 Locking mechanism
7 Locking ball
SWA
Design SWA 007
1 Alignment pin
2 Pneumatic feed-through
3 Port for pneumatic feed-through
4 Slot for depositing in storage rack
5 Bearing race
