Maintenance
130
12.00 | SWS | Assembly and Operating Manual | en | 389456
7.10.14 SWS 071
Variant without
piston stroke control
Variant with external
piston stroke control

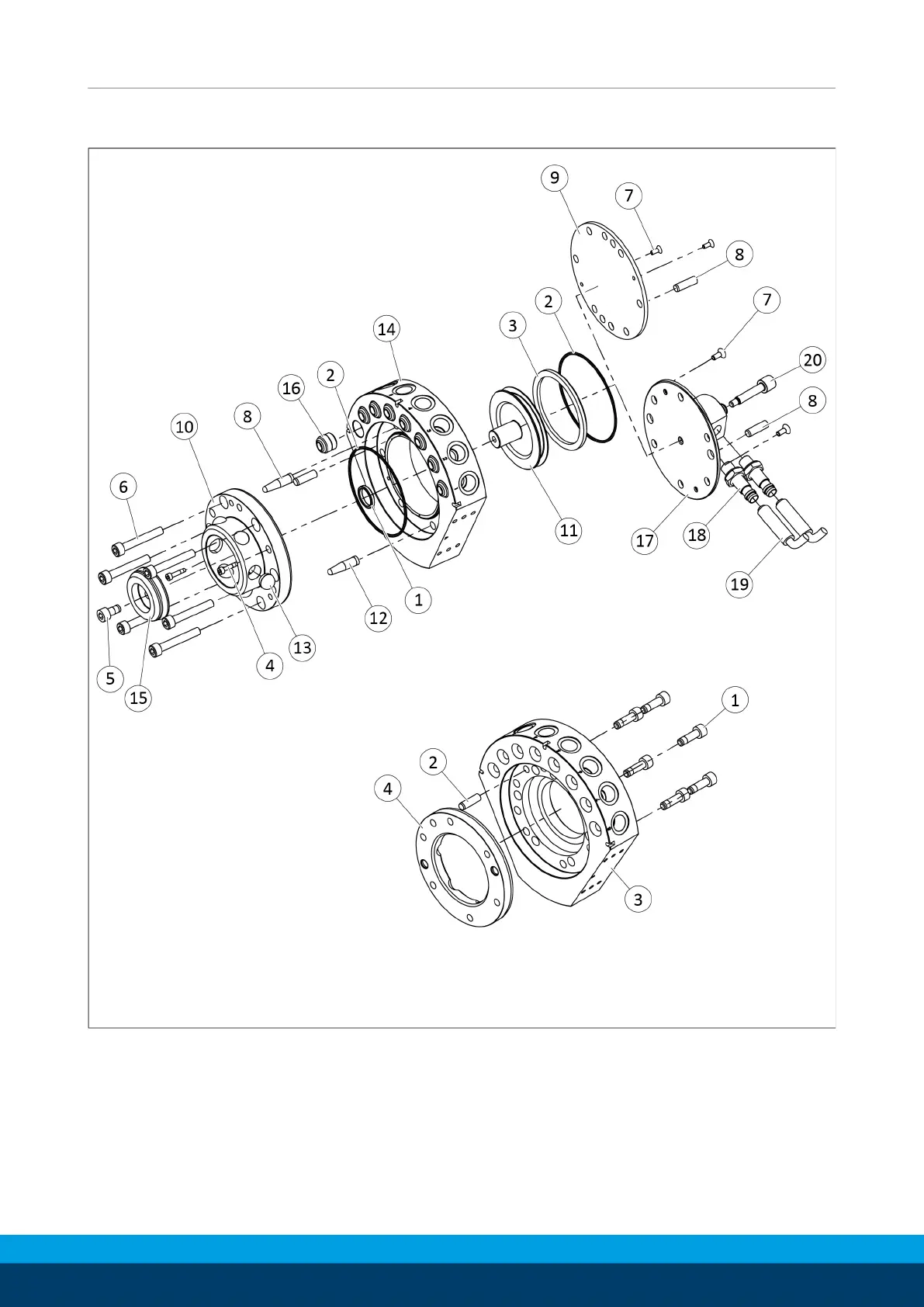

Assembly of SWK 071 (top) and SWA 071 (bottom)
