Maintenance
102
12.00 | SWS | Assembly and Operating Manual | en | 389456

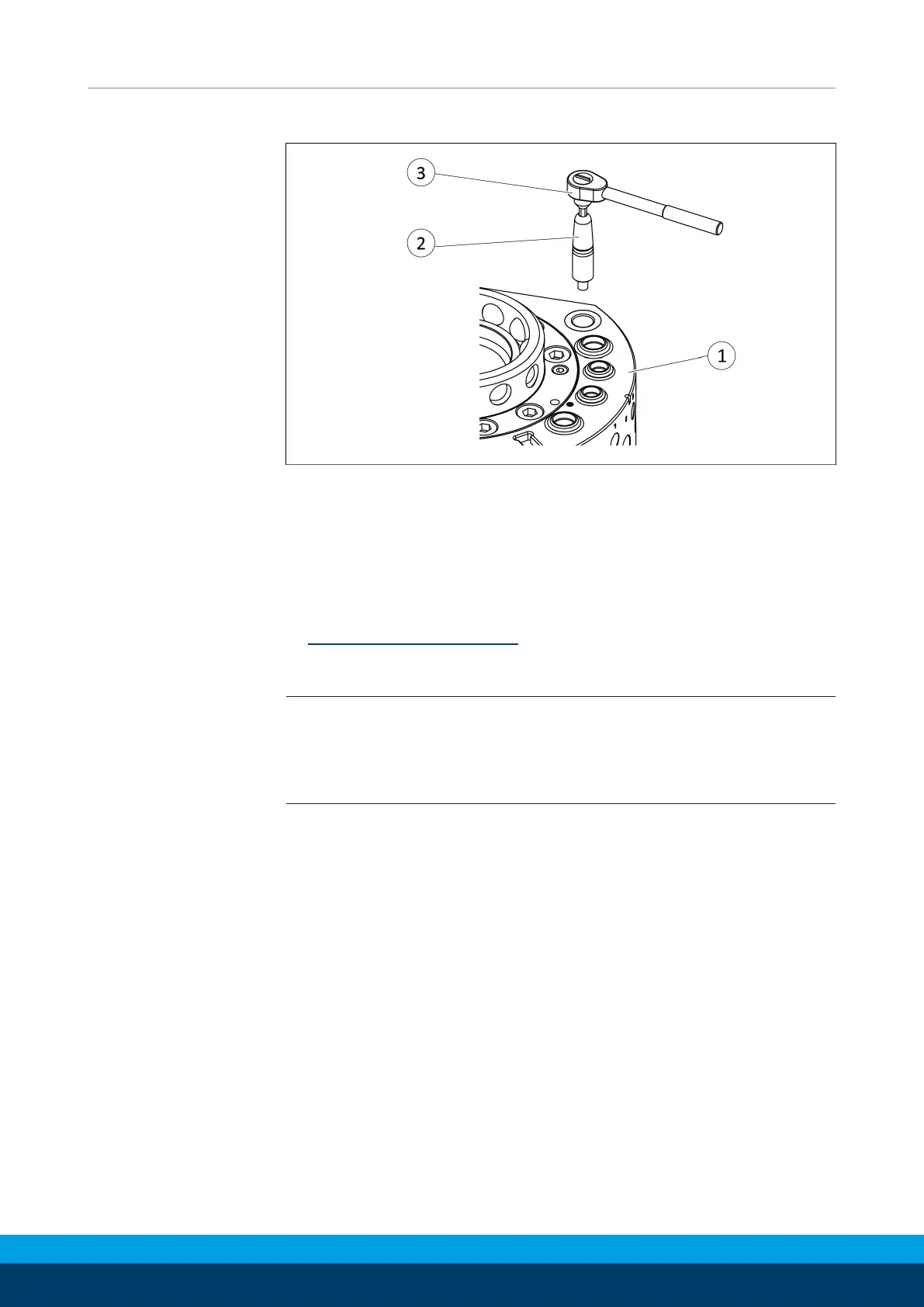

7.7.1.3 Mount a new external alignment pin
Mount a new alignment pin
Ø Apply screw lock to new alignment pin(3).
Ø Insert a new alignment pin(3) in the bore for alignment pins(5)
and tighten with ratchet(1).
✓ Permissible tightening torque: 6.8Nm
Ø Lubricate the new alignment pin(3),
Lubricants/greasing areas [
}
89].
7.7.2 Internal alignment pins
NOTE
The sizes SWS005, SWS011, SWS020, SWS021, SWS040Q,
SWS041, SWS060 and SWS071 are mounted with internal
alignment pins. They are installed in the male coupling.
Ø Please contact SCHUNK for the replacement of internal
alignment pins.
