Maintenance
12.00 | SWS | Assembly and Operating Manual | en | 389456
101
✓ Observe wrench size:
SWS Wrench size of ratchet used [mm]
007 2.5
046 2.5
076 4
110 4
160 4
NOTE
If the alignment pin(3) cannot be loosened, remove the
alignment pin(3) from below,
Disassemble external alignment pins from below [
}
101].

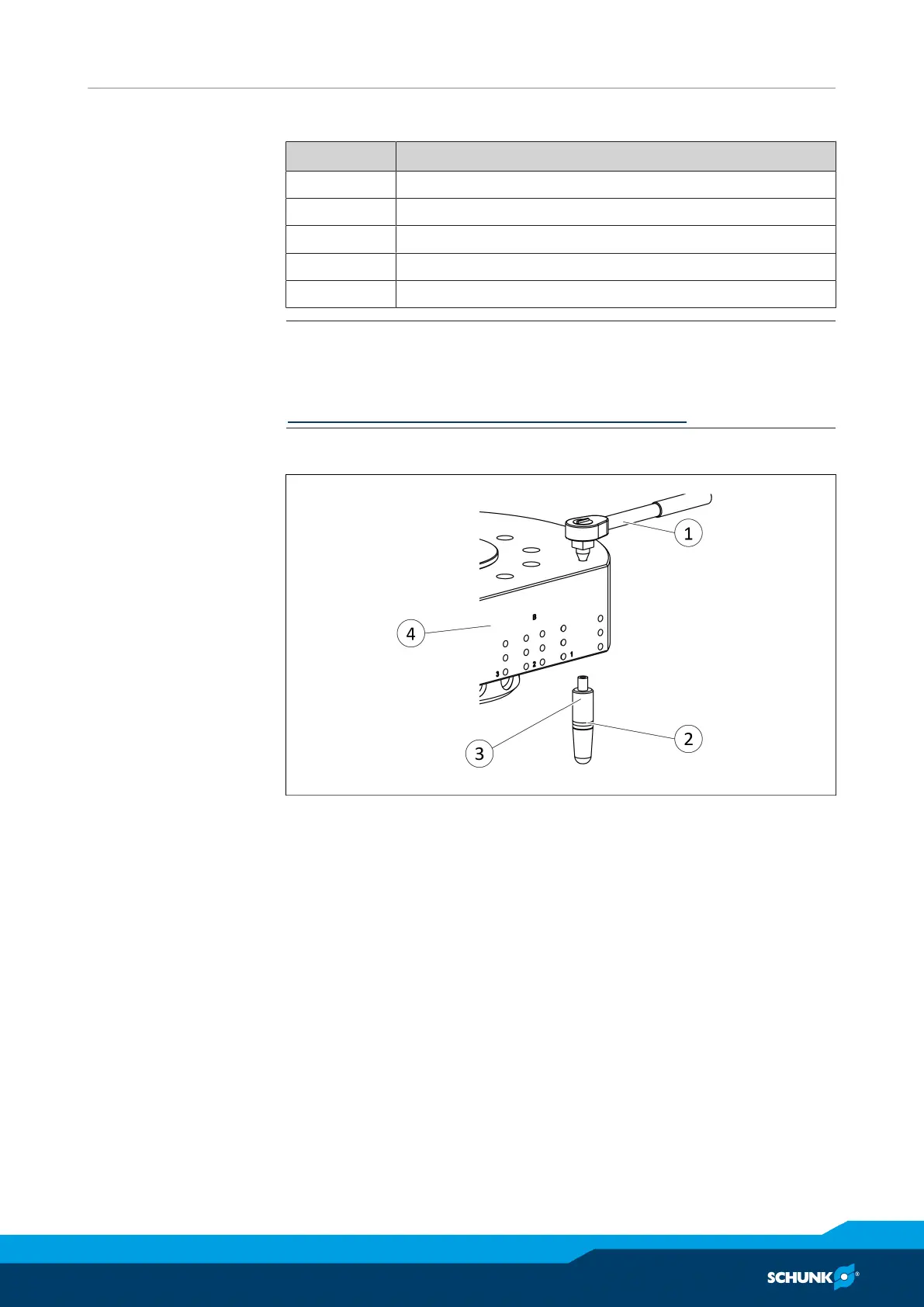

7.7.1.2 Disassemble external alignment pins from below
Alternative option for disassembly of the alignment pin
Ø Turn SWK(4) over.
Ø Loosen set screw(3) with ratchet(1) by turning
counterclockwise.
Ø Remove the alignment pins(2) downwards.
