Assembly
66
12.00 | SWS | Assembly and Operating Manual | en | 389456
5.3.8
SWS 020HM / 021HM
Dimensions of the compressed air connections
SWS
Pneumatic feed-throughs
Air supply lock and unlock
020HM
12x G1/8"
G1/8"
021HM
6x G1/8", 2x G1/4"
G1/8"
SWK 020HM
SWK 021HM

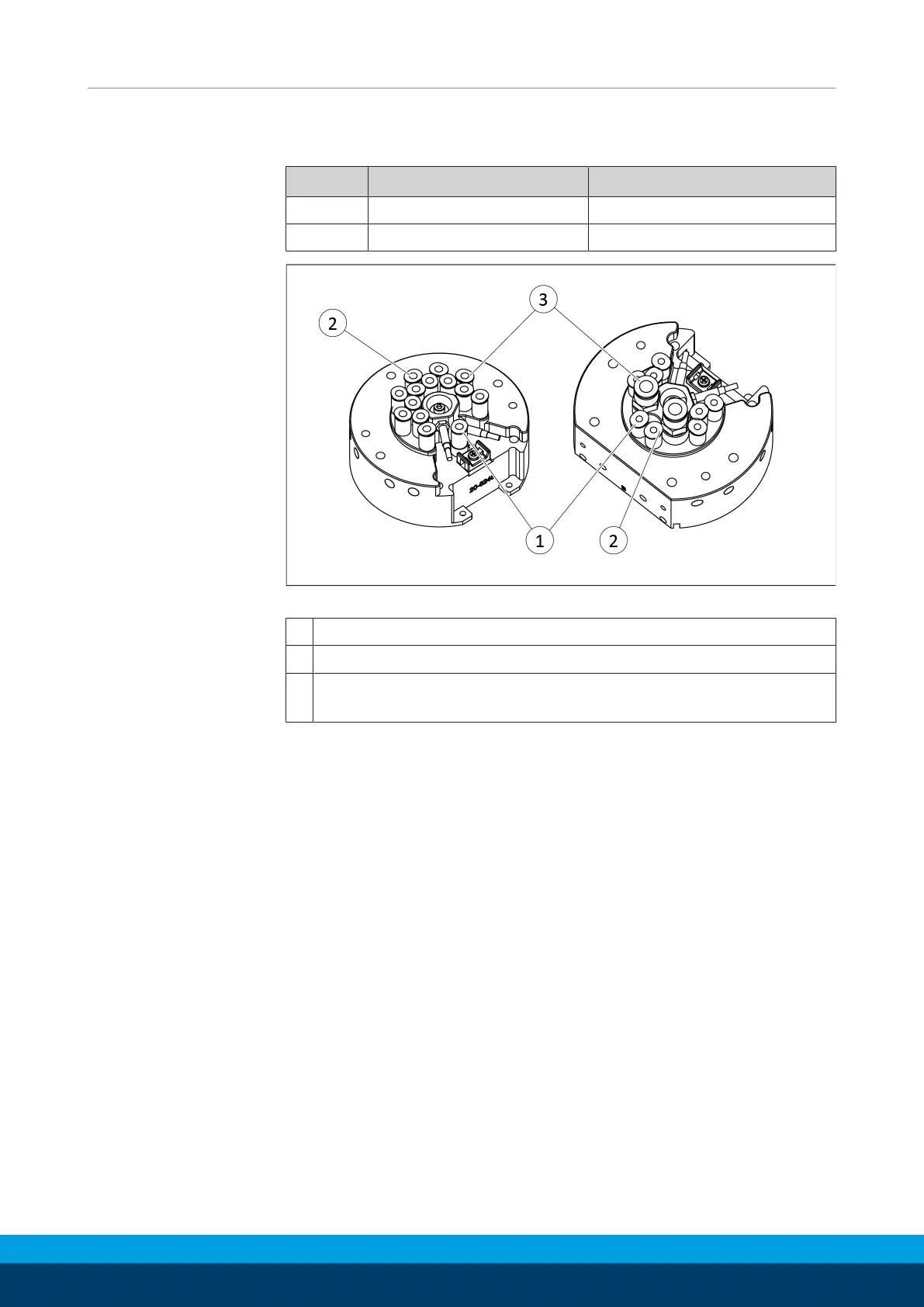

Pneumatic connection SWS020HM/021HM
1
Air supply lock with pneumatic screw connection
2
Air supply unlock with pneumatic screw connection
3
Port for pneumatic feed-through with pneumatic screw
connection
65
67
