Assembly
34
12.00 | SWS | Assembly and Operating Manual | en | 389456
5.2.1 SWS 001

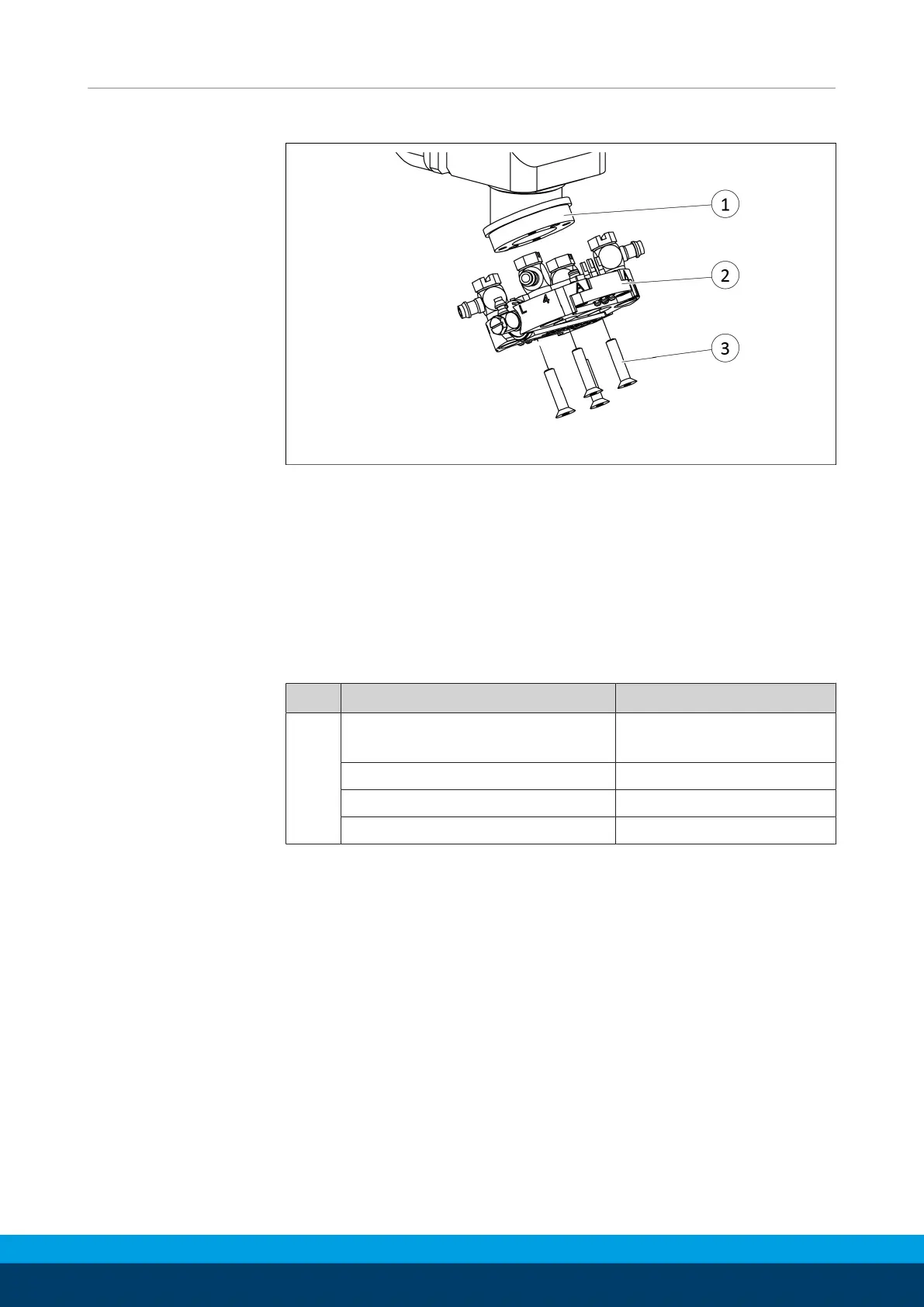

Mounting on robot for SWK001
Ø Clean the mounting patterns on the robot (1) and SWK (2).
Ø Mount optional adapter plate between the robot and SWK.
Ø Insert the SWK(2) with integrated dowel pins into the bores on
the robot.
Ø Apply screw lock to screws(3).
Ø Secure SWK (2) to robot (1) with screws (3).
✓ Observe the tightening torque for the mounting screws.
Item Mounting SWK001
3 Mounting screw according to
standard
M3x14,
DIN EN ISO 10642
Strength class 8.8
Max. tightening torque [Nm] 0.79
Threadlocker Loctite ® 222
