Maintenance
12.00 | SWS | Assembly and Operating Manual | en | 389456
109
7.8.2 Change external piston stroke control
SWS011 / 020 / 021

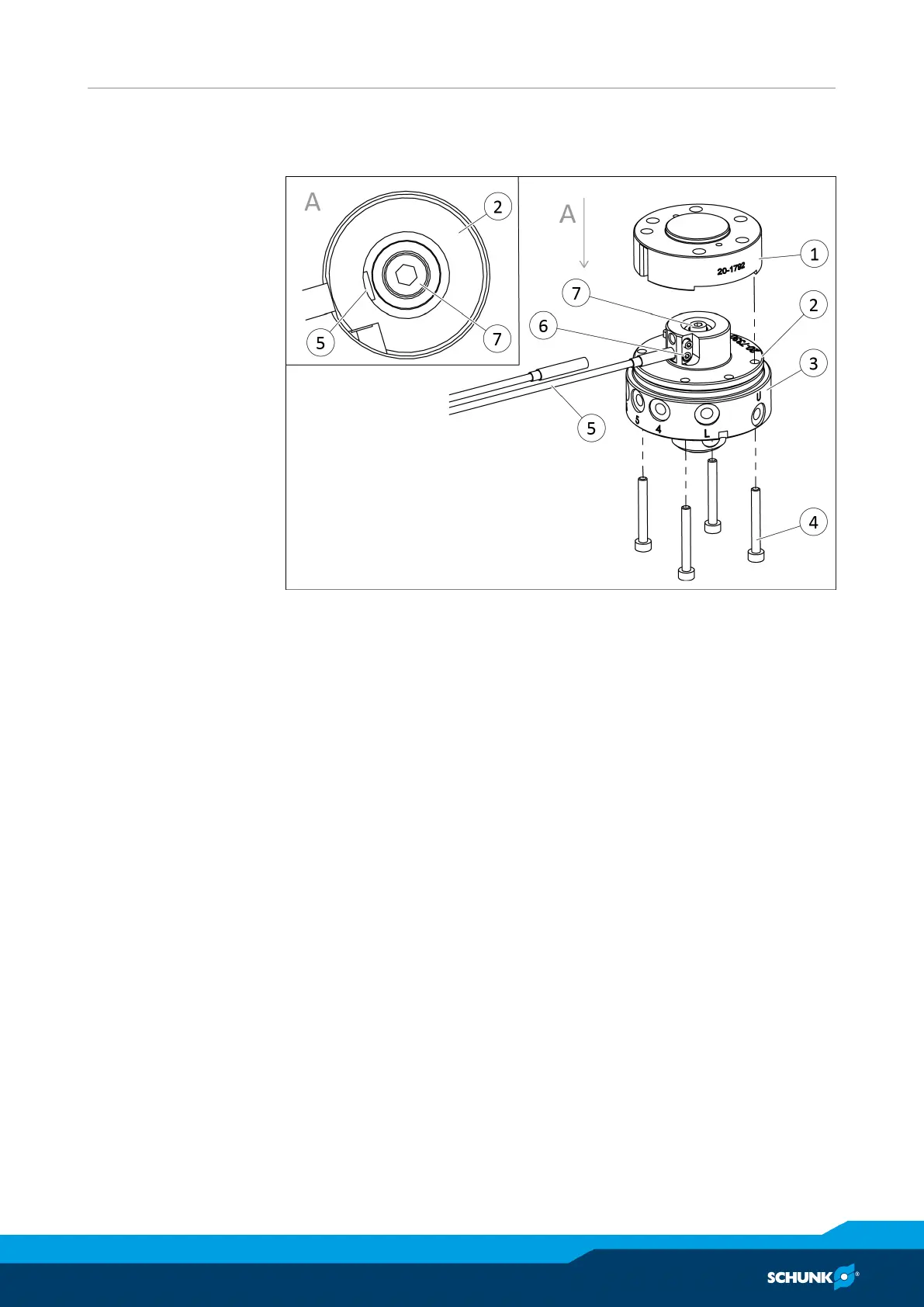

Change external piston stroke control, A = View from above, shown as an example on
SWK011
Remove defective sensor assembly
Ø Place the SWA in the storage rack, secure and uncouple it.
Ø Loosen screws(4) and remove SWK(3) from the adapter plate
for sensor assembly(1).
Ø Check sensor cable for damage, replace if necessary.
Ø Lock and unlock the locking piston and check the signals of the
sensors.
Ø Switch off the power supply and ensure that there is no residual
energy in the system.
Ø Remove the compressed air hose.
Ø Loosen screw(6) and unscrew the damaged sensor(5) from the
sensor assembly(2).
