5.3.3 SWS 005
CAUTION
Damage to the product due to lack of compensation possible!
The piston of the SWK005 moves in the opposite direction when
unlocked, i.e. in the direction of the SWA. The end effector is
actively repelled with the aid of the release bolt in the SWA. If
there is no possibility for displacement due to the tool rack or the
robot, the product can wear out faster or become damaged
beyond repair after a short time.
• Ensure sufficient compensation in the direction of the release
bolt, which compensates for the separation of SWK and SWA.
✓ Min. distance when locking [mm]: 1.5
✓ Max. distance when locking [mm]: 3
Dimensions of the compressed air connections
SWS Pneumatic feed-throughs Air supply lock and unlock
005 6x M5 M5

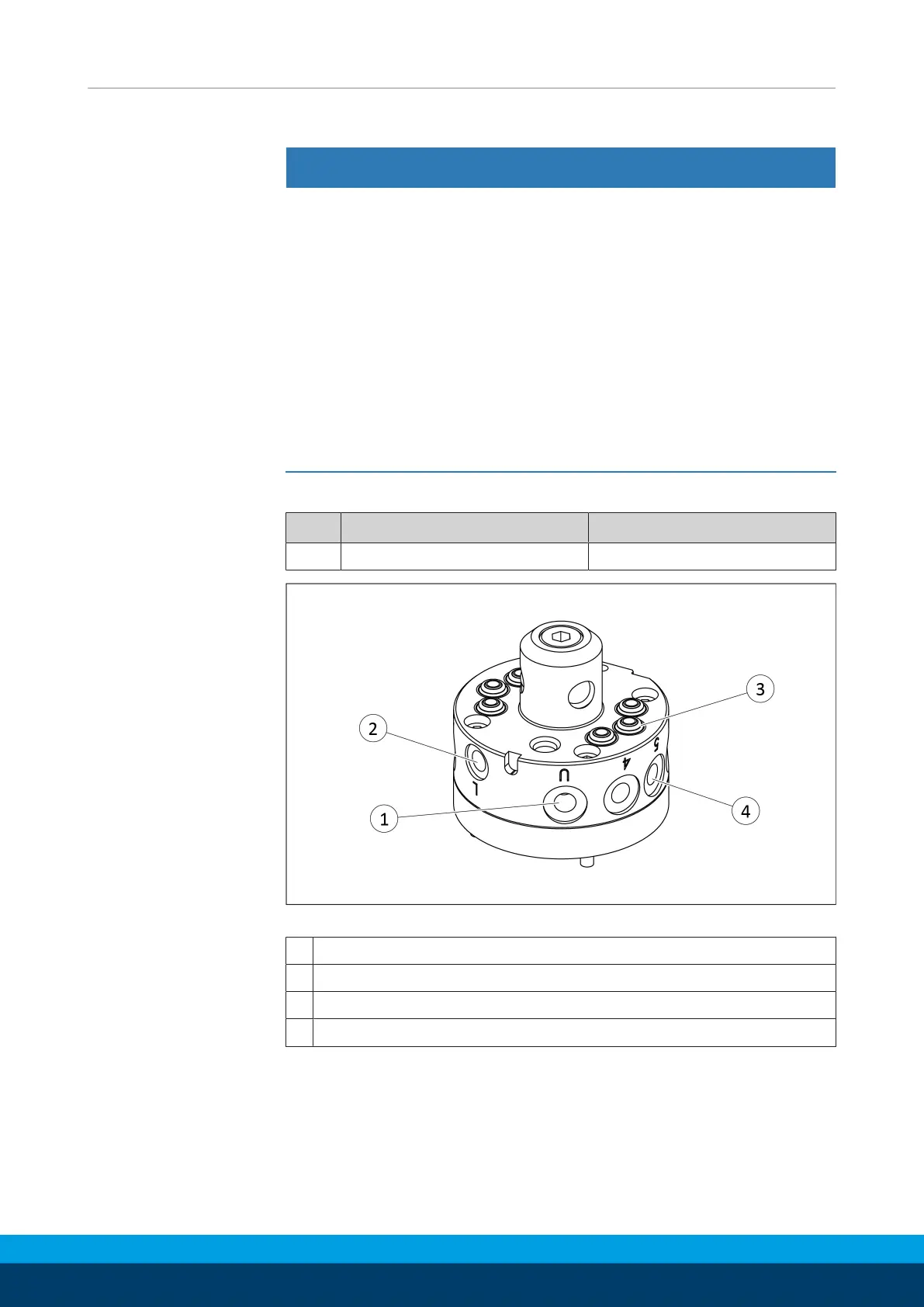

Pneumatic connection SWK005
1 Air supply unlock
2 Air supply lock
3 Pneumatic feed-through with rubber bushing
4 Port for pneumatic feed-through
