Assembly
12.00 | SWS | Assembly and Operating Manual | en | 389456
37
Ø In the event that the cover plate(6) has to be removed:
Remove the cover plate(6) from the SWK(7).
IMPORTANT!Product may leak! When removing the cover
plate, ensure that the O-ring remains in the SWK
Ø Insert dowel pin(5) into bore on cover plate/SWK.
Ø Apply screw lock to screws(8).
Ø Insert SWK(7) with dowel pin(5) into the bore in the adapter
plate.
Ø Secure SWK(7) to adapter plate(3) with screws(8).
✓ Observe the tightening torque for the mounting screws.
Item Mounting SWK005 SWK011
5 Alignment pin Ø3 x 8 Ø3 x 10
8 Mounting screw according to
standard
M3x25,
DIN EN ISO 4762
Strength class 8.8
Max. tightening torque [Nm] 1.13
Threadlocker Loctite ® 222

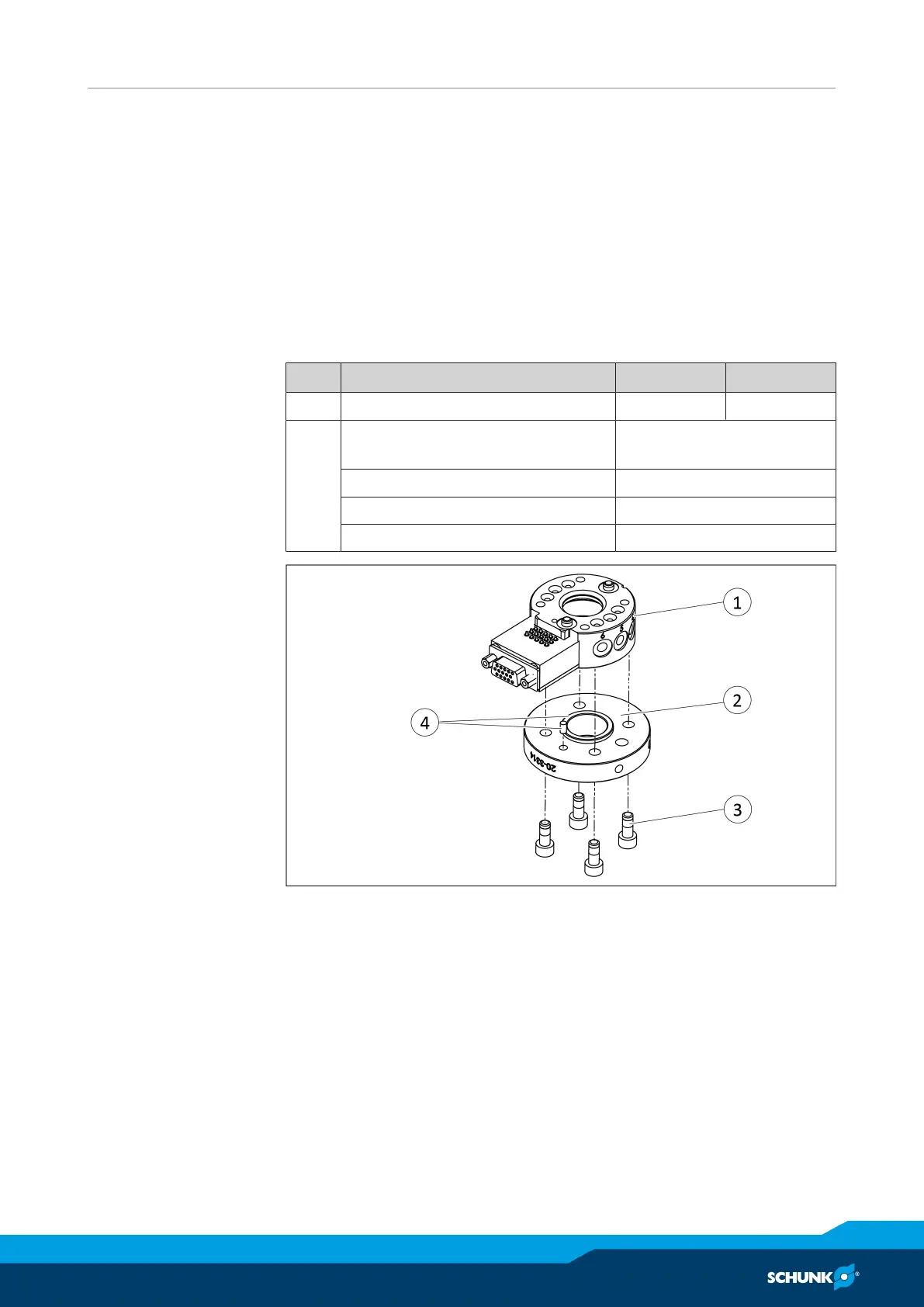

Mount adapter plate (shown as an example) to SWA, illustrated on SWA011
Ø Clean mounting surfaces on SWA (1) and adapter plate (2).
Ø Insert the adapter plate(2) with two alignment pins and/or with
one alignment pin and the centering collar on the adapter
plate(4) into the holes provided for this purpose.
Ø Fasten the adapter plate (2) to the SWA (1) with screws (3).
✓ Observe the tightening torque for the mounting screws.
Ø Mount the end effector.
