Assembly
62
12.00 | SWS | Assembly and Operating Manual | en | 389456
5.3.4.1 Axial pneumatic feed-throughs
The SWA007 has axial ports for pneumatic feed-through, which
can optionally be used instead of the radial connections.

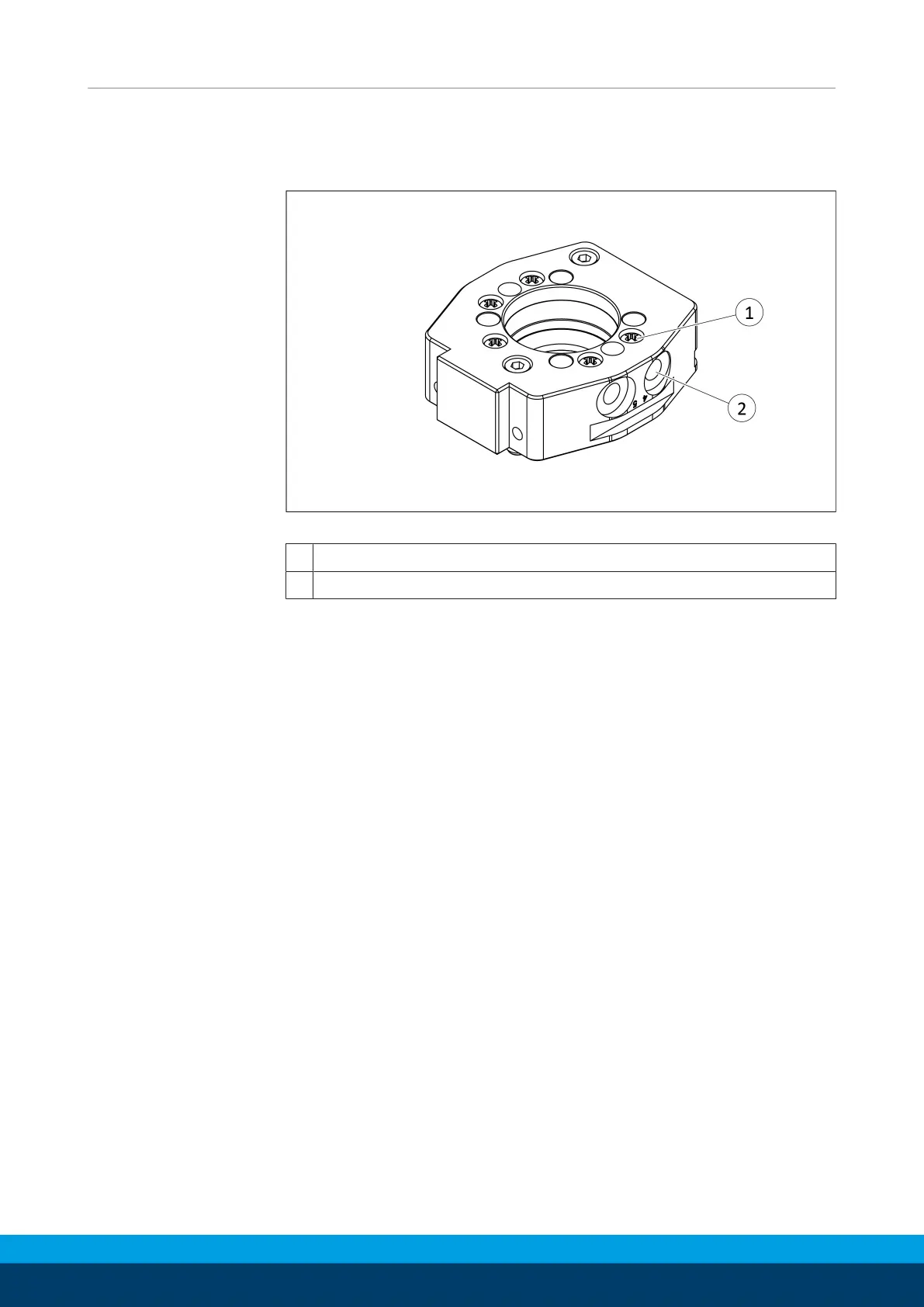

Axial pneumatic feed-throughs on SWA007
1 Axial port for pneumatic feed-through
2 Radial port for pneumatic feed-through
Ø Remove screws on the bottom of the SWA from the axial ports
for pneumatic feed-through(1).
Ø Seal the axial ports for pneumatic feed-through(1) with O-rings
from the accessory kit.
Ø Close the radial ports for pneumatic feed-through(2) with
plugs.
