SCHUNK WSG 50 - Permitted Finger Load

Technical data
16
04.00 | WSG 50 | Assembly and operating manual | en | 389474

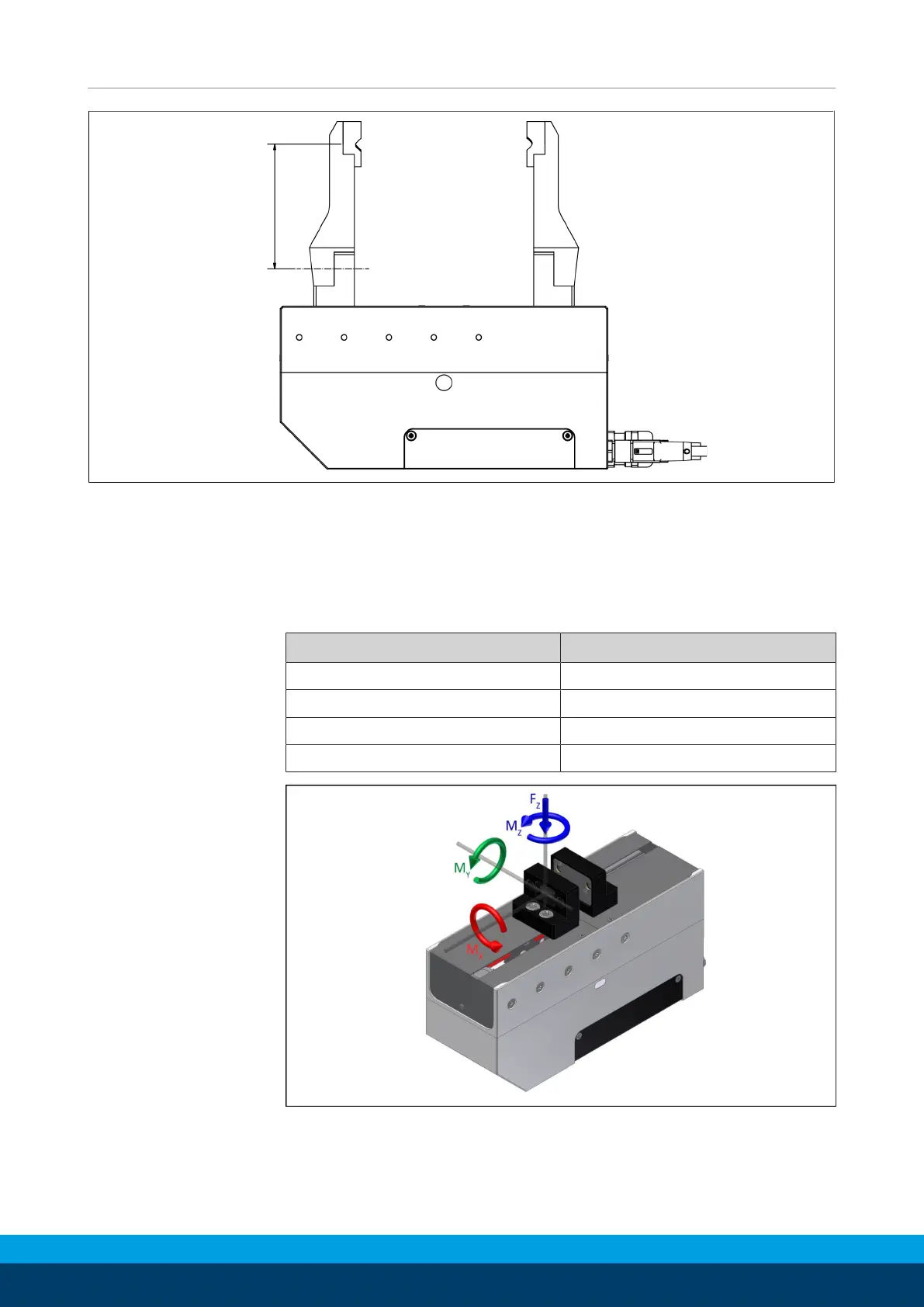

Finger length
Determining the clamping height
3.2.1 Permitted finger load
The following table shows the permitted load of the finger. The
specified load may be applied simultaneously and in addition to
the gripping force.
Mechanical Load Value
Fz [N], max. 80
Mx [Nm], max. 3
My [N], max. 3
Mz [N], max. 2
Finger load
