3.4.2 Connection of own lines
To use the integrated interfaces for the CAN and Profibus, as well
as the IO pins, you can connect your own lines. Please note here
that you should only use screened cables and to feed the cable
through the intended hole you should use the supplied threaded
EMC cable gland. This is the only way to ensure that the product
still conforms to the EMC standards and meets the given interface
specifications, even after you have connected your own cables.
When screwing in the EMC cable gland, please ensure that the
metal springs in the gland are in clean contact with the cable's
screening braid as shown in "Installation of the EMC fitting"
EMC cable gland
Made by: U.I. Lapp GmbH, Stuttgart, type: SKINTOP MS-SC-M, item
number: 53112610.

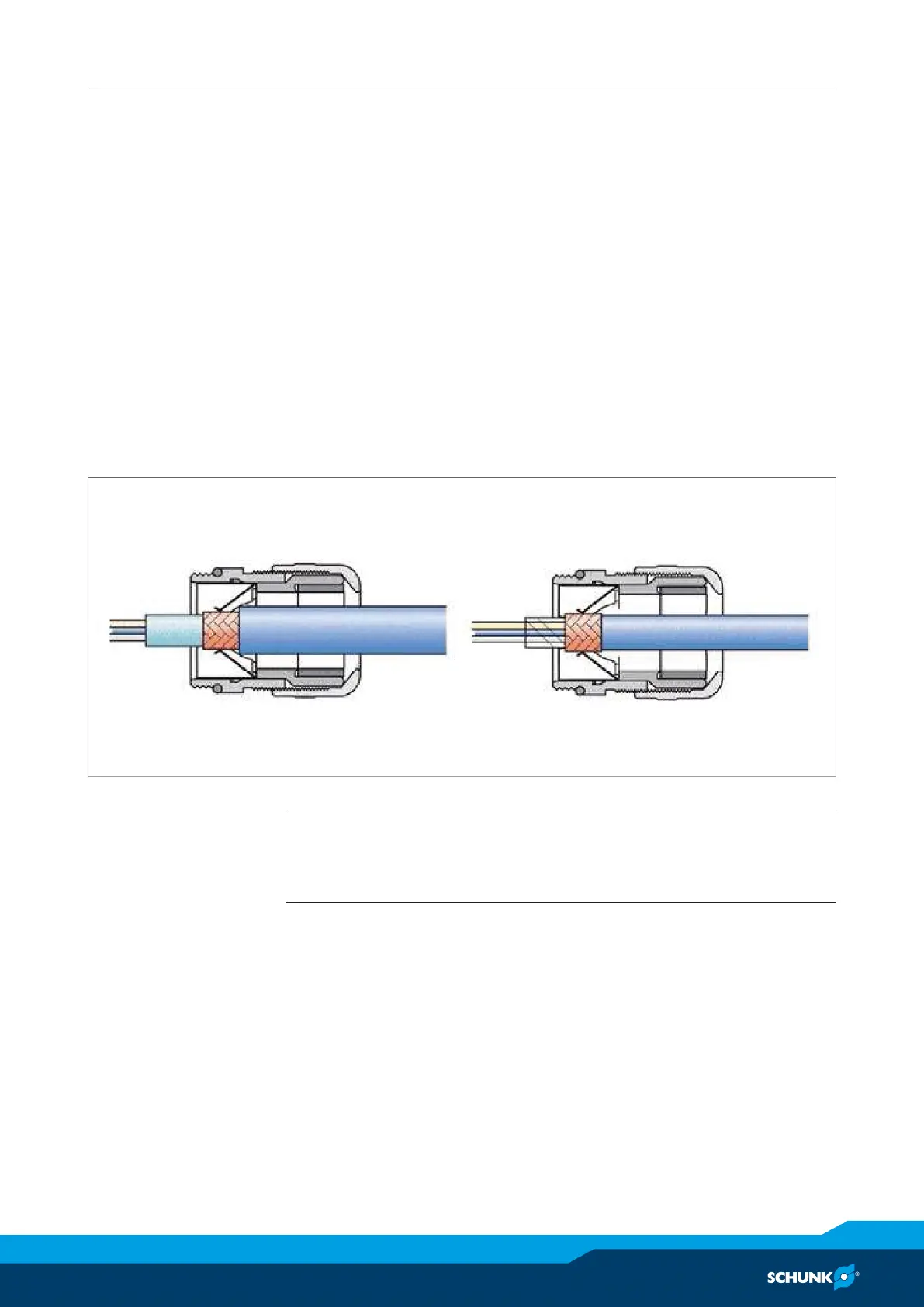

Installation of the EMC fitting
NOTE
SCHUNK recommend only using screened cables and EMC cable
glands.
