Design and description
04.00 | WSG 50 | Assembly and operating manual | en | 389474
33
4 Design and description
4.1 Design

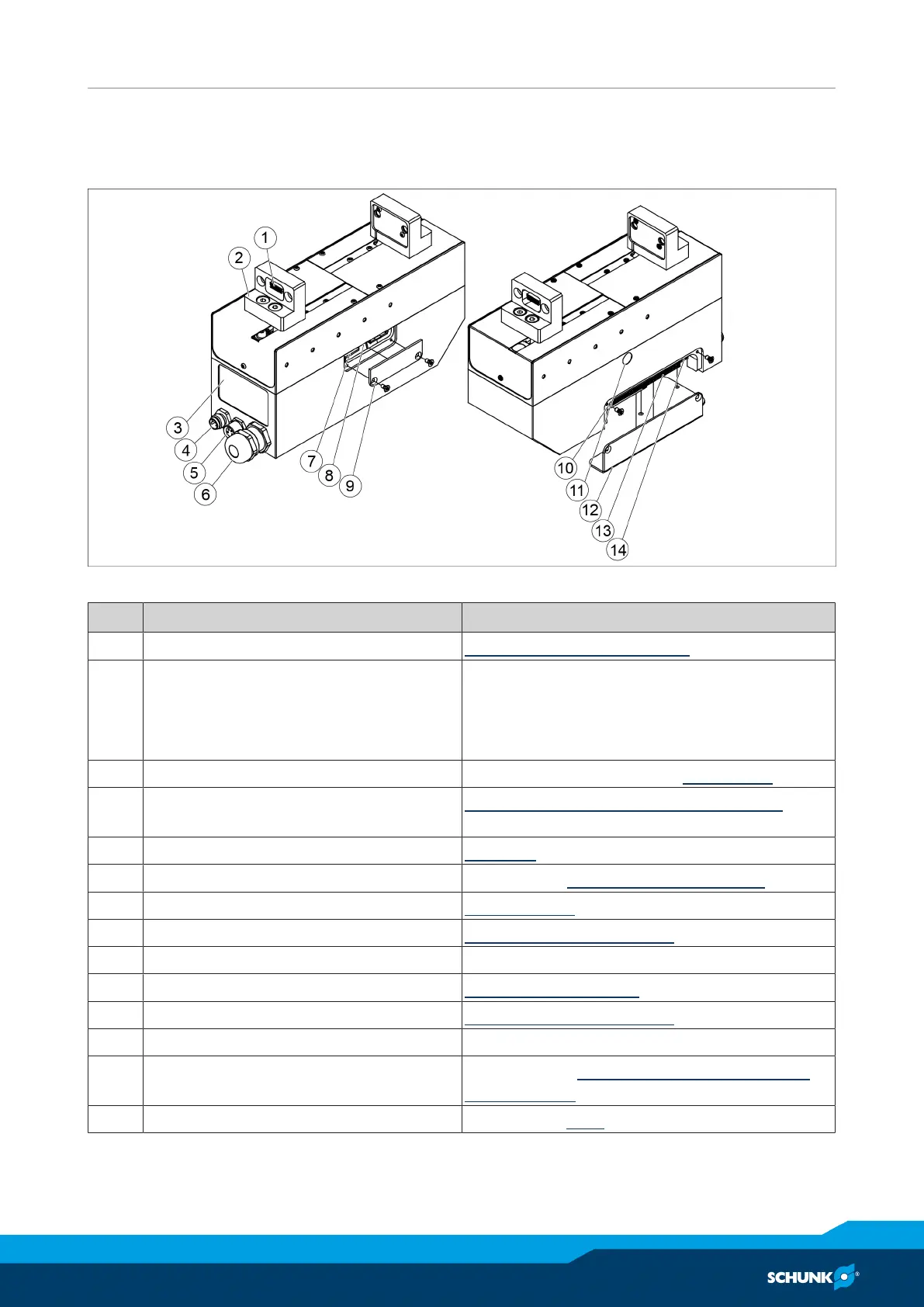

Components and connectors of the WSG 50
Item Designation Description / Hinweis
1 Sensor port Base jaw with a sensor port [
}
29]
2 Base jaw with standard sensor interface for gripper
fingers with integrated sensors,
direct detection and evaluation by gripper
control system
3 Name plate Information on name plate, Name plate [
}
32]
4 Connector for power supply and
RS232
Power supply and RS232 (serial interface) [
}
25]
5 Connector Ethernet Ethernet [
}
27]
6 Cable gland EMC-fitting, Connection of own lines [
}
23]
7 Memory card Memory card [
}
46]
8 Communication-LEDs Display of operating state [
}
47]
9 Cover plate serviceinterface
10 Switch for terminalbus Termination resistors [
}
24]
11 Display of the operating state Display of operating state [
}
47]
12 Cover plate terminal strip
13 Terminal strip Assignments, Assignments for the internal
terminal strip [
}
21]
14 Fuse 2A time lag, Fuse [
}
24]
