SCHUNK WSG 50 - Assignments for the Internal Terminal Strip

Technical data
04.00 | WSG 50 | Assembly and operating manual | en | 389474
21
3.4.1 Assignments for the internal terminal strip

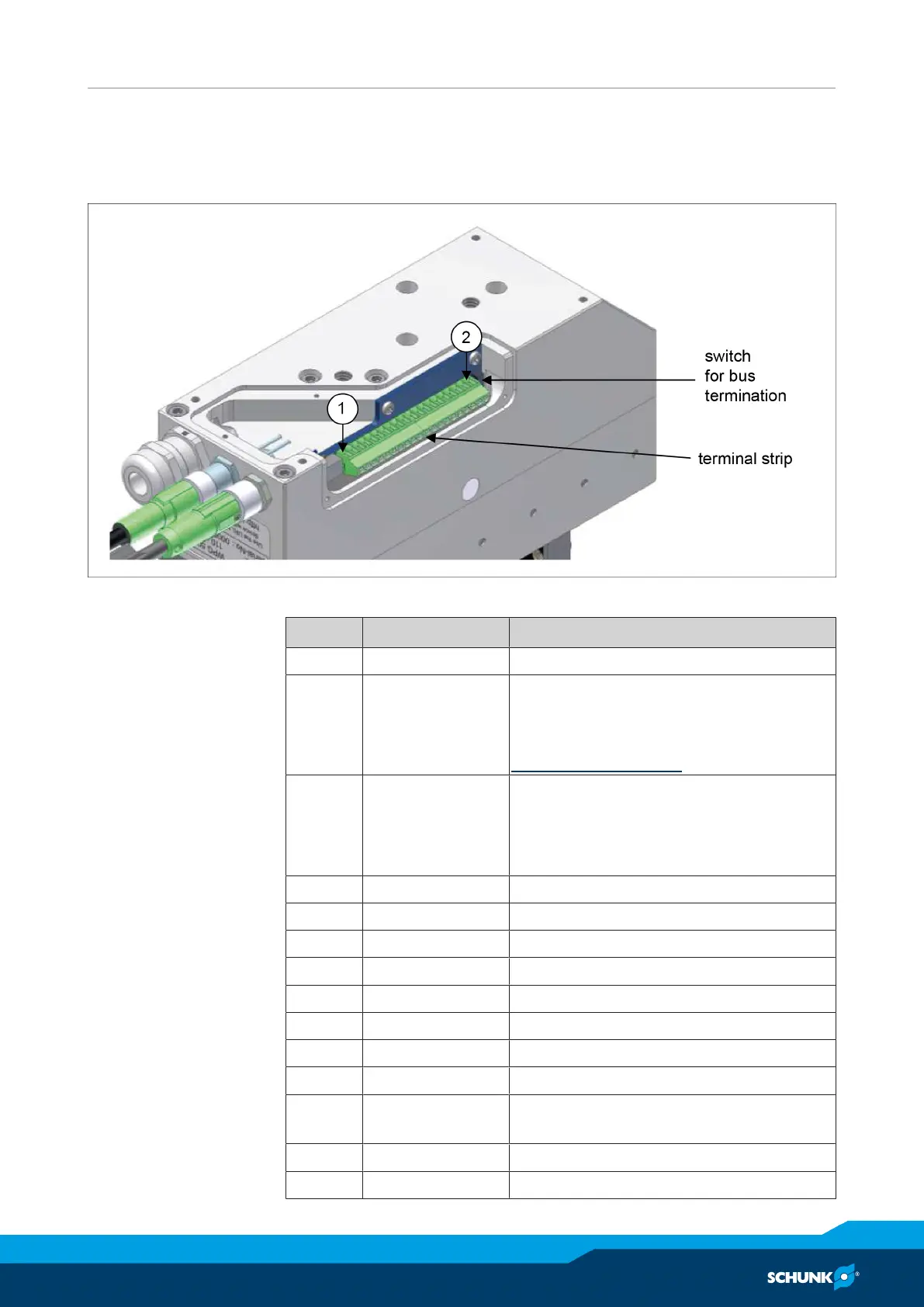

All of the interfaces are accessible via the product's integrated
terminal strip, which is under the connection lid.
Integrated terminal strip and connections
Terminal Designation Function
1 CASE Housing (protective conductor)
2 +24V LOGIC Supply voltage for the locic parts: +24V
DC
For optional connection options,
Electrical connection [
}
38]
3 +24V POWER Supply voltage for the power
components: +24V DC
or common supply connection for
power and logic
4 GND Supply voltage: Mass
5 ENTD+ Ethernet: Transmit line +
6 ENTD- Ethernet: Transmit line -
7 ENRD+ Ethernet: Receive line +
8 ENRD- Ethernet: Receive line -
9 TXD RS-232: Data output
10 RXD RS-232: Data input
11 GND Ground, reference voltage for RS-232
12 GND
IO
Ground, reference voltage for CAN,
Profibus and digital I/O
13 CAN-H CAN-Bus H
14 CAN-L CAN-Bus L
