Assembly
40
04.00 | WSG 50 | Assembly and operating manual | en | 389474
5.4 Installation of the fingers
To install the standard fingers, please use the fixing material
supplied with the fingers. The centering sleeves supplied with the
fingers must be used during the installation. This is particularly
necessary if the finger has an electrical interface to the sensor port
as otherwise the sensor port's connector can be damaged.

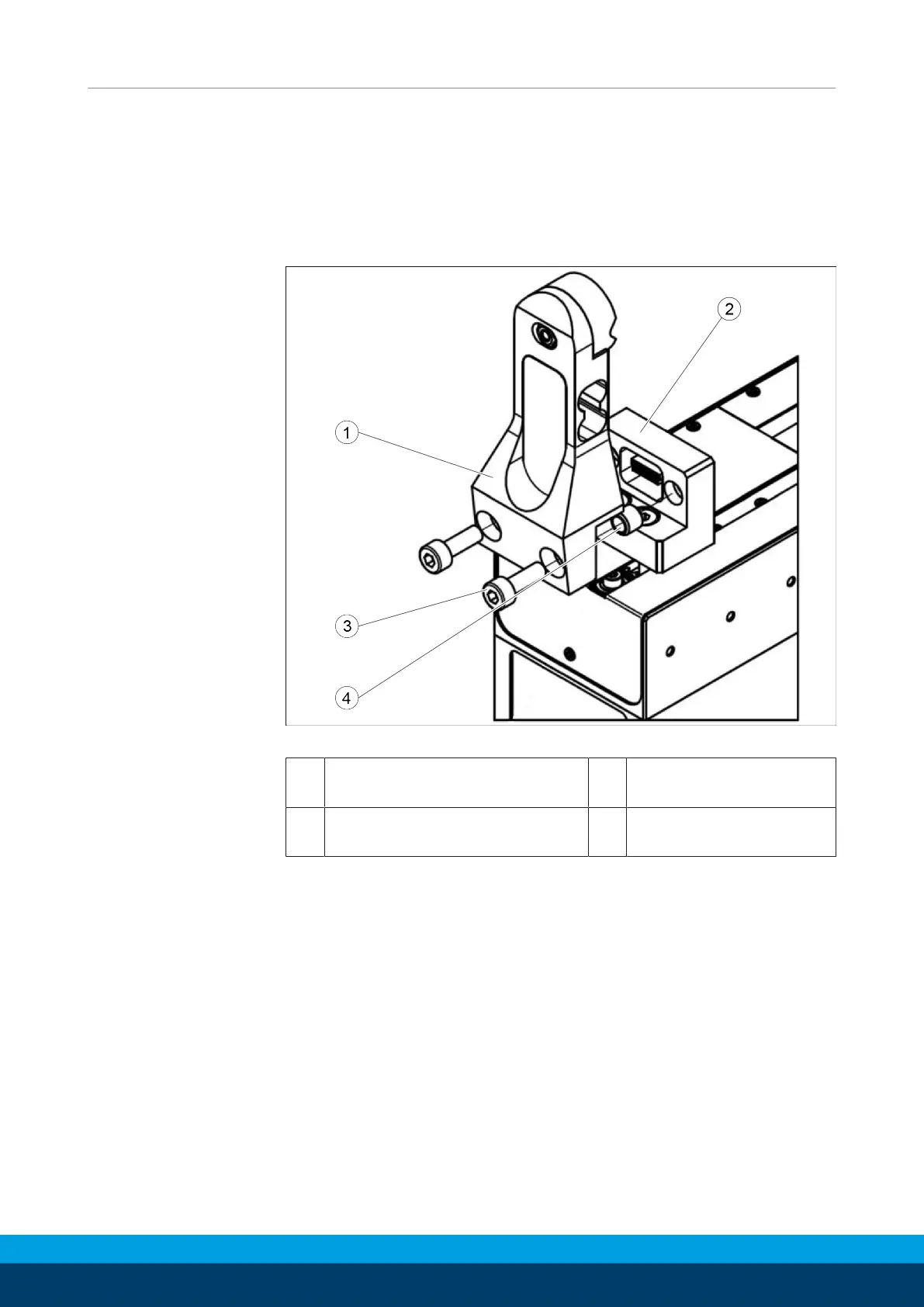

Installation of the fingers
1 Force measurement finger ABF
WSG32/50-DV
2 Base jaw
3 Screw M4, ISO 4762
Tightening torque, max.: 2.5 Nm!
4 Centering sleeve
