Assembly
04.00 | WSG 50 | Assembly and operating manual | en | 389474
39

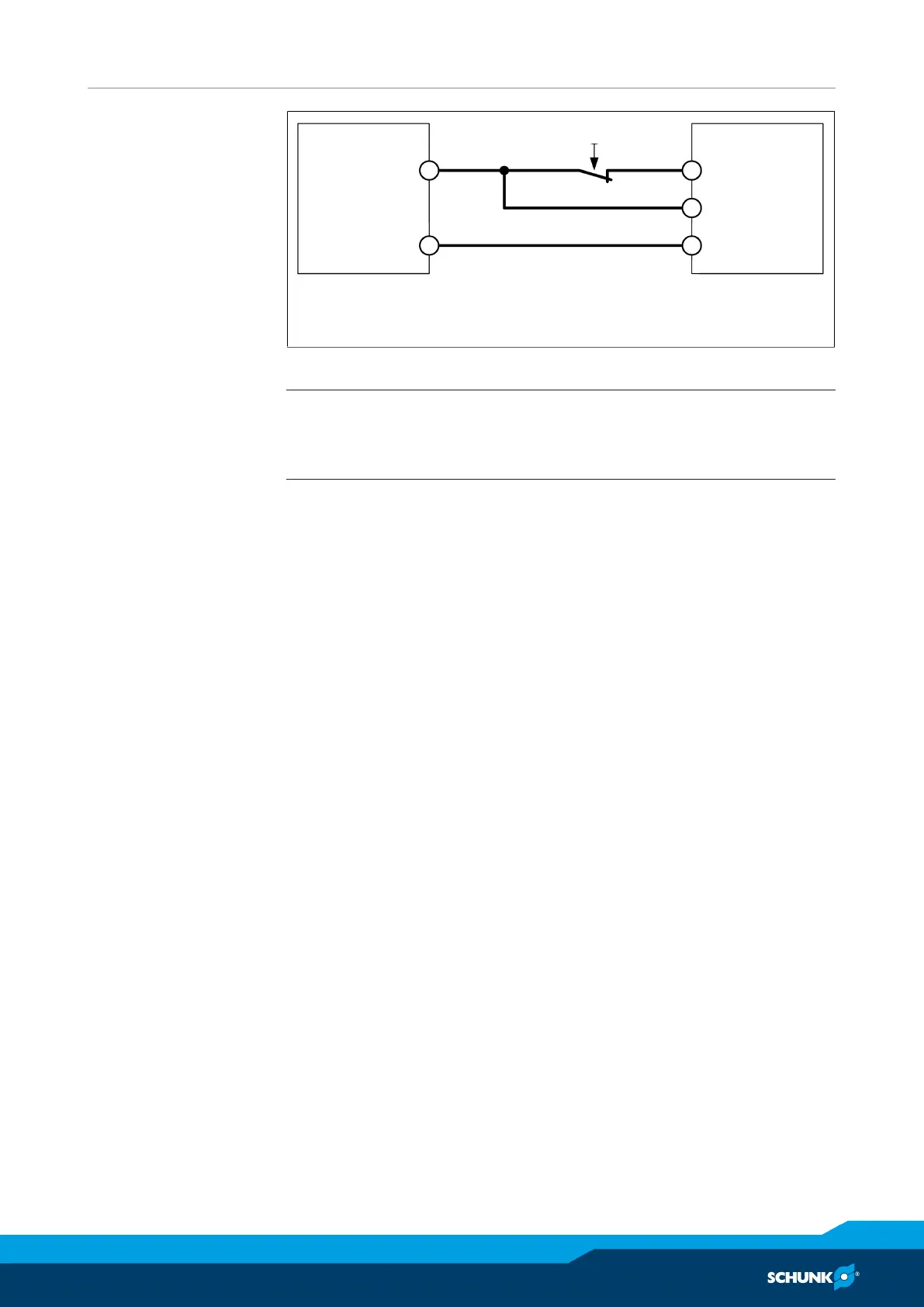

Force off
Load supply separated from logic supply
Power supply
Gripper module
24V / 5A
GND
+24V Drive
+24V Logic
GND
Connection type supply to load separate from supply to logic
NOTE
If load and logic are operated separately, always use the same
power supply!
